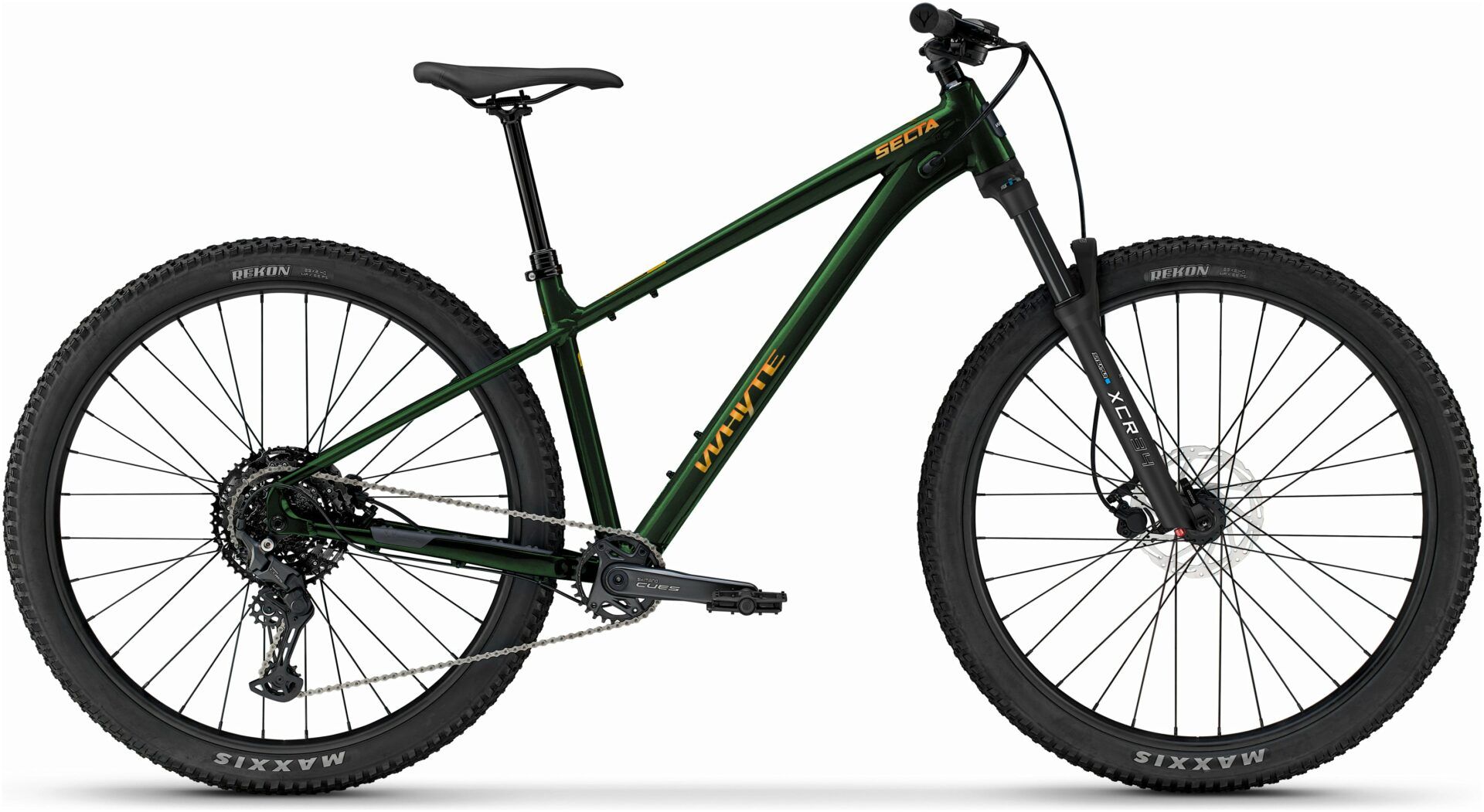

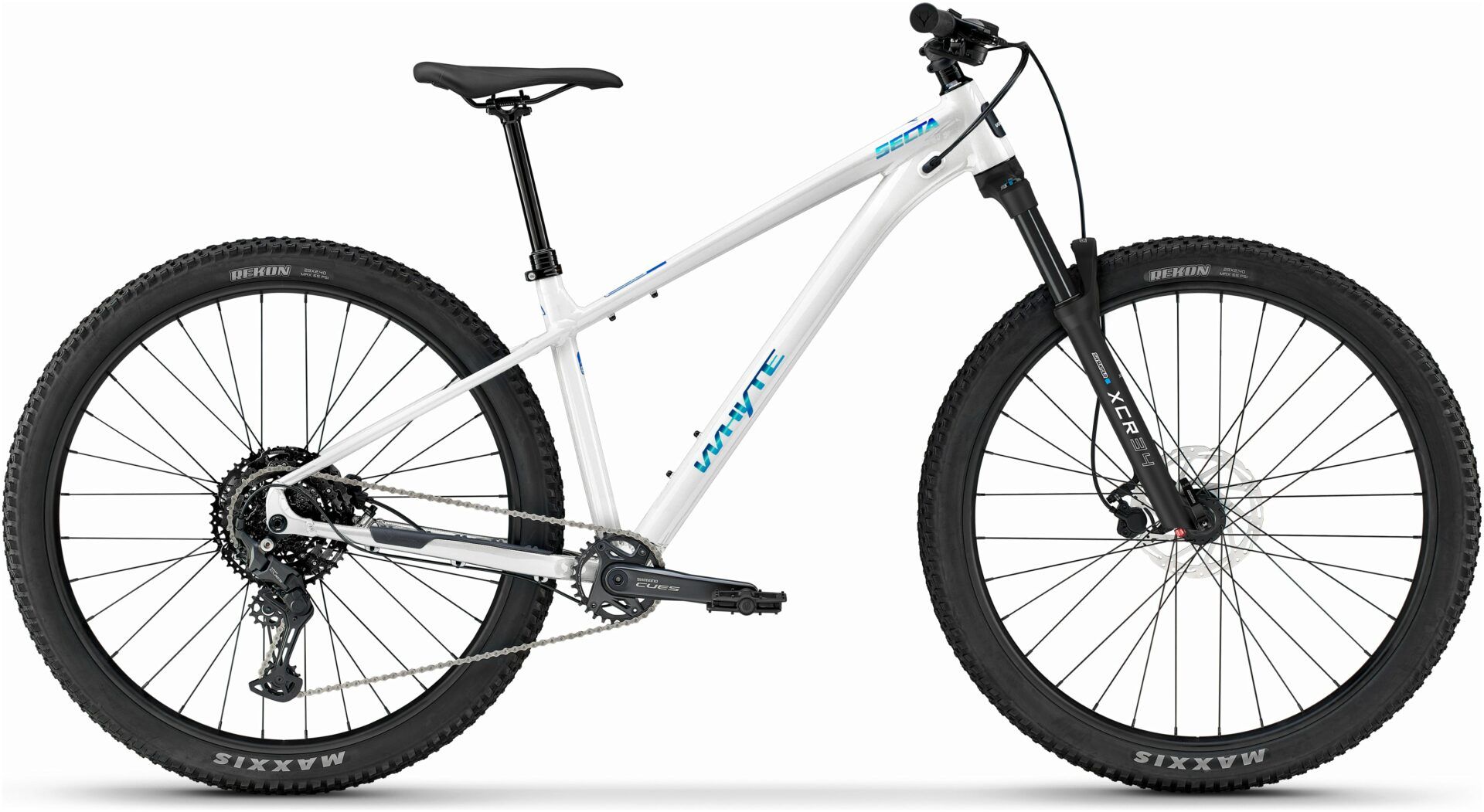

Whyte Secta R V1 Bike

Get set to get mountain biking

However you ride, Secta R is ready to help you ride your best – right from the shop floor. With the same frame as our critically praised Secta RS, the Secta R is designed to help unlock your riding in a fun, confidence-inspiring and high-value package. Its fully-featured frame, specially curated components – including a dropper seat post to give you maximum confidence on descents (letting you lower and raise the saddle as your ride at the touch of button) – and enabling handling all combine to deliver you the best mountain bike trail performance and price possible. All so you can have maximum fun on the trail – and more money in your pocket.

Highlights

• Fully featured 6061 T6 precision formed aluminium frame.<
• 130mm Suntour XCR 34 suspension fork.
• TransX full-insertion dropper post (with frame size-specific drop).
• Capable, smooth-rolling 29er wheels + Maxxis tyres.
• Shimano Cues 1x9 transmission (30T chainring x 11-46 cassette).
• Tektro two-piston hydraulic disc brakes (180mm rotors front + rear).

Capably versatile, simply fun

Secta R has been designed to give you an exhilarating and capable experience so you can turn up the fun on any trail. By blending progressive 29er trail hardtail geometry with the geometric sweet-spot of a 130mm travel short-offset fork, specially curated components and tyre choice, we've tuned Secta R to deliver you brilliantly balanced handling, everywhere. All so you can have even more fun on the trails you love – whether going all-out up tricky climbs, full-bore down techy descents, and everywhere in between.

It’s all in the frame

Secta R’s all-new frame is fully featured and lavished with intelligent details to boost your riding: a compact seatube and plenty of stand over combines with a long-stroke, full-insertion dropper post to give you all the room to maneuverer you may need. Low-down bottle cage bosses ensure a low centre of gravity and great handling – even with the extra weight of a full water bottle – so you can corner like a boss. Add in a pair of bosses under the top-tube to carry a tool or tube; a threaded BBX63 bottom bracket shell; 12mm x 148mm Boost rear dropouts, as well as SRAM UDH compatibility and with Secta R you’re all-set.

Made to last

To ensure that living with it for the long-haul is as good an experience as riding it, we’ve loaded the Secta R with all the bad-weather-beating and practical features possible to keep it running brilliantly ride after ride. External headtube cable routing and fully sealed cable runs (with weather-sealed cable ports) ensure easy to maintain and long-lasting performance; a weather-sealed seat post collar further defends against water and muck; room to fit up to a 29x2.6in rear tyre with ample mud clearance – thanks to our big-tyre friendly Single Chain Ring frame design – gives you the option to run bigger rubber; while a custom chainstay protector guards the frame from chain slap to silence your ride.

Specifications

Frame and Forks

• Frame: 6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost.
• Forks: SR Suntour XCR 34 29", 130mm travel, 44mm offset, black stanchions, air spring, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost thru axle
• Headset: ZS44 upper, ZS56 lower, 1 1/2in Lower and 1 1/8" upper caged bearings

Drivetrain

• Crankset: Shimano CUES U4000, 30 Tooth chainring, 170mm, 9 speed, 52mm chainline, three-piece crankset
• Rear Derailleur: Shimano CUES U4000, 9 speed
• Cassette: Shimano LG300, 11-46 Tooth, 9 speed
• Chain: KMC XGlide, 116 links

Braking/Shifting

• Front Brake: Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor
• Rear Brake: Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor
• Brake Levers: Tektro M285
• Shifter Levers: Shimano CUES U4000, 9 speed, Band On clamp

Wheels

• Rims: Pinned joint, 30mm internal width, tubeless ready, 32 hole
• Front Hub: Alloy, 15mm x 110mm Boost spacing, 32 hole
• Rear Hub: Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub
• Spokes: 2.0mm, black stainless, brass nipples
• Tyres: Maxxis Rekon 29 x 2.4" front and rear

Finishing Kit

• Handlebars: Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide
• Grips: Whyte Trail lock-on
• Stem: Whyte alloy, 35mm extension, 31.8mm bar bore
• Seatpost: TransX size specific dropper post, 30.9mm (size Small - Medium 150mm travel; sizes Large - X-Large 170mm travel)
• Saddle: Whyte Custom
• Pedals: Fibre reinforced composite platform
