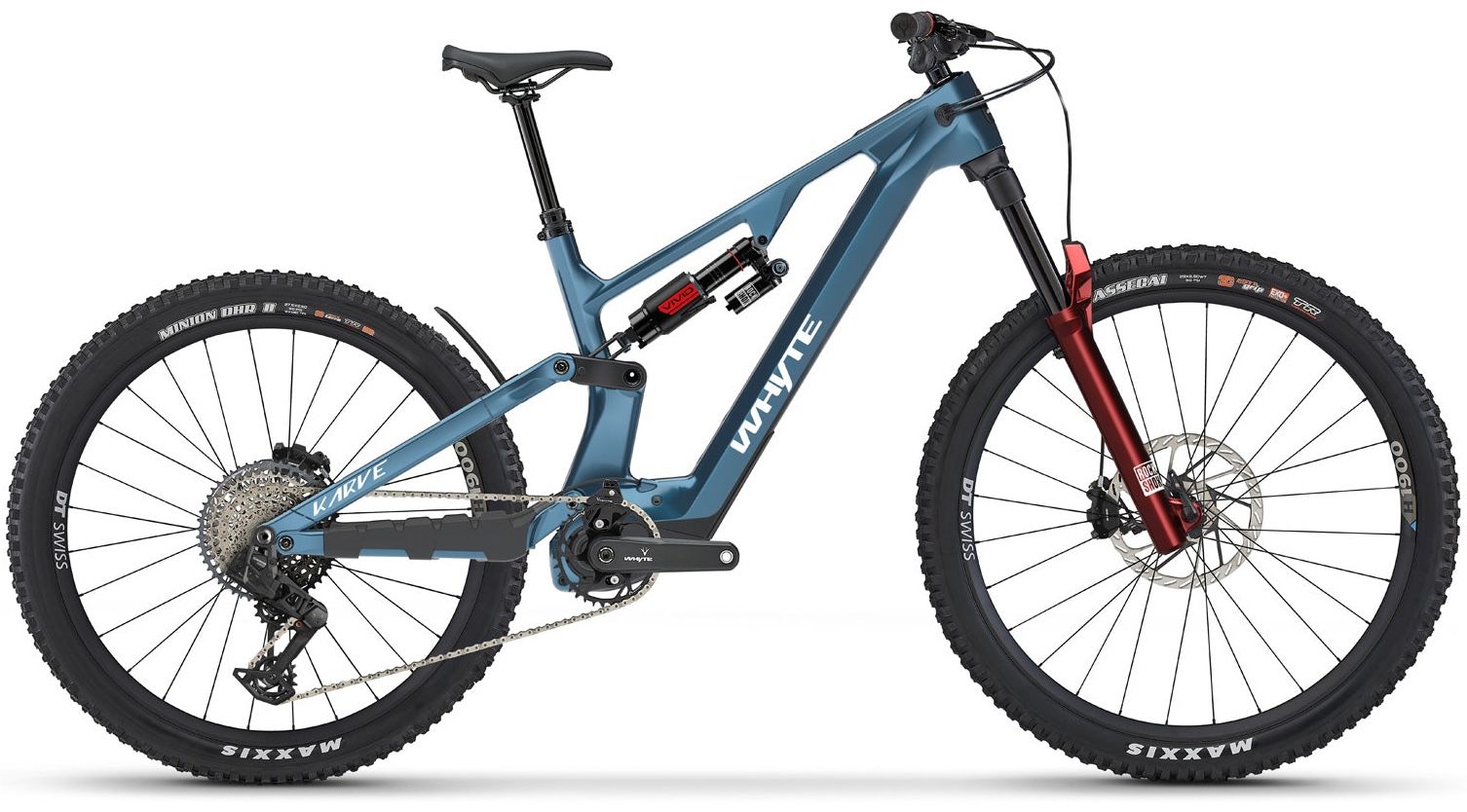

Whyte Karve Evo RSX V1 Electric Bike

The ultimate thrill ride

For the toughest tracks. The supreme self-shuttle machine. With the power of Avinox inside. Karve EVO is the chaos-crushing, climb-shrinking electric mountain bike (eMTB) for self-shuttled riding and big mountain terrain. If having the best time dropping in on the biggest terrain is why you ride, Karve EVO RSX is ready.

Highlights

• 180mm front and rear of Whyte custom-tuned suspension travel.
• Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong
• Avinox full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost) + 12A fast charger.
• SRAM AXS Eagle 1x12 transmission + SRAM Maven Silver four-piston hydraulic brakes.
• Avinox DPC100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
• 800Wh internal battery so you can get more runs in.
• DT Swiss Hybrid MX wheels (29er front, 27.5in rear) for maximum confidence on even the steepest terrain + full 29er ready.
• Fitted with RideWrap frame protection kit from the factory (85% coverage).

Specifications

Frame and Forks

• Frame: Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts, RideWrap frame protection kit fitted as standard
• Forks: RockShox ZEB Ultimate, 180mm travel, 44mm offset, Linear XL, Charger 3.2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
• Rear Shock: RockShox Vivid Ultimate RC2T, 230 x 62.5mm, custom tuned for Whyte
• Headset: ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings

Drivetrain

• Crankset: Whyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type
• Rear Derailleur: SRAM S1000 AXS Eagle, 12 speed
• Cassette: SRAM XS 1275, T-Type, 10-52 Tooth, 12 speed
• Chain: SRAM GX T-Type, 12 speed

Braking/Shifting

• Front Brake: SRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt HS2 rotors
• Rear Brake: SRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt HS2 rotors
• Brake Levers: SRAM Maven Base
• Shifter Levers: SRAM AXS Pod, right, MMX, 12 speed

Wheels

• Rims: DT Swiss Hybrid HF1900, 29" front, 27.5" rear
• Front Hub: DT Swiss Hybrid HF1900, 110mm x 15mm Boost, six bolt
• Rear Hub: DT Swiss Hybrid HF1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, six bolt
• Spokes: DT Swiss Elemental
• Front Tyre: Maxxis Assegai WT, TR, 29 x 2.5" 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead
• Rear Tyre: Maxxis Minion DHR 2 WT, TR, 27.5 x 2.5" 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound

Finishing Kit

• Handlebars: Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
• Grips: Whyte Enduro lock-on
• Stem: Whyte, 35mm extension, 35mm bar bore
• Seatpost: TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
• Saddle: Whyte Custom
• Pedals: Fibre reinforced composite platform

Electric Power

• Motor: Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost.
• Battery: Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.
• Controller: Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips.
• Charger: Charger 4A (230V)
