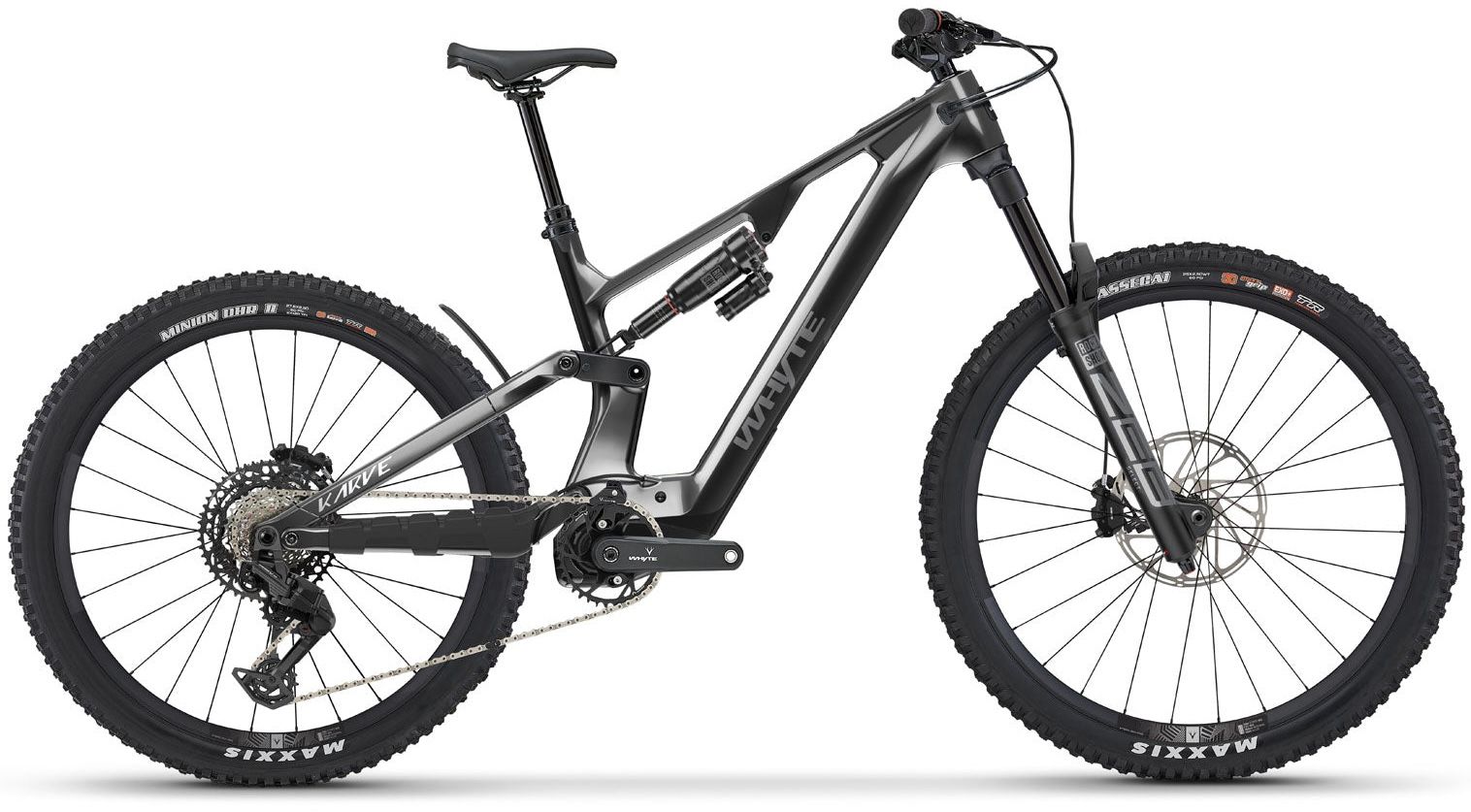

Whyte Karve Evo RS V1 Electric Bike

Exhilarating performance

Dressed to impress and packing a serious performance punch, Karve EVO RS is our most affordable, unstoppable, maximum control gravity thrill machine for self-shuttled riding, bike park play, and big mountain terrain. Engineered with the confidence, capability and control to enable you to master the toughest tracks, the power to shuttle effortlessly, and the range to drop in again, and again, and again... If the biggest terrain is your playground, Karve EVO RS is your access all areas pass.

Highlights

• 180mm front and rear of Whyte custom-tuned suspension travel.
• Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong.
• Avinox full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost)
• SRAM Eagle 70 mechanical T-Type 1x12 transmission + SRAM Maven Base four-piston hydraulic brakes.
• Avinox DPC100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
• 800Wh internal battery so you can get more runs in.
• MX wheels (29er front, 27.5in rear) for maximum confidence on even the steepest terrain + full 29er ready.

Specifications

Frame and Forks

• Frame: Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts
• Forks: RockShox ZEB Select, 180mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
• Rear Shock: RockShox Super Deluxe Select RT, DebonAir, Fast Black coating, adjustable rebound, 230 x 62.5mm, custom tuned for Whyte
• Headset: ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings

Drivetrain

• Crankset: Whyte 155mm long ISIS crank arms, SRAM direct mount, 36 Tooth chainring, T-Type
• Rear Derailleur: SRAM Eagle 70 T-Type mechanical, 12 speed
• Cassette: SRAM XS 1270, T-Type, 10-52 Tooth, 12 speed
• Chain: SRAM Eagle 70, 12 speed

Braking/Shifting

• Front Brake: SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotors
• Rear Brake: SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt Centreline rotors
• Brake Levers: SRAM Maven Base
• Shifter Levers: SRAM Eagle 90, 12 speed

Wheels

• Rims: Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front, 27.5" rear
• Front Hub: Whyte eMTB sleeved rims, 30mm internal width, tubeless ready
• Rear Hub: Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub
• Spokes: 14g stainless black, brass nipples
• Front Tyre: Maxxis Assegai WT, TR, 29 x 2.5" 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead
• Rear Tyre: Maxxis Minion DHR 2 WT, TR, 27.5 x 2.5" 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound

Finishing Kit

• Handlebars: Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
• Grips: Whyte Enduro lock-on
• Stem: Whyte, 35mm extension, 35mm bar bore
• Seatpost: TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
• Saddle: Whyte Custom
• Pedals: Fibre reinforced composite platform

Electric Power

• Motor: Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost.
• Battery: Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.
• Controller: Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips.
• Charger: Charger 4A (230V)
