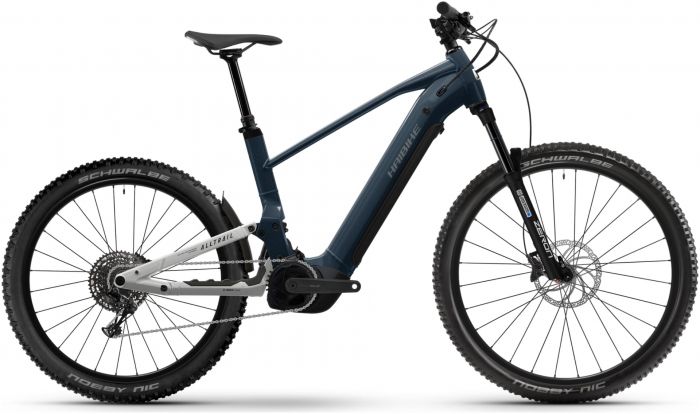

Haibike Alltrail 4 2026 Electric Bike
| Brand | Haibike |
|---|---|
| Battery | 600Wh |
| Colour | Glossy Nebular Royal Blue / Silver |
| Suitable for | Everyone |
| Wheel Size | 27.5-inch Rear, 29-inch Front |
Welcome to the world of eFully adventures! Haibike's new HAIBIKE ALLTRAIL 4 bridges the gap between hardtail and full-suspension trail bike - perfect for anyone seeking comfort without going full enduro. With 130mm travel front and rear, the SR Suntour suspension offers just the right amount of control and riding fun. The sturdy aluminium frame carries loads up to 150kg and performs well even with luggage. The latest Bosch Performance Line CX motor and 600Wh battery provide powerful, lasting support for your tours. The mullet wheel setup - 29" front, 27.5" rear - delivers smoothness and agility in one. A dropper post and reliable four-piston disc brakes complete the package. In short: the ALLTRAIL 4 is your entry into the eFully world - comfortable and ready for any trail adventure, big or small.
Features
- Alloy Frame
- Suntour Zeron36X EQ 130mm Fork
- Suntour Edge XR Rear Shock
- Bosch Performance Line CX Motor
- 600Wh Powertube battery
Specification
Frame and Forks
- Forks: SF26-ZERON36X-Boost-Air-R-DS 130mm
- Headset: BlockLock 135° AZX-220-R4 ZS44/ZS56
- Rear Shock: Edge X R 185 x 55mm - Trunnion M8 x 40 - SV
Drivetrain
- Crankset: CR-E18 Crankarms + SRAM CR T-Type Bosch DU38, DM
- Chainguide: WI-38L-95 Chainguide
- Rear Derailleur: NX Eagle 12s
- Cassette: PG-1210 Eagle, HG
- Chain: NX Eagle 12s
Braking/Shifting
- Rear Shifter: SX Eagle Single Click Trigger
- Front Brake: HD-M535, 4 Pistons, Resin Pad, 203mm
- Rear Brake: HD-M535, 4 Pistons, Resin Pad, 203mm
- Front Rotor: TR203-53 203mm, 6 Bolt Disc
- Rear Rotor: TR203-53 203mm, 6 Bolt Disc
- Brake Levers: HD-M535-BL
Wheels
- Rims: WR-M39 Disc 30/622 32 Hole 6,5mm Valve
- Front Hub: HF-M15 Boost 15 x 110mm, 32H, 6 Bolt Disc
- Rear Hub: HR-M15 Boost 12 x 148mm, 32H, 6 Bolt Disc, HG
- Spokes: Sapim
- Tyres: Nobby Nic Performance, Folding, ADDIX, 67EPI
Finishing Kit
- Handlebars: HB-M32, Dia. 31.8mm, Rise: 20mm, Backsweep 9°
- Handlebar Width: 780mm
- Grips: MTB Grip Set VLG-1751D2
- Stem: ST-M50, Dia. 31.8mm, L: 40mm, A-Head
- Stem Length: 40mm
- Seatpost: Dropper SP-T21, Dia. 34.9mm, Travel: 100mm
- Saddle: SA-S10 143mm Sport
- Pedals: Flat Pedal PD-M29 with Reflector + Integrated Pins
Electric Power
- Motor: Performance Line CX
- Battery: InTube 600 Wh
- Battery Charger Type: Charger 4A 220-240V
- Display: Purion 200
