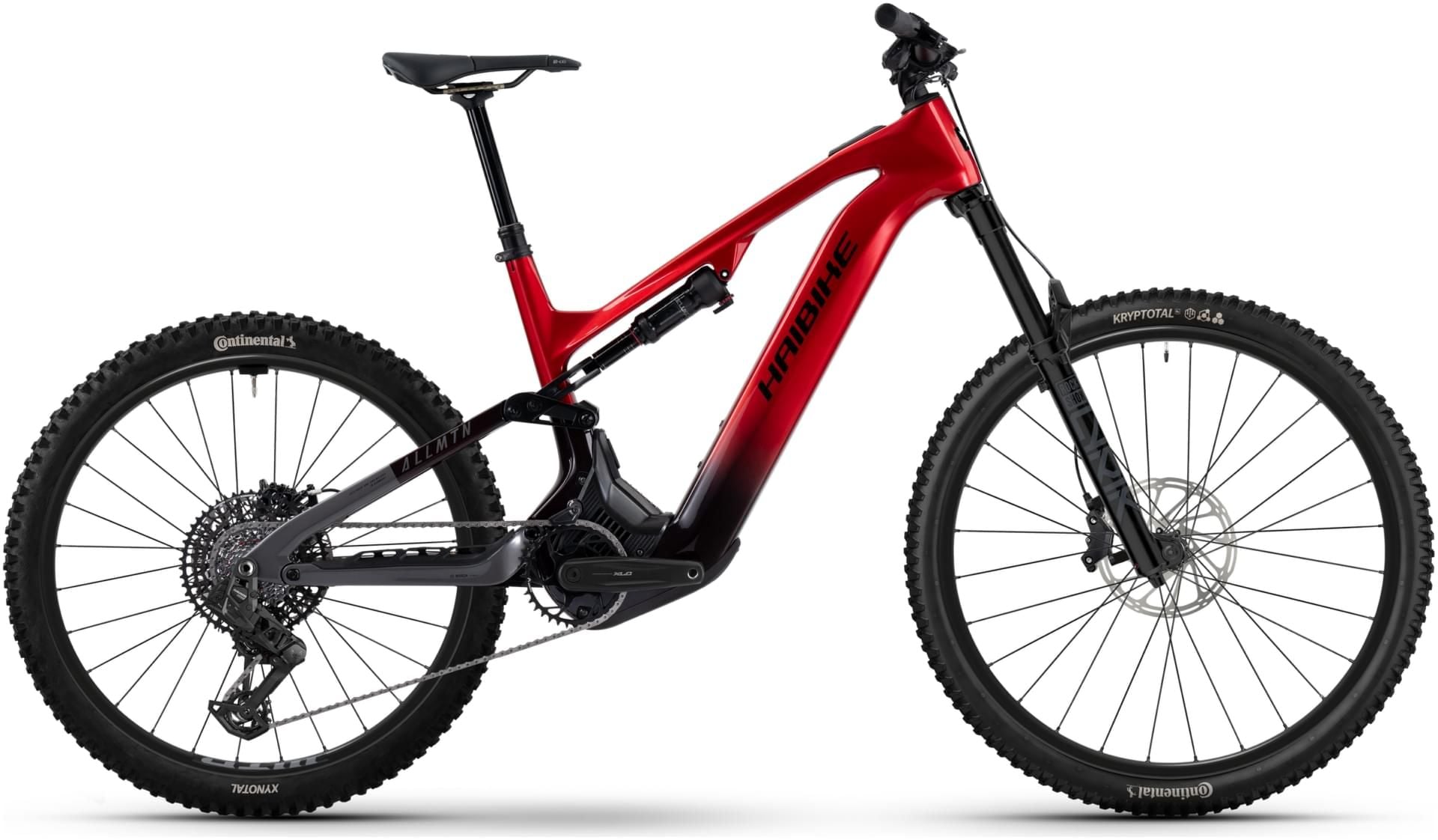

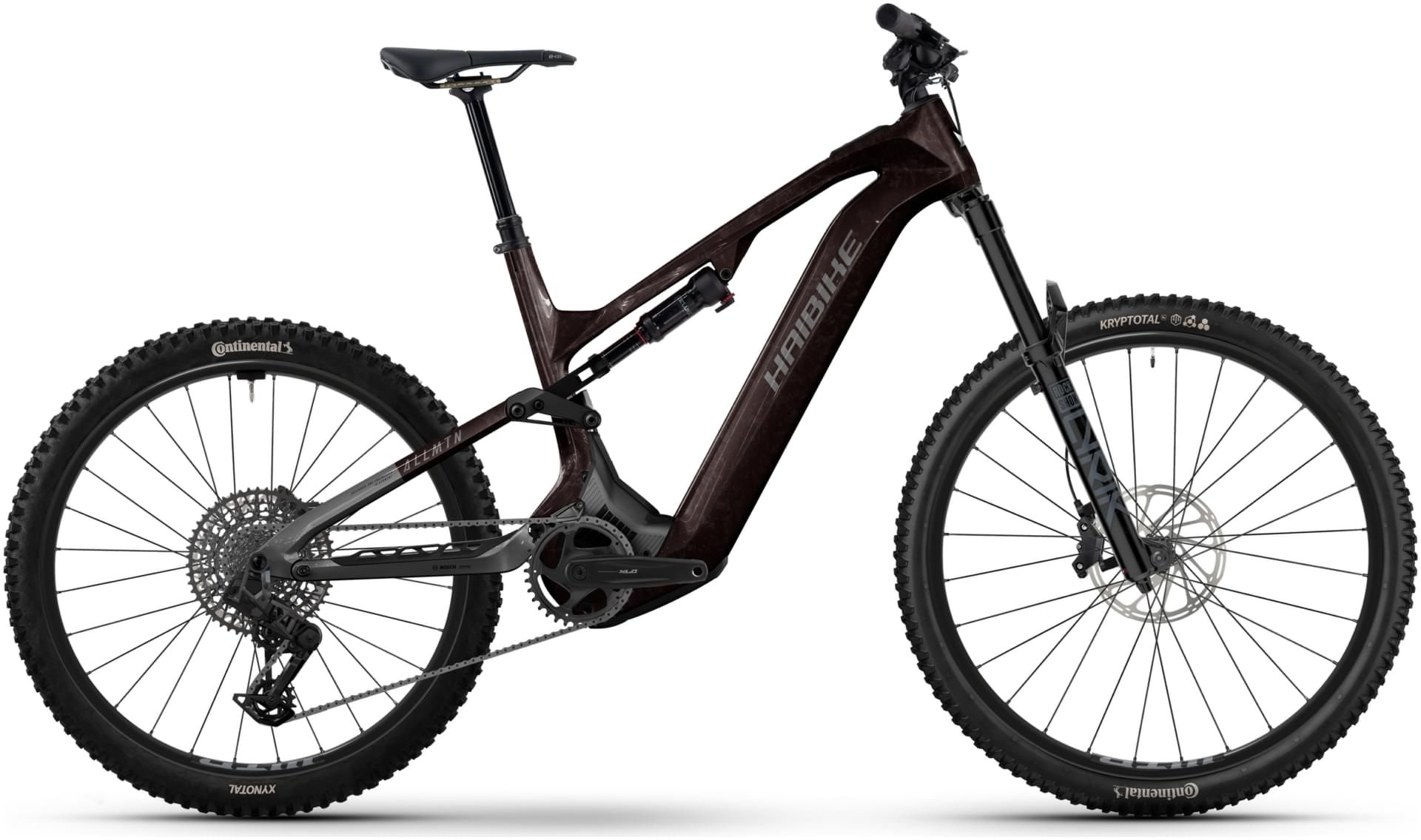

Haibike ALLMTN CF 9 2026 Electric Bike
| Brand | Haibike |
|---|---|
| Battery | 800Wh |
| Suitable for | Everyone |
| Wheel Size | 29-inch |
Maximum power through the mountains. That's what the HAIBIKE ALLMTN CF 9 delivers - down to the last bolt. A sporty E-MTB that impresses with peak all-mountain performance and clever engineering. To get the most out of the powerful Bosch Performance CX drive system, Haibike have mounted the motor inverted inside the carbon frame. This allows for improved heat management and greater efficiency when your rides get serious. A purpose-built kinematic system with a horizontal shock, together with the mullet wheel mix and the 160mm RockShox fork, turns rough downhill sections into smooth forest trails. The 800Wh battery offers lasting power and can be extended by 250Wh with an optional range extender. Grippy SRAM DB8 disc brakes round off this strong all-mountain setup. Perfect conditions for alpine adventures with maximum power.
Features
- Carbon Frame
- Rockshox Lyrik base 160mm Fork
- Rockshox Deluxe Select + Rear Shock
- Bosch performance Line CX Motor
- 800Wh Powertube battery
Specification
Frame and Forks
- Forks: Lyrik Base Rush RC, DebonAir+ 160mm
- Headset: ICR Top Cup / Bottom BlockLock ZS56/ZS56
- Rear Shock: Deluxe Select+ RT 230 x 60mm, Standard, DebonAir+
Drivetrain
- Crankset: CR-E18 CRNKS + SRAM CR T-Type Bosch DU38, DM
- Chainguide: WI-38L-95 Chainguide
- Rear Derailleur: S1000 Eagle AXS T-Type 12s, Wireless
- Cassette: XS-1275 Eagle T-Type, XD
- Chain: GX Eagle T-Type 12s
Braking/Shifting
- Rear Shifter: AXS Pod Controller
- Front Brake: DB8 Stealth, 4 Pistons, 220mm
- Rear Brake: DB8 Stealth, 4 Pistons, 200mm
- Front Rotor: DB Rotor Centerline 220 / 200mm, 6 Bolt Disc
- Rear Rotor: DB Rotor Centerline 220 / 200mm, 6 Bolt Disc
- Brake Levers: DB8 Stealth-BL
Wheels
- Rims: WR-M49 SL Disc 30/622 32 Hole 6,5mm Valve
- Front Hub: HF-M55 Boost 15 x 110mm, 32H, 6 Bolt Disc
- Rear Hub: HR-M55 Boost 12 x 148mm, 32H, 6 Bolt Disc, XD
- Spokes: Sapim
- Tyres: Kryptotal-Fr, Enduro Soft, Foldable Skin SL
Finishing Kit
- Handlebars: HB-M34, Dia. 35mm, Rise: 20mm, Backsweep 9°
- Handlebar Width: 800mm
- Grips: GR-S34 Gravity Grip
- Stem: ST-M50, Dia. 35mm, L: 40mm, A-Head
- Stem Length: 40mm
- Seatpost: Dropper SP-T21, Dia. 34.9mm, Travel: 125mm
- Saddle: Proxim W450 Performance 145mm
- Pedals: Flat Pedal PD-M29 with Reflector + Integrated Pins
Electric Power
- Motor: Performance Line CX
- Battery: InTube 800Wh
- Battery Charger Type: Charger 4A 220-240V
- Display: Kiox 400C + Mini Remote
