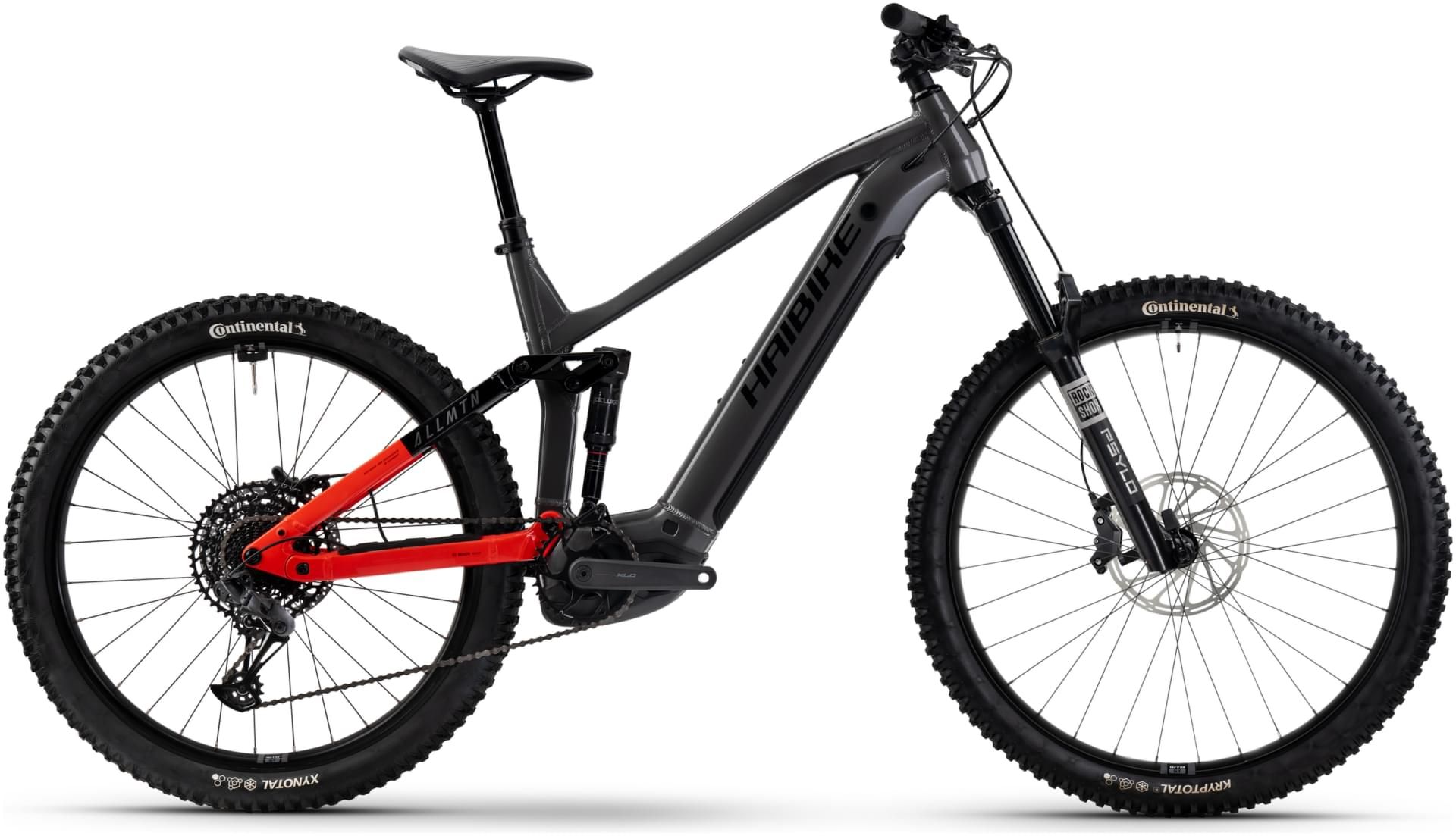

Haibike ALLMTN 4 2026 Electric Bike
| Brand | Haibike |
|---|---|
| Battery | 800Wh |
| Colour | Glossy Silver / Red / Black |
| Suitable for | Everyone |
| Wheel Size | 29-inch |
A rush of altitude and valley flow in one ride. Haibike's HAIBIKE ALLMTN 4 bursts with riding fun - even when heading up high. That's why Haibike have equipped this all-mountain fully with a specially developed aluminium frame that strikes the perfect balance between weight saving, comfort and stiffness with its distinctive design. On top of that comes a strong component mix: the powerful Bosch Performance CX drive system with 800Wh battery and optional range extender lets you enjoy even long mountain rides without limits. Thanks to 160mm front and 150mm rear travel, you can go full throttle on the descents. And with SRAM gear components, you'll always be in the right gear. In short: the ideal E-MTB for rides where alpine thrills and downhill fun go hand in hand.
Features
- Alloy Frame
- Rockshox Psylo Gold RC 160mm Fork
- Rockshox Deluxe Select + Rear Shock
- Bosch Performance Line CX Motor
- 800Wh Powertube battery
Specification
Frame and Forks
- Forks: Psylo Gold RC, Crown Adj, DebonAir 160mm
- Headset: BlockLock 135° AZX-220-R4 ZS44/ZS56
- Rear Shock: Deluxe Select R 205 x 65mm, Trunnion, DebonAir
Drivetrain
- Crankset: CR-E18 CRNKS + SRAM CR T-Type Bosch DU38, DM
- Chainguide: WI-38L-95 Chainguide
- Rear Derailleur: Eagle 70 T-Type 12s
- Cassette: XS-1270 Eagle T-Type, HG
- Chain: Eagle 70 T-Type 12s
Braking/Shifting
- Rear Shifter: Eagle 70 T-Type Single Click Trigger
- Front Brake: DB8 Stealth, 4 Pistons, 200mm
- Rear Brake: DB8 Stealth, 4 Pistons, 203mm
- Front Rotor: DB Rotor Centerline 200 / 203mm, 6 Bolt Disc
- Rear Rotor: DB Rotor Centerline 200 / 203mm, 6 Bolt Disc
- Brake Levers: DB8 Stealth-BL
Wheels
- Rims: WR-M39 Tryp EVO Disc 30/622 32 Hole 6,5mm Valve
- Front Hub: HF-M15 Boost 15 x 110mm, 32H, 6 Bolt Disc
- Rear Hub: HR-M15 Boost 12 x 148mm, 32H, 6 Bolt Disc, HG
- Spokes: Sapim
- Tyres: Kryptotal-Fr, Trail Endurance, TR
Finishing Kit
- Handlebars: HB-M34, Dia. 35mm, Rise: 20mm, Backsweep 9°
- Handlebar Width: 800mm
- Grips: GR-S34 Gravity Grip
- Stem: ST-M50, Dia. 35mm, L: 40mm, A-Head
- Stem Length: 40mm
- Seatpost: Dropper SP-T21, Dia. 34.9mm, Travel: 125mm
- Saddle: SA-S10 143mm Sport
- Pedals: Flat Pedal PD-M29 with Reflector + Integrated Pins
Electric Power
- Motor: Performance Line CX
- Battery: InTube 800Wh
- Battery Charger Type: Charger 4A 220-240V
- Display: Purion 200
