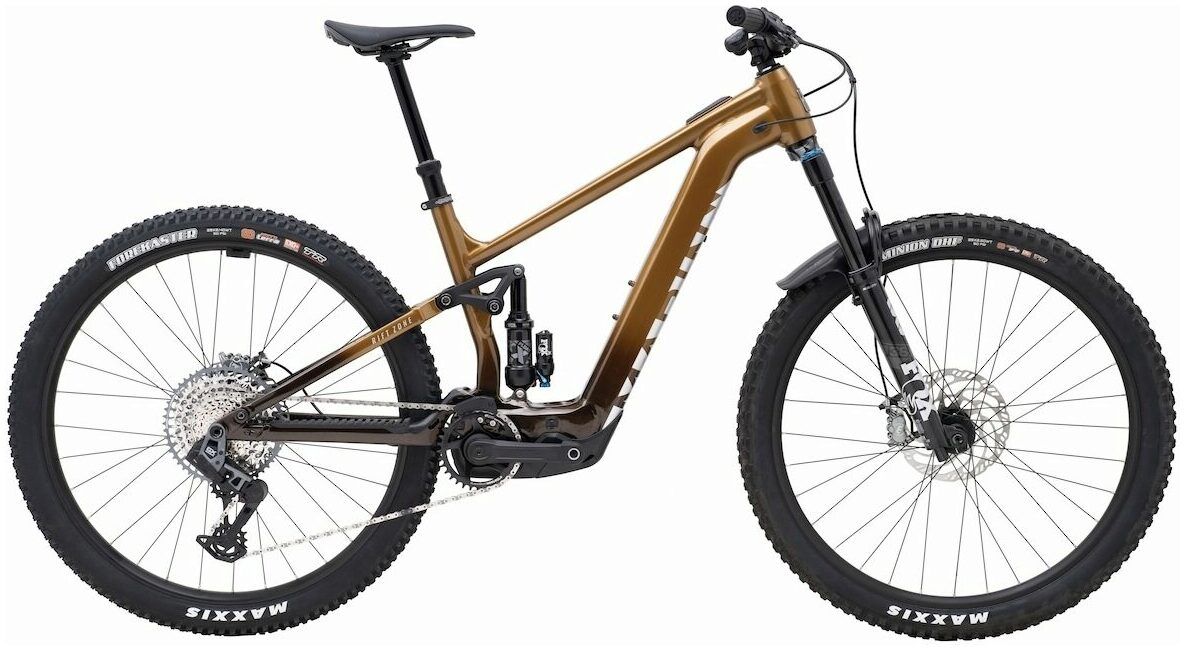

Marin Rift Zone EL XR 2026 Electric Bike
| Brand | Marin |
|---|---|
| Battery | 400Wh |
| Colour | Tan Brown |
| Suitable for | Everyone |
| Wheel Size | 29-inch |
Marin's all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone formula and repurposes it into bikes that share the capability as the full-powered versions, but in lighter-weight packages. Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride, with a power delivery so natural you might forget it's an ebike. All of the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.
Specification
Frame and Forks
- Frame: All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
- Fork: Fox 36 Performance Elite, 150mm Travel, 29", 110 x 15mm Kabolt, 44mm Offset
- Rear Shock: Fox Float X, Performance Elite, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210 x 55mm, 25xM8 Upper Mount, No Lower DU Or Hardware
- Headset: FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
Drivetrain
- Crankset: E*Thirteen E*Spec Plus Carbon, 160mm Length, 34 Tooth
- Rear Derailleur: SRAM GX AXS T-Type
- Cassette: SRAM CS-XS-1275 T-Type, 10-52 Tooth
- Chain: SRAM GX T-Type
Braking/Shifting
- Shifters: SRAM AXS Pod
- Front Brake: Magura MT7 With HC3 Lever, 4 Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor
- Rear Brake: Magura MT7 With HC3 Lever, 4 Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor
- Brake Levers: Magura MT7 With HC3 Lever
Wheels
- Rims: Marin Aluminium Double Wall, 29" Diameter, 32mm Inner Rim Width, Welded Joint, Disc Specific, Tubeless Compatible
- Front Hub: Formula DCL-3482, 4 Sealed Bearings, 148 x 12, XD Driver, 6-Bolt, 32 Hole
- Rear Hub: Formula DC-711, 110 x 15, 6-Bolt, 32 Hole
- Spokes: 14 Gauge Black Stainless Steel
- Tyres: Front: Maxxis Minion DHF, 29 x 2.5" MAXXGRIP, Tubeless Ready, EXO+, Rear: Maxxis Forecaster 29 x 2.4", Tubeless Ready MAXX TERRA EXO+
Finishing Kit
- Handlebars: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
- Grips: Marin Grizzly Lock-On
- Stem: Marin CNC, 35mm Length, 35mm Bar Bore
- Seatpost: TranzX, YSI08 FL, 1x Remote,, 5mm Micro Adjust Up To 25mm, Size S 150mm Travel, Size M And L 170mm Travel, Size XL 200mm Travel, 34.9mm
- Saddle: Marin Speed Concep Tooth
- Pedals: Marin MTB Plastic
Electric Power
- Motor: Bosch Performance Line SX, 600W, 55Nm
- Battery: Bosch 400 Wh Internal
- Display: Bosch BRC3100 Systems Controller
- Switch: Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
- Max Range: 15-55 Miles/25-90km
