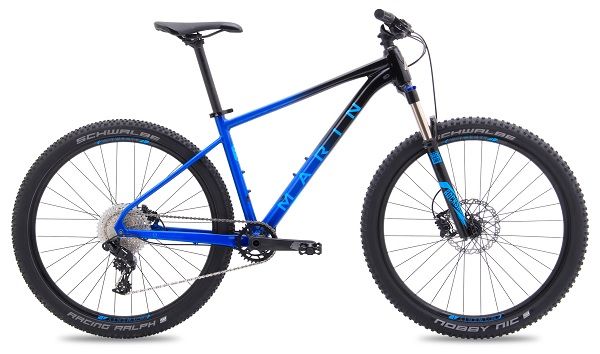

Marin Nail Trail 6 27.5-Inch 2017 Bike - Black/Navy 20" - Nearly New
| Brand | Marin |
|---|---|
| Colour | Black/Navy |
| Frame Sizes | 20" |
| Wheel Size | 27.5-inch |
Please note:

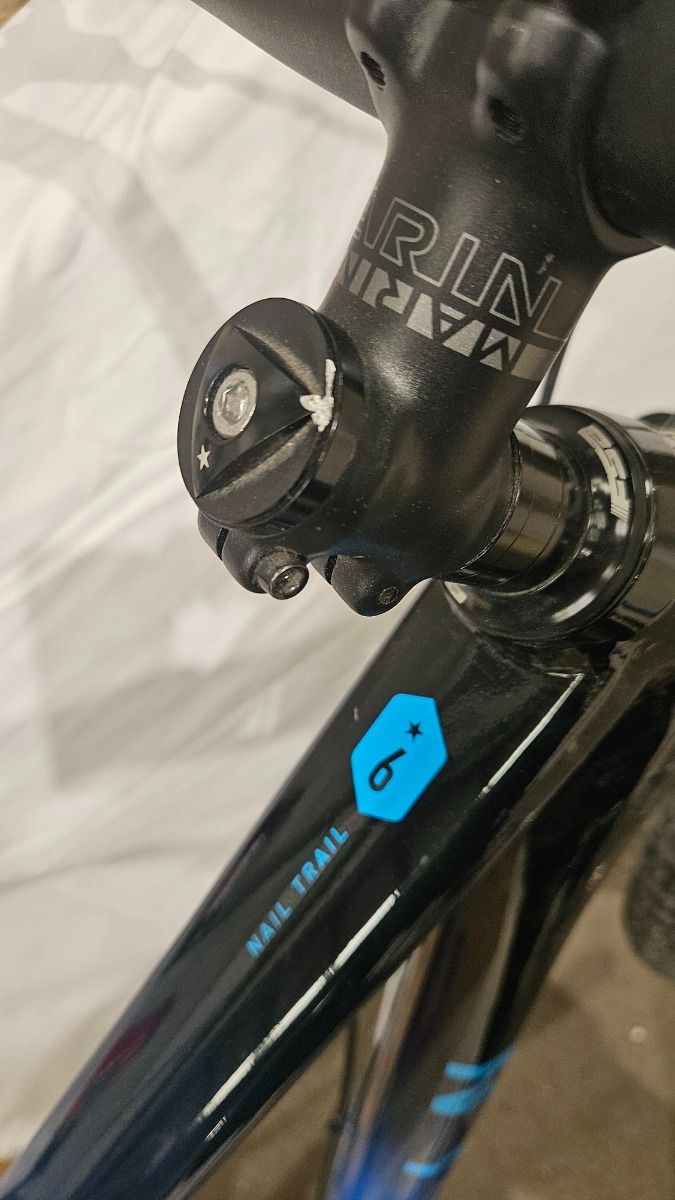

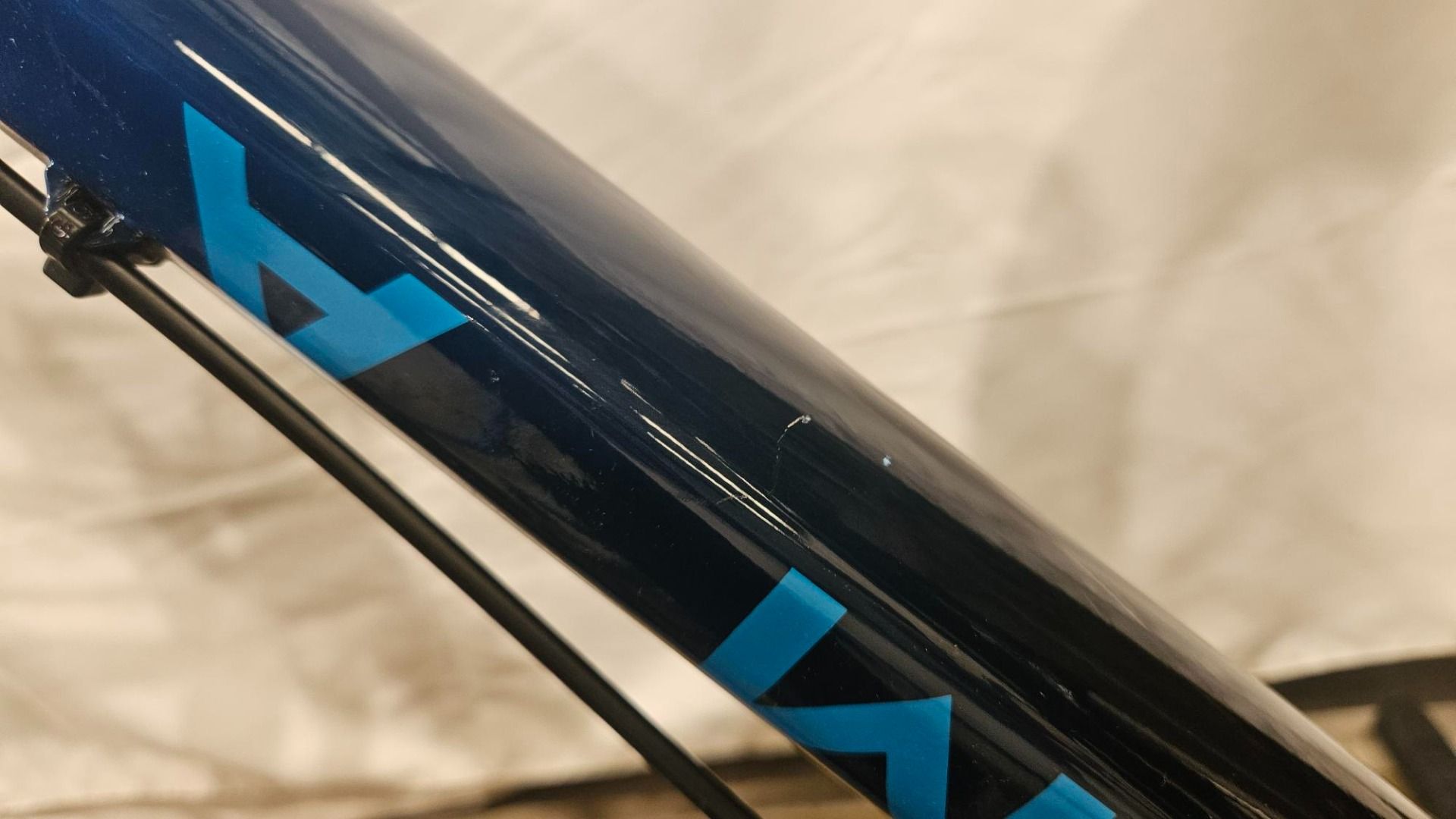

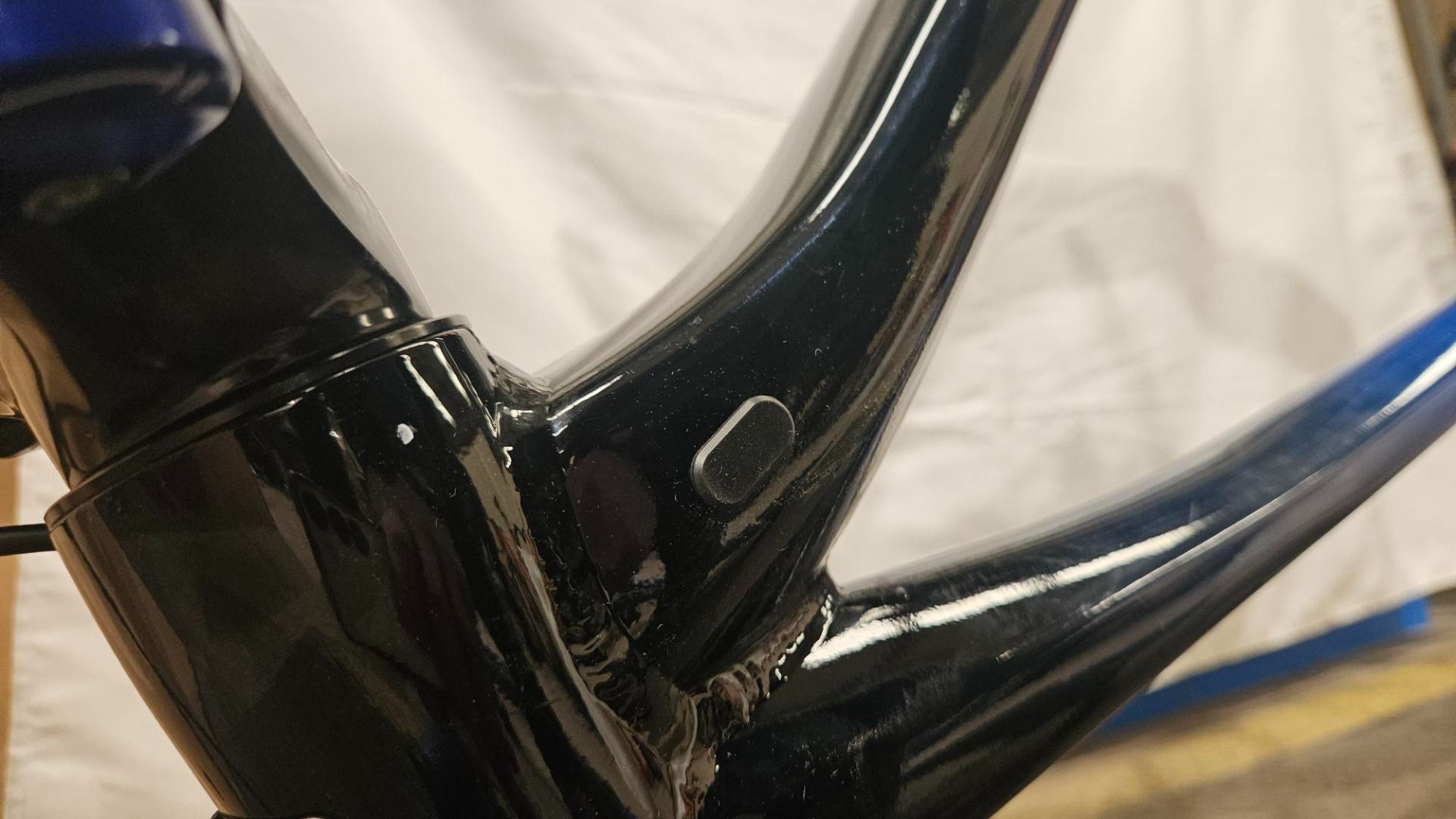

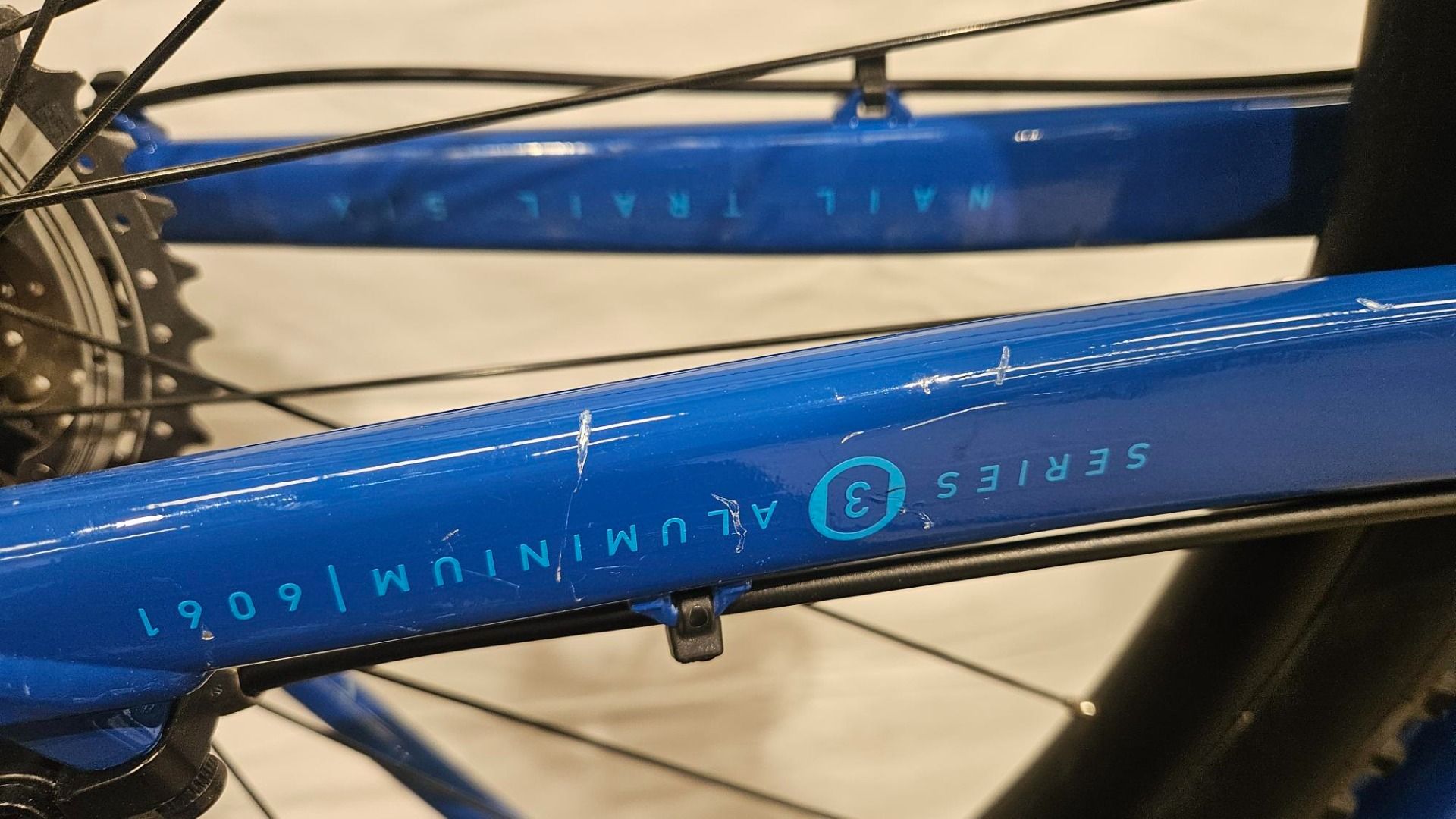

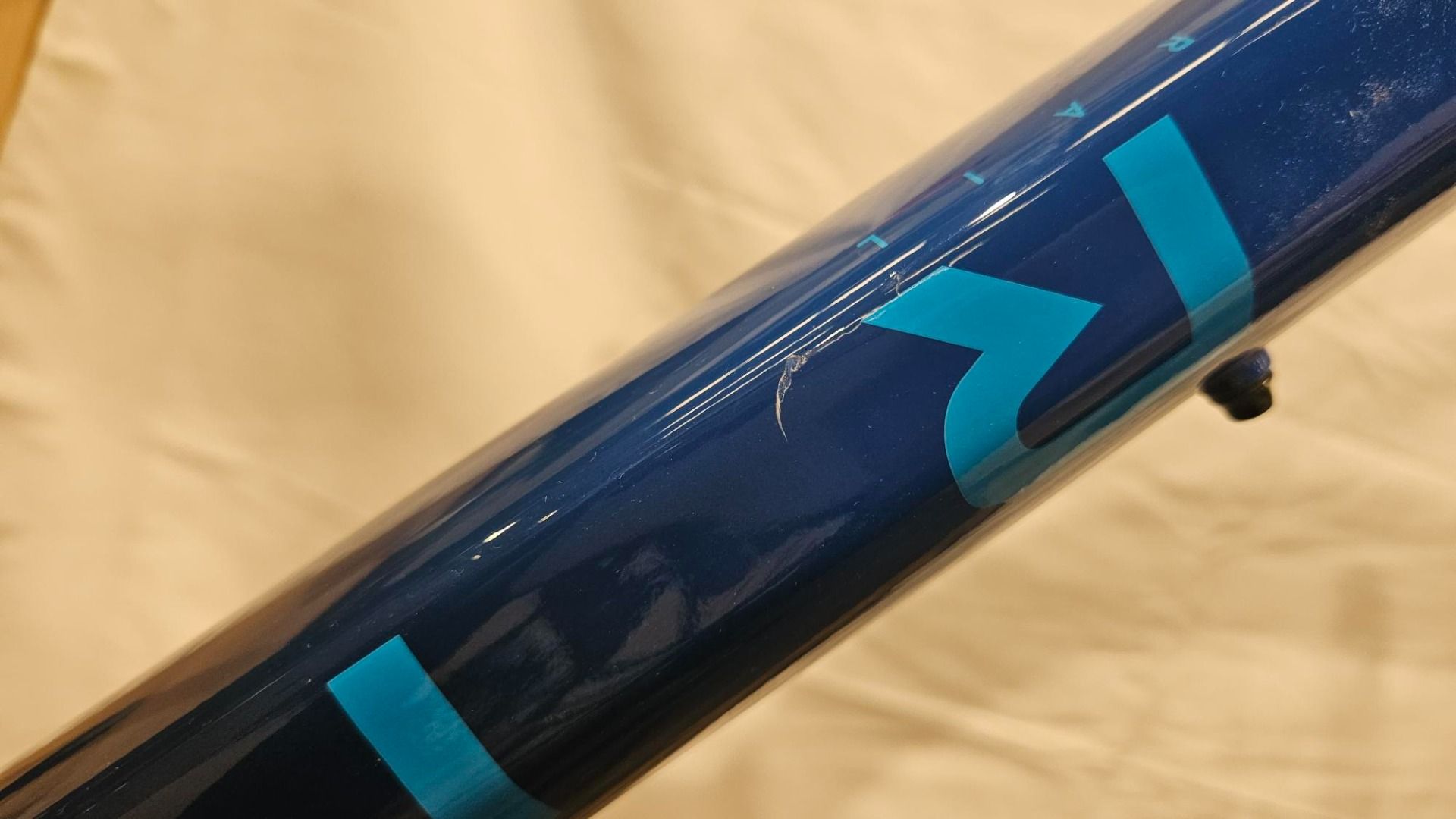

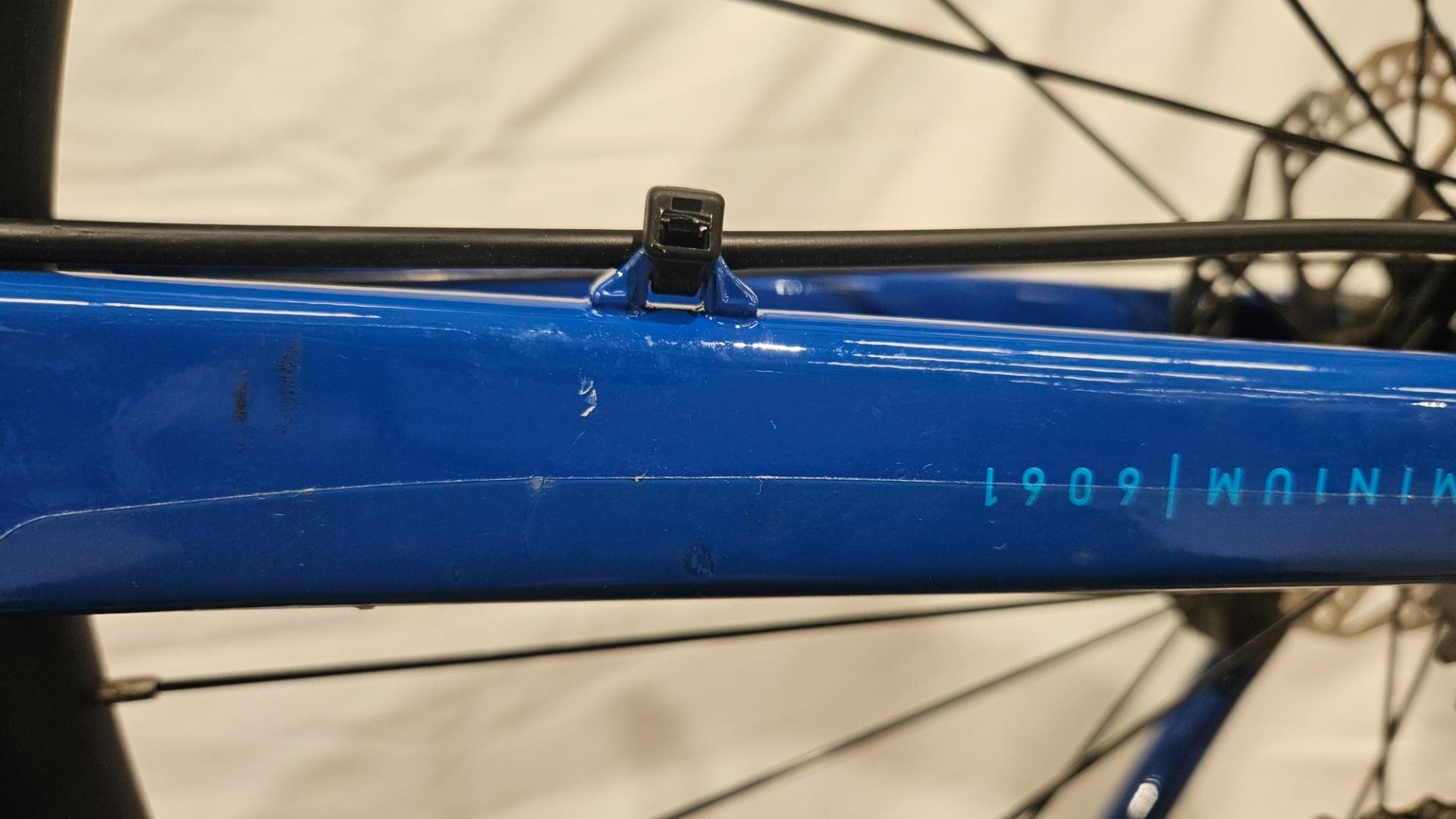

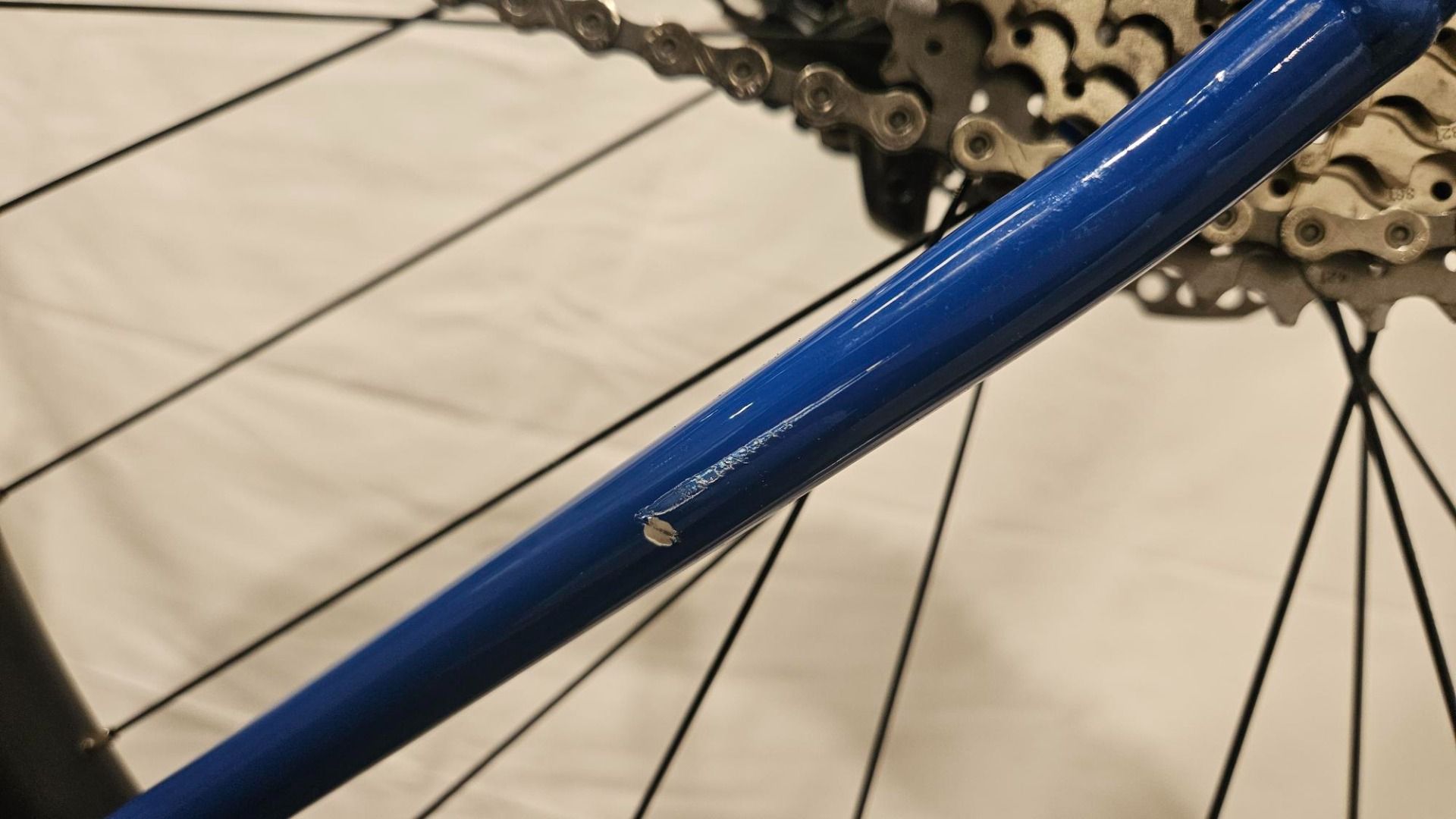

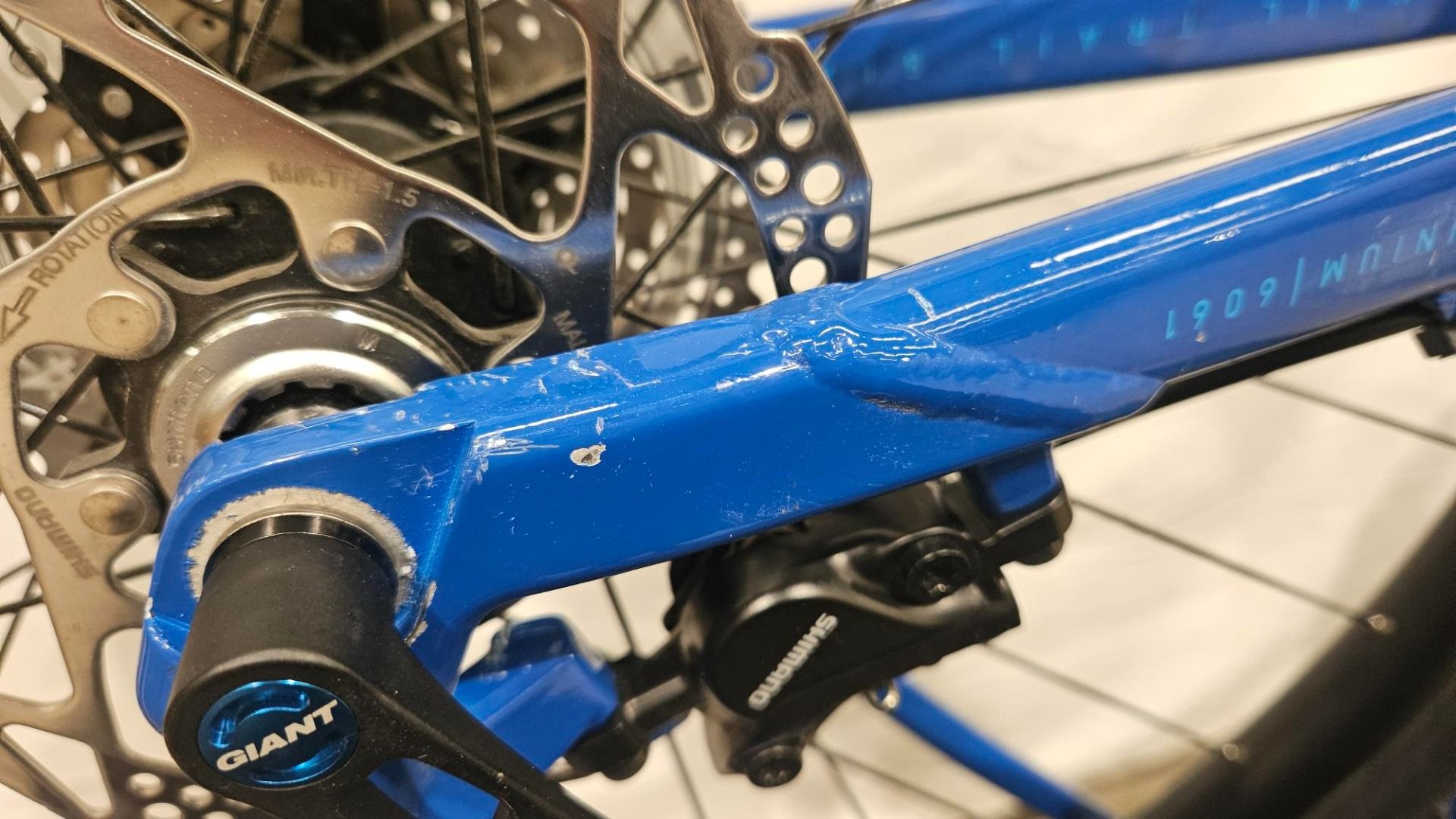

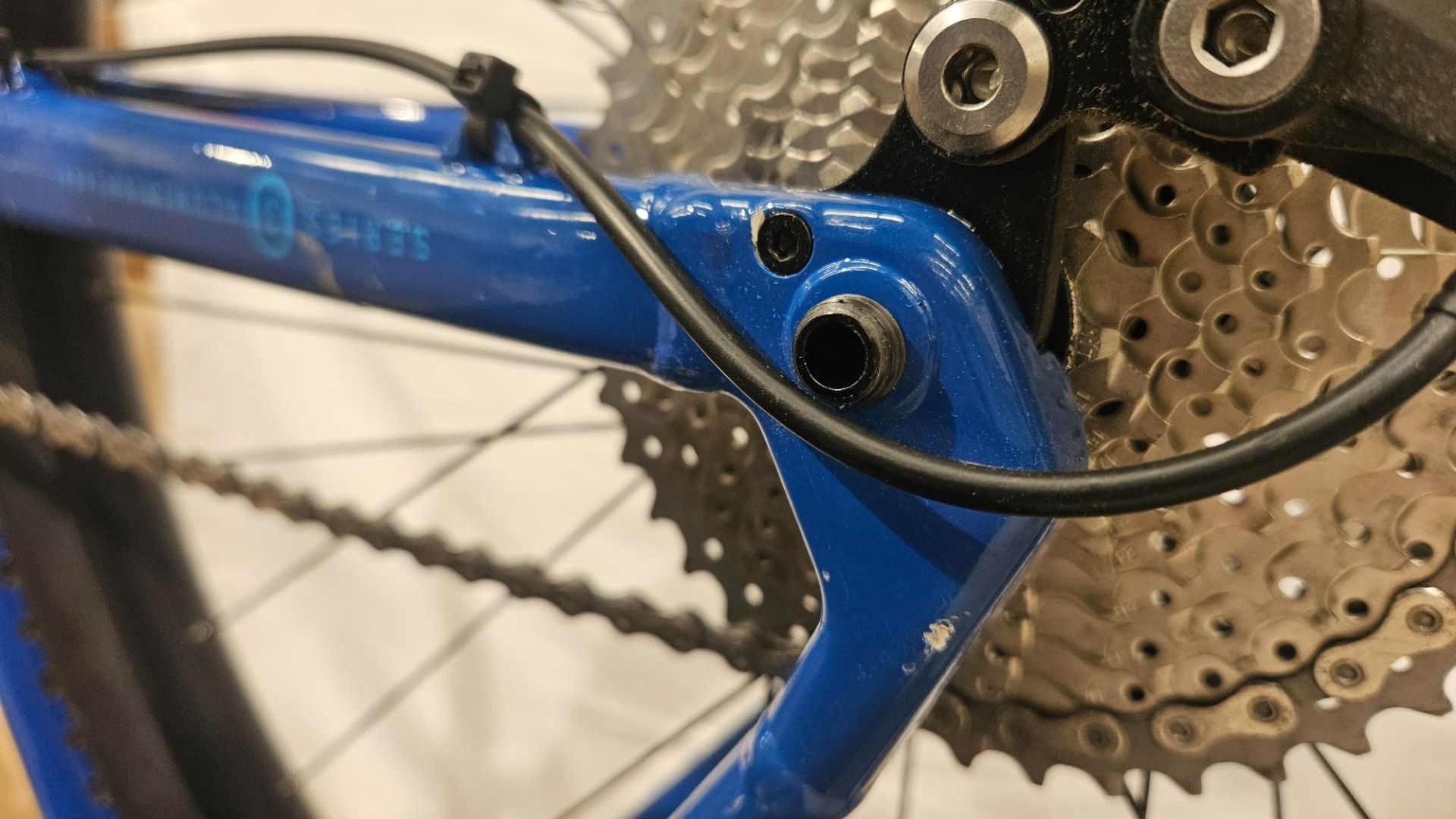

Paint damage, top cap is damaged, rear axle is not original and protrudes through the frame (works fine). PDI done NO PEDALS.
"Longer, lower, slacker" is the mantra for the updated Nail Trail line this year.
The advanced Series 3 double butted aluminium frame features internal cable routing and a 142x12mm rear thru-axle, along with modern trail-focused geometry. With a low BB, slack head angle and longer reach, you can achieve some real speed and flow on the trails with this setup.
Drivetrain duties are handled by a wide-range SRAM NX 1x11 system, while the wheelset features tubeless-ready rims with 29mm inner width, fitted with Schwalbe performance tyres. A RockShox Recon Silver fork smooths out the ride, while Shimano hydraulic disc brakes help keep speed in check.
This bike is supplied with a standard seatpost, but should you choose to pimp your ride and upgrade to a dropper post, you have the option of internal routing.
Frame
Frame: Series 3 6061 aluminium, double butted frame w/h 142x12mm thru-axle
Fork: RockShox Recon Silver RL 27.5"
Drivetrain
Crankset: Marin forged alloy 1x10, hollow spindle, steel narrow-wide 32T chainring, 76mm BCD
Rear derailleur: SRAM NX 11-speed
Shifters: SRAM NX 1x11-speed
Cassette: Sunrace 11-speed, 11-42T
Bottom Bracket: External sealed cartridge bearings
Chain: SRAM 110 11-speed
Braking
Front Brake: Shimano BR-M445 hydraulic disc, 180mm Centerlock rotor
Rear Brake: Shimano BR-M445 hydraulic disc, 160mm Centerlock rotor
Brake Levers: Shimano BL-445 hydraulic
Wheels
Front Hub: Formula, 142x12mm, quad sealed cartridge bearings, alloy axle, Centerlock disc, 32H
Rear Hub: Formula, 100x15mm, sealed cartridge bearings, Centerlock disc, 32H
Rim: Marin aluminium double wall, 27mm inner, pinned joint, disc specific, tubeless compatible
Tyres: Schwalbe Nobby Nic Performance 27.5"
Components
Handlebars: Marin Mini-Riser, 6061 double butted aluminium, 780mm width, 4º up, 9º back
Grips: Marin Lock-on
Stem: Marin 3D forged alloy
Headset: FSA Orbit, sealed cartridge bearings, 1 1/8
Seatpost: Marin alloy light
Saddle: Marin MTB
Pedals: Resin platform
