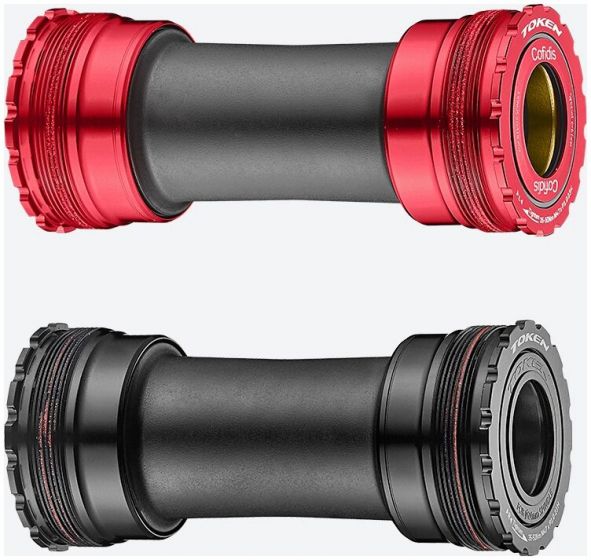

Token BB47V24 TBT T47 Inboard Bottom Bracket

The BB47 series bottom brackets are designed to work with T47 frames. They feature our ceramic TBT or Premium bearings and are protected with the highly water-resistant X-seals to keep the bottom bracket running smoothly.

Technology

X-Seal

TOKEN’s X-Seal technology keeps bearings protected from dirt and water, with very little friction for a free-spinning bearing.

TBT Bearing

TBT bearings are made with ceramic balls and extremely hard races for very low rolling resistance and long-lasting performance.

Specifications

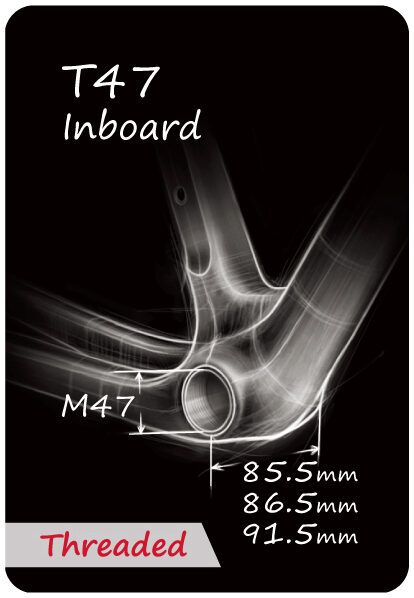

• Frame Type: T47 INBOARD (M47x85.5/86.5/91.5)
• Crank Type: SHIMANO(dia.24)
• Bearing Type: TBT
• Weight: 110g / set
• Type: Threaded

Remark

16-notch bearing cups with an outside diameter of 48.5mm, torque wrench compatible 3/8" drive.

TOKEN Tool: BBT29-5

Compatible with Park Tool: BBT-79
