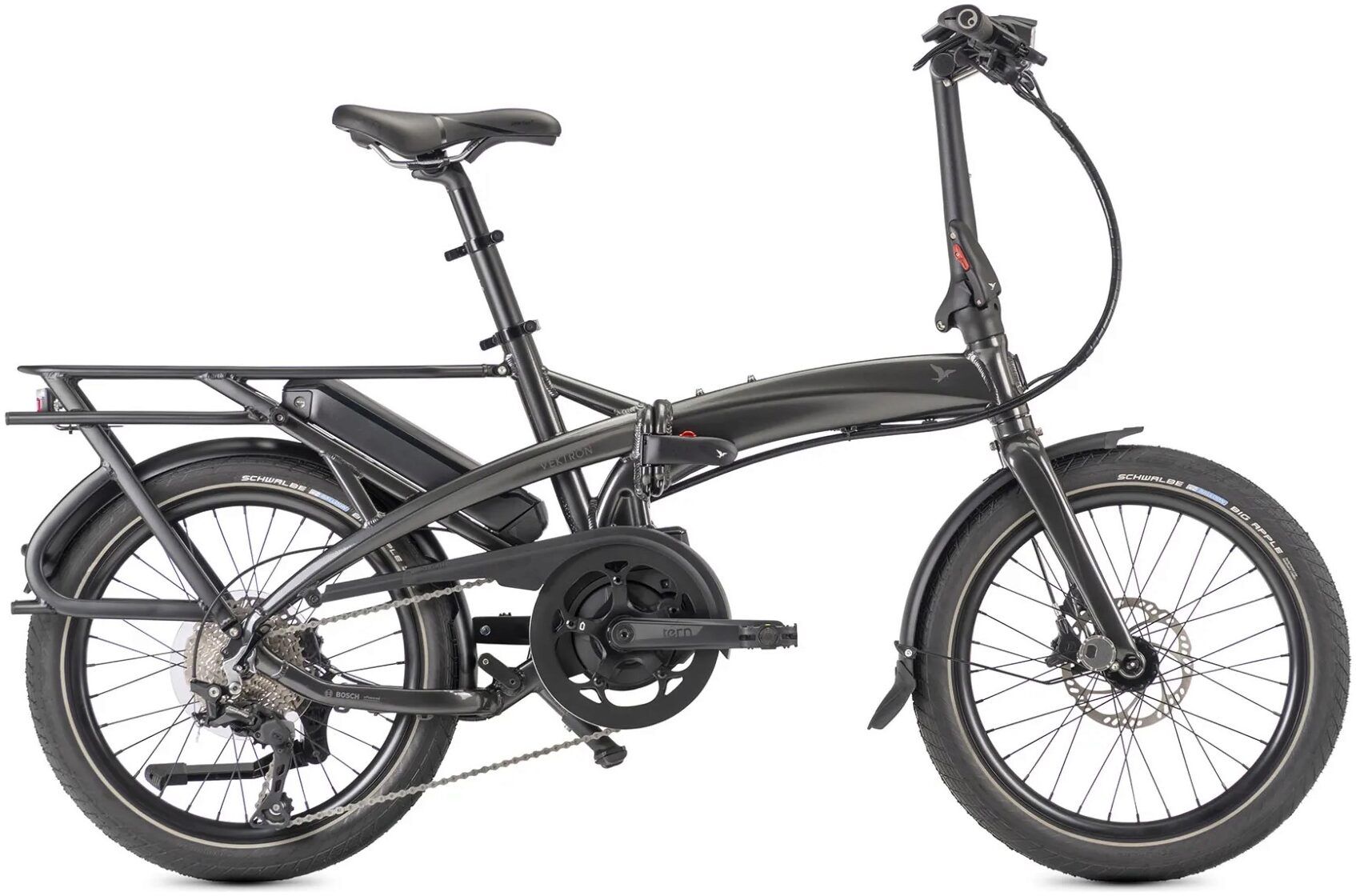

Tern Vektron P10 Gen 4 Electric Folding Bike
| Brand | Tern |
|---|---|
| Battery | 400Wh |
| Colour | Cosmic Black |
| Suitable for | Everyone |
| Wheel Size | 20-inch |
What makes it a P10?
- Powerful Bosch Performance motor provides up to 75 Nm of torque and 340% support
- Intuvia 100 display and LED Remote offer clear info and easy control at your thumb
- PowerPack 545/400 Wh battery lets you ride up to 120 km (75 mi)/87 km (54 mi) on a single charge
- Shimano Deore 1 x 10-speed hub for smooth, efficient shifting across changing terrain
Vektron Highlights
- Bosch Smart System delivers smart bike features like eBike Lock, ride customization, over-the-air updates, and navigation
- Add the optional ConnectModule to further enhance your experience with advanced functions such as Smart Alarm and GPS tracking
- Stiff frame & dialed-in geometry guarantees a ride that outshines many full-sized bikes
- Folds down compact in 10 seconds to fit in cars, trains, and closets
- Stands upright and rolls when folded—easy to move, easy to store
- Adjustable cockpit resizes in seconds to comfortably fit riders 147 - 195 cm (4’10” - 6’5”)
- Hydraulic disc brakes for all-weather stopping power
- Atlas V Rear Rack with 27 kg load capacity, compatible with KLICKfix, Racktime SNAPIT 2.0, and Ortlieb Quick-Lock 2.1 & 2.2 systems
- UL 2849-certified & tested in compliance with EN 15194, meeting strict eBike safety standards
Specifications
Frame and Forks

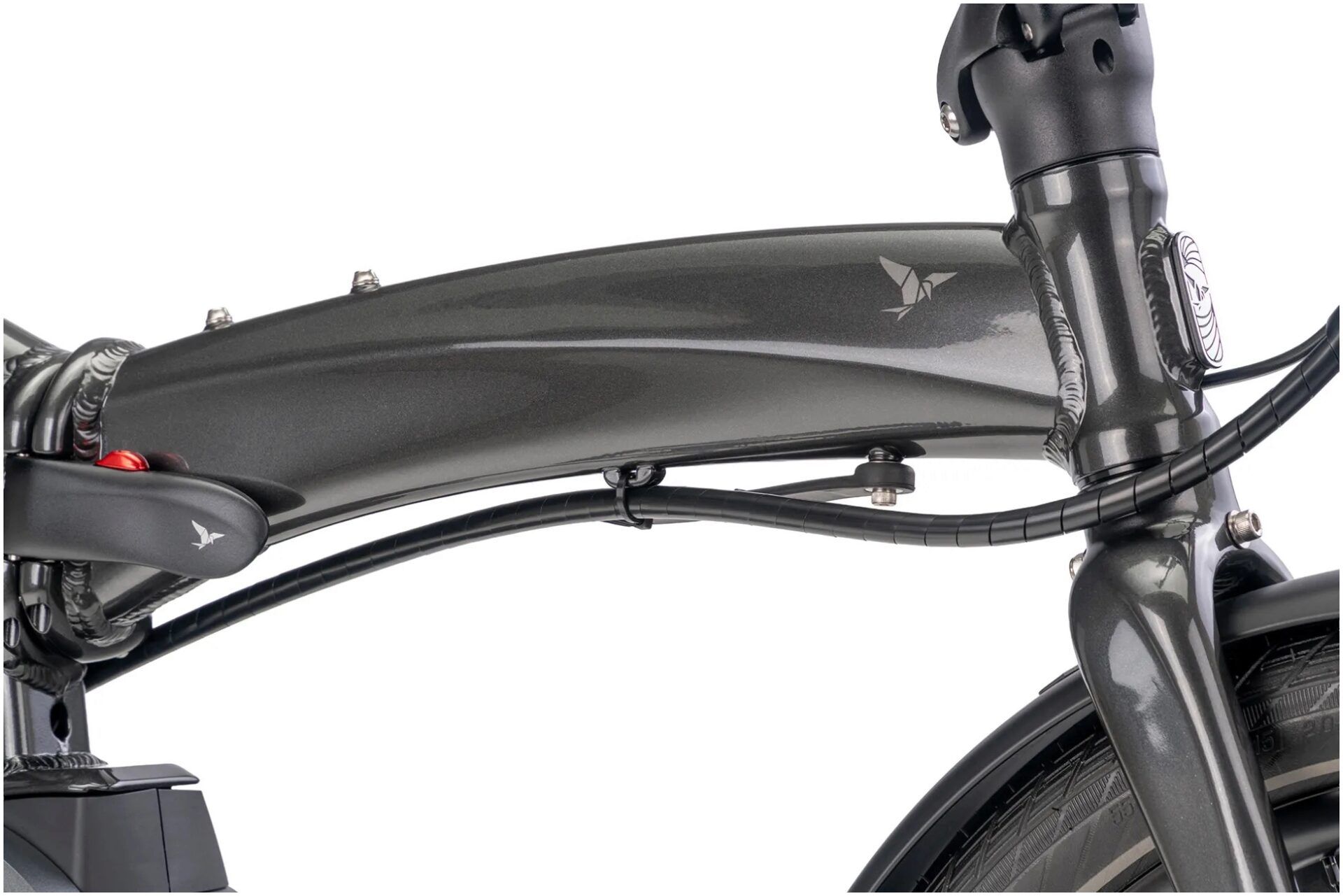

- Frame: Tern Vektron, 6061-AL, hydroformed aluminum, OCL+ joint, 3 patented technologies
- Fork: Tern Tarsus, 6061-Al, hydroformed
Drivetrain
- Crankset: Tern custom, forged 6061-AL crankarm
- Rear Derailleur: Shimano Deore Shadow+
- Cassette: Shimano 11-36 Tooth, 10 speed
- Bottom Bracket: Motor integrated
- Chain: 10 speed, DHT for eBike, GST corrosion resistant coating
Braking/Shifting
- Brakes: Magura MT4, hydraulic disc
- Brake Levers: Magura, hydraulic disc
- Gear Shifters: Shimano Deore, 1 x 10 speed
Wheels
- Front Hub: Novatec, sealed cartridge bearing, disc
- Rear Hub: Novatec, sealed cartridge bearing, disc
- Rims: Kinetix Comp, for disc
- Front Tyre: Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
- Rear Tyre: Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
- Spokes: Stainless steel
Finishing Kit
- Headset: Tern Flux by FSA, cartridge bearings, Physis integrated
- Handlebar: Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
- Stem: Tern Andros, adjustable, forged construction, patented technology
- Grips: Ergon
- Saddle: Tern Porter+ by Velo, patented GripPad design, PrimeGel padding
- Seat Post: Tern Telescope, 34.9 / 30.9mm
- Seat Post Clamp: Tern Collar
- Pedals: MKS EZY
Extras
- Chainguard: SKS Chainblade
- Kickstand: URSUS, rear mount
- Front Light: Tern Valo Direct, 190 lumens
- Rear Light: Herrmans H-Trace, for eBike
- Fenders: SplashGuard, stainless hardware
- Rack(s): Atlas V Rack, integrated 8 point mounting, 27kg capacity
Electric Power
- Motor: Bosch Performance, max speed 25 kph (EU); max speed 20 mph (US)
- Battery: Bosch PowerPack
- Display: Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
- Charger: 100-240V, 2A
