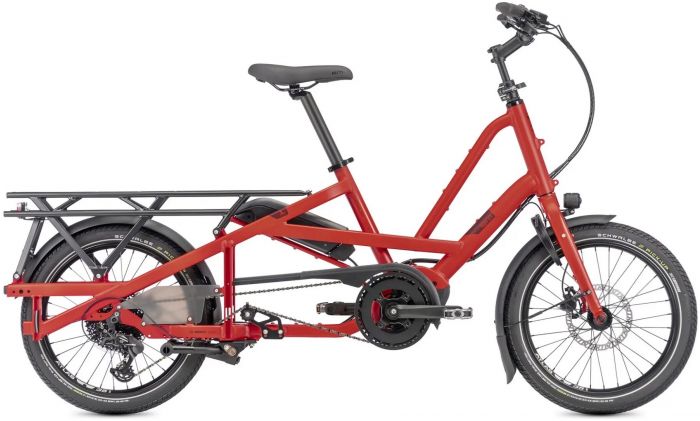

Tern Quick Haul Long D9 Performance Electric Cargo Bike
Select options to see availability
What the stock status means
- In stock On the shelf in our own warehouse. Order before 2pm and it is despatched the same working day; bikes we build are built, safety-checked and despatched in 2-3 working days.
- In stock with our supplier Not on our shelves, but our supplier has it or it is already on its way to us. We bring it in as soon as you order, and the despatch estimate shown allows for that.
- Out of stock Neither we nor our supplier has it right now. Where a date is shown, more is on order and you can order now to secure one from that delivery.
- Stock to be confirmed Not on our shelves, and our supplier does not send us stock figures for it, so we cannot say how soon we could get one. Use "Check availability" and we will ask them and email you back.
Seen it cheaper? Ask us to price match
Attributes
| Battery | 400Wh |
|---|---|
| Suitable for | Everyone |
| Wheel Size | 20-inch |
In-stock bikes are built and dispatched in 2-3 working days. Free delivery over £50.
Reserve free and collect in Wigan, built and checked, after a test ride.
Built by a Cytech mechanic, with a free first service inside six months.
Thirty-day returns, free from any UK address.
0% finance on bikes over £500
Spread the cost over 6 to 36 months with V12 Retail Finance. Apply at checkout and get a decision in minutes.
Bike price £3,500.00
Deposit (10%) £350.00
24 monthly payments of £131.25
Total repayable · 0% APR representative £3,500.00
Representative example. Credit subject to status and affordability. Winstanleys Limited is authorised and regulated by the Financial Conduct Authority and is the broker and not the lender.
About Tern
Tern specialise in folding bikes and folding electric bikes. Their prime motive other than to provide you with an efficient and user-friendly cycling experience is to help preserve the environment. You will find many well-considered features on all of their models and they are an absolute pleasure to ride.
Quick Haul Long D9 Highlights
- Compact cargo bike designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and up to 400% support
- Easy-to-use, intuitive Bosch e-bike system helps you stay informed and in control on the road
- Custom 1 x 9-speed e-bike drivetrain with trigger shifter for faster, more precise shifting
- Built tough for hauling, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 90 kg (198 lb)
- Robust, patented Atlas Kickstand keeps the bike steady for safe loading & unloading of cargo and passengers
- Create customized setups using our wide range of kid & cargo-carrying accessories
- Adjusts without tools to fit riders 155 - 190 cm (5'1" - 6'3"), weighing up to 120 kg (265 lb)
- Third-party tested for safety & meets benchmark German cargo bike standard DIN 79010, with the frame and fork tested well beyond the requirements
Specifications
Frame and Forks
- Frame: Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
- Fork: Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)
Drivetrain
- Crankset: Tern custom, forged 6061-AL crankarm, anti-drop chainring
- Rear Derailleur: Tektro custom for Tern, 1 x 9 speed
- Cassette: Tektro 11-42 Tooth, 9 speed
- Bottom Bracket: Motor integrated
- Chain: KMC for eBike, 9 speed
Braking/Shifting
- Brakes: Tektro hydraulic disc
- Brake Levers: Tektro hydraulic disc
- Gear Shifters: Shimano Deore, 1 x 10 Speed
Wheels
- Front Hub: Disc, aluminum
- Rear Hub: 9 speed, disc, aluminum, Boost
- Rims: Tern Atlas H, cargo
- Front Tyre: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
- Rear Tyre: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
- Spokes: Stainless steel
Finishing Kit
- Headset: TH, cartridge bearings
- Handlebar: Low riser ergo, 31.8, 6061-AL
- Stem: Speedlifter, adjustable, 3D forged stem, 31.8mm
- Grips: Velo ergonomic, lock-on
- Saddle: Velo Comfort
- Seat Post: 34.9mm, 6061-AL, micro-adjust clamp
- Seat Post Clamp: Tern Collar
- Pedals: Urban with non-slip surface
Extras
- Bell: Aluminum
- Chainguard: SKS Chainblade
- Kickstand: Atlas Kickstand, for cargo
- Front Light: 90 lux, StVZO approved
- Rear Light: Herrmans
- Fenders: SplashGuard, stainless hardware
- Rack(s): Atlas L, 90 kg (198 lb) capacity
Electric Power
- Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
- Battery: Bosch PowerPack 400
- Display: Bosch Purion, 4 mode selectable, walk assist
- Charger: 220V, 4A (EU)
