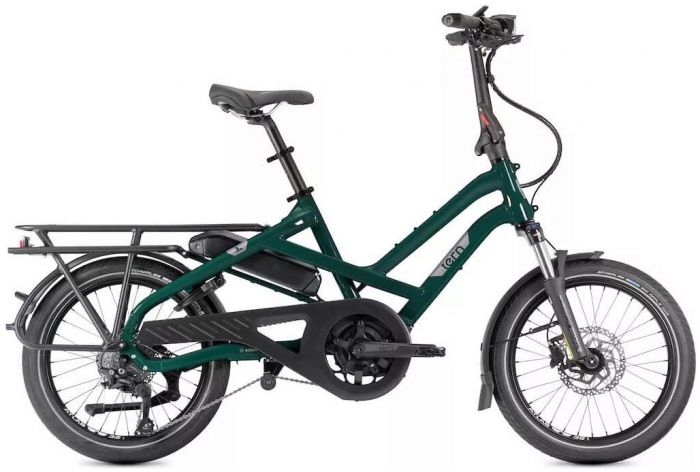

Tern HSD P10 Gen 2 Electric Cargo Bike
Select options to see availability
What the stock status means
- In stock On the shelf in our own warehouse. Order before 2pm and it is despatched the same working day; bikes we build are built, safety-checked and despatched in 2-3 working days.
- In stock with our supplier Not on our shelves, but our supplier has it or it is already on its way to us. We bring it in as soon as you order, and the despatch estimate shown allows for that.
- Out of stock Neither we nor our supplier has it right now. Where a date is shown, more is on order and you can order now to secure one from that delivery.
- Stock to be confirmed Not on our shelves, and our supplier does not send us stock figures for it, so we cannot say how soon we could get one. Use "Check availability" and we will ask them and email you back.
Seen it cheaper? Ask us to price match
Attributes
| Suitable for | Everyone |
|---|---|
| Wheel Size | 20-inch |
In-stock bikes are built and dispatched in 2-3 working days. Free delivery over £50.
Reserve free and collect in Wigan, built and checked, after a test ride.
Built by a Cytech mechanic, with a free first service inside six months.
Thirty-day returns, free from any UK address.
About Tern
Tern specialise in folding bikes and folding electric bikes. Their prime motive other than to provide you with an efficient and user-friendly cycling experience is to help preserve the environment. You will find many well-considered features on all of their models and they are an absolute pleasure to ride.
What makes it s P10?
- Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Detachable and easy-to-understand Intuvia 100 display
- 1 x 10-speed Shimano Deore groupset with trigger shifter
HSD Highlights
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
- Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
Specifications
Frame and Forks
- Frame: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
- Forks: Suntour custom for Tern, Chromoly steerer, 32mm stanchions, Thru-axle, 70mm travel, EFBE approved: 170 kg
Drivetrain
- Crankset: Tern HSD custom
- Rear Derailleur: Shimano Alivio Shadow
- Cassette: Shimano Shimano 11-32 Tooth, 9 Speed
- Chain: 9 Speed, DHT for eBike, GST corrosion resistant coating
Braking/Shifting
- Shifters: Shimano Deore, 1 x 1 Speed, trigger
- Front Brakes: Shimano, hydraulic disc, 180mm rotor
- Rear Brakes: Shimano, hydraulic disc, 180mm rotor
- Brake Levers: Shimano, hydraulic disc
Wheels
- Front Wheel: Tern Atlas H, cargo wheel
- Rear Wheel: Tern Atlas H, cargo wheel
- Front Hub: Novatec, Thru-axle, sealed bearings
- Rear Hub: Shimano disc
- Spokes and Nipples: Stainless steel
- Rims: Tern Atlas H, wide 35mm
- Tyres: Schwalbe Big Apple, 55-406, puncture protection, Reflex
Finishing Kit
- Handlebars: Tern Sweep, 6061-AL, Tern Andros adapted
- Stem: Tern Andros, adjustable, forged construction, patented technology
- Seatpost: Tern Telescope, 34.9 / 30.9 mm, 2014-AL
- Saddle: Tern Upright by Velo
- Pedals: Urban with non-slip surface
Electric Power
- Motor: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
- Battery: Bosch PowerPack 500
- Display: Bosch Purion
- Range: 500 Wh: 51-118 km (32-74 mi)
- Charger: 220V, 4A (EU); 100-240V, 4A (US)
