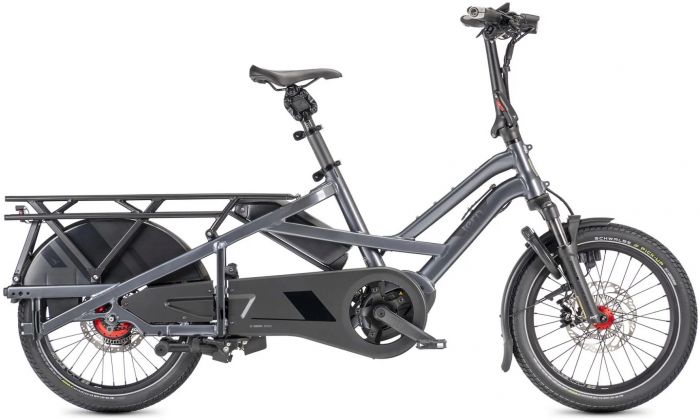

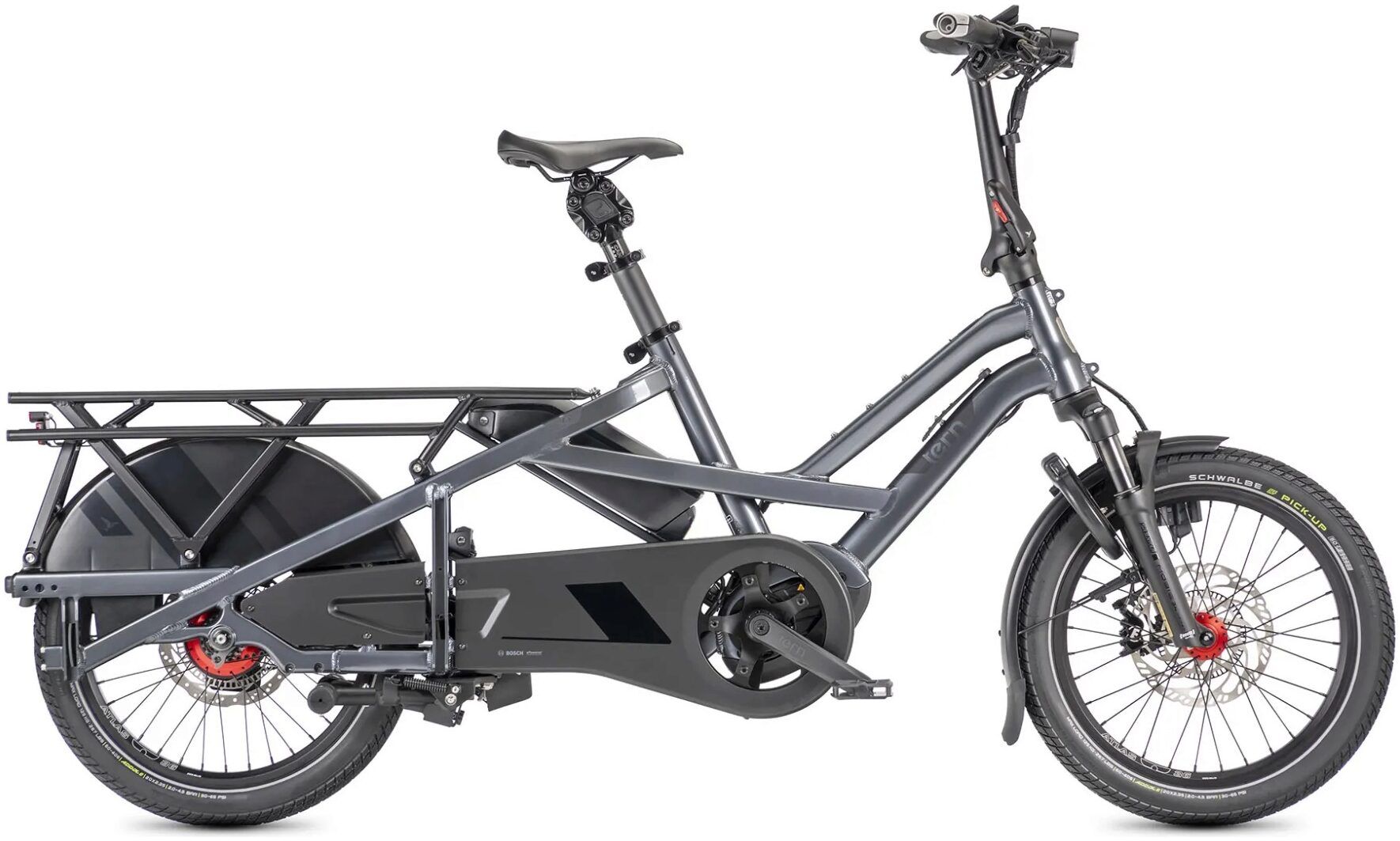

Tern GSD R14 Gen 3 Electric Cargo Bike
| Brand | Tern |
|---|---|
| Battery | 800Wh |
| Colour | Iron Grey / Dark Grey |
| Suitable for | Everyone |
| Wheel Size | 20-inch |
What makes it an R14?
- Bosch® Smart System with Kiox 300 color display enhances your eBike experience with smart features for theft protection, ride customization, navigation, and more!
- Bosch Anti-Lock Braking System enables safer, more efficient braking
- Dual-battery compatible, ready to power through heavy use and long distances of up to 288 km (179 mi)
- Silent, smooth, and low-maintenance Gates Belt Drive
- Maintenance-free Rohloff E-14 electronic shifter with huge 526% gear range, perfect for tackling various terrains and riding styles with ease
GSD Highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power

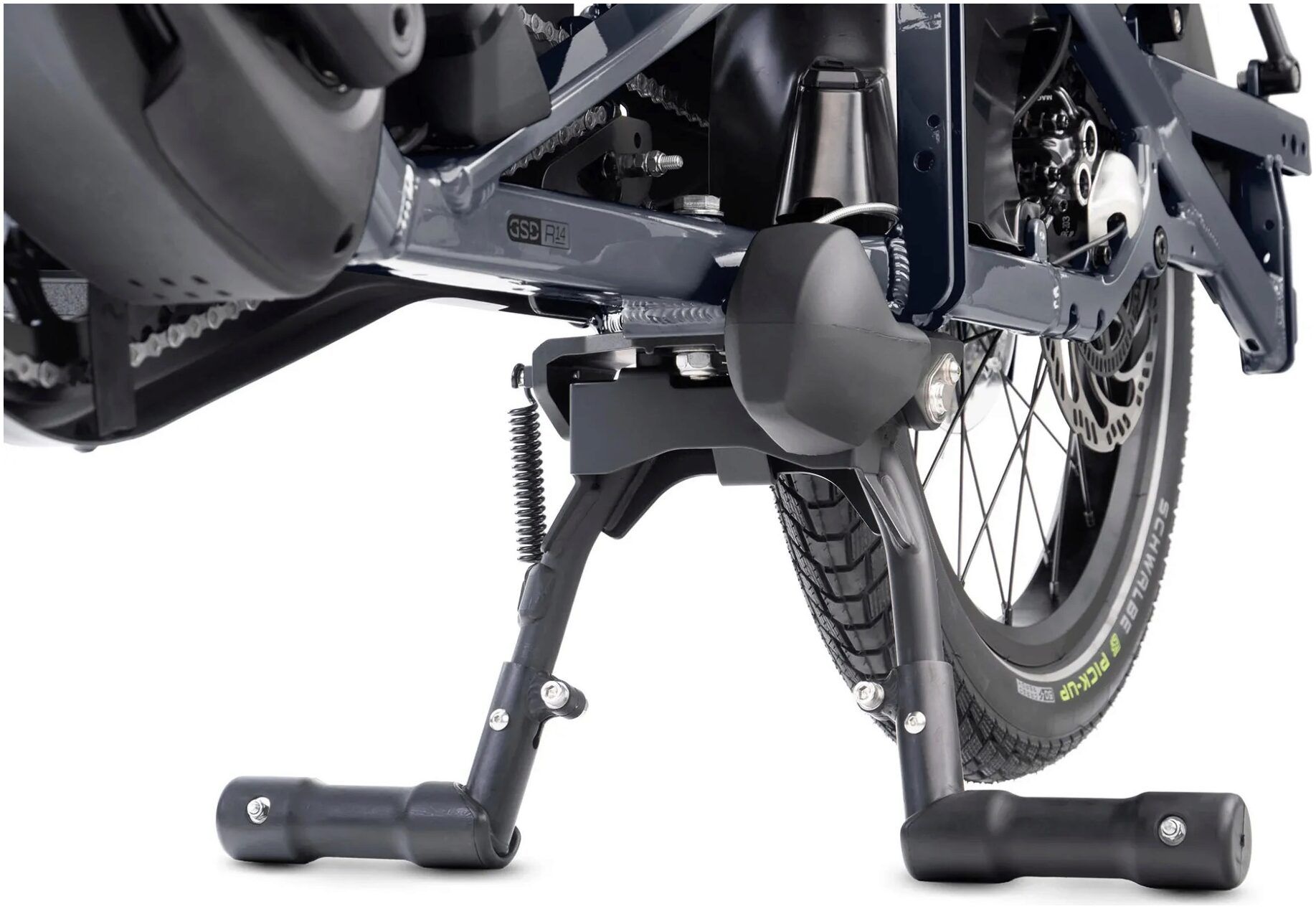

- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability

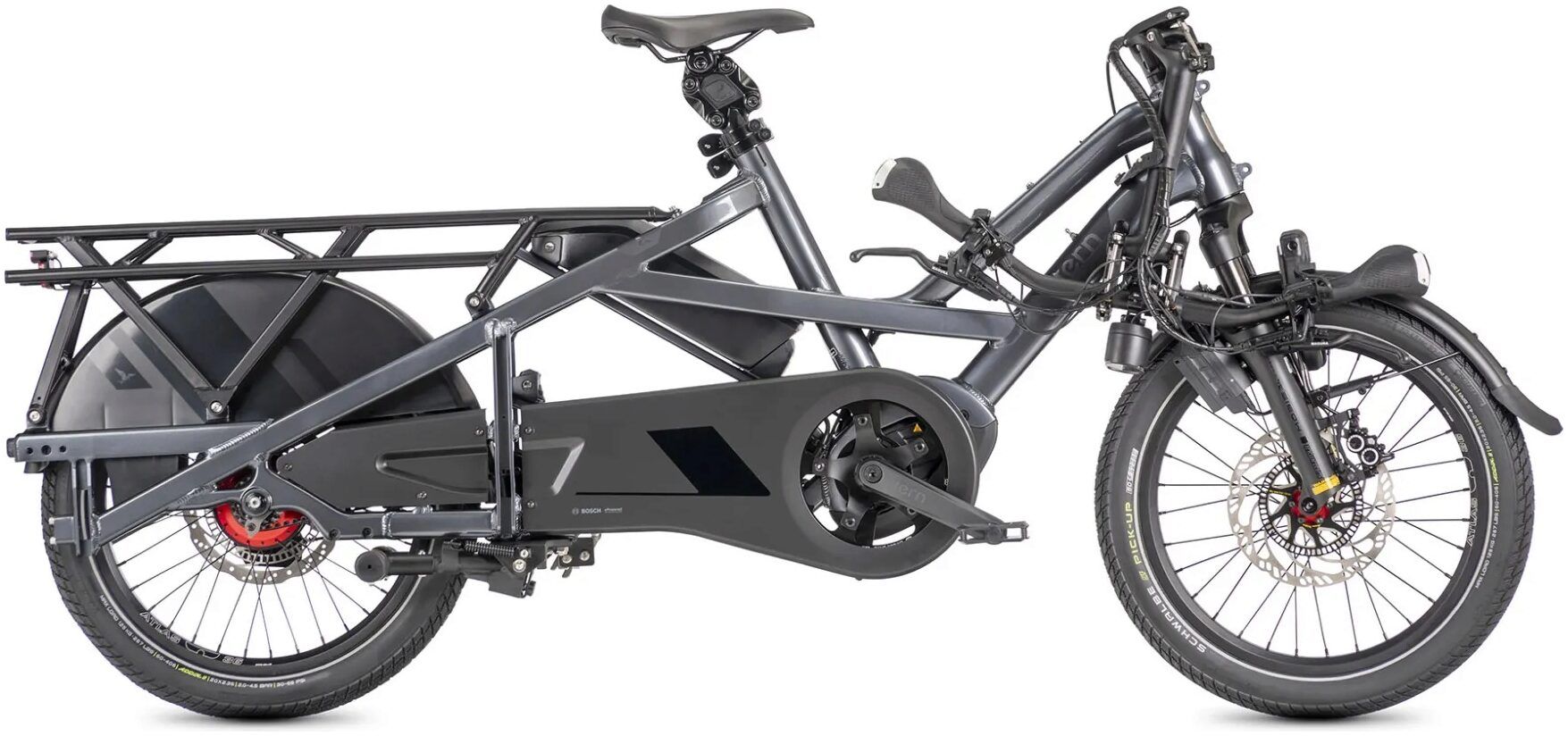

- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
Specifications
Frame and Forks
- Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210kg
- Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg
Drivetrain
- Crankset: Tern Orox custom
- Cassette: Gates CDX, precision CNC machined cog
- Bottom Bracket: Motor integrated
- Chain: Gates Carbon Drive CDX belt
Braking/Shifting

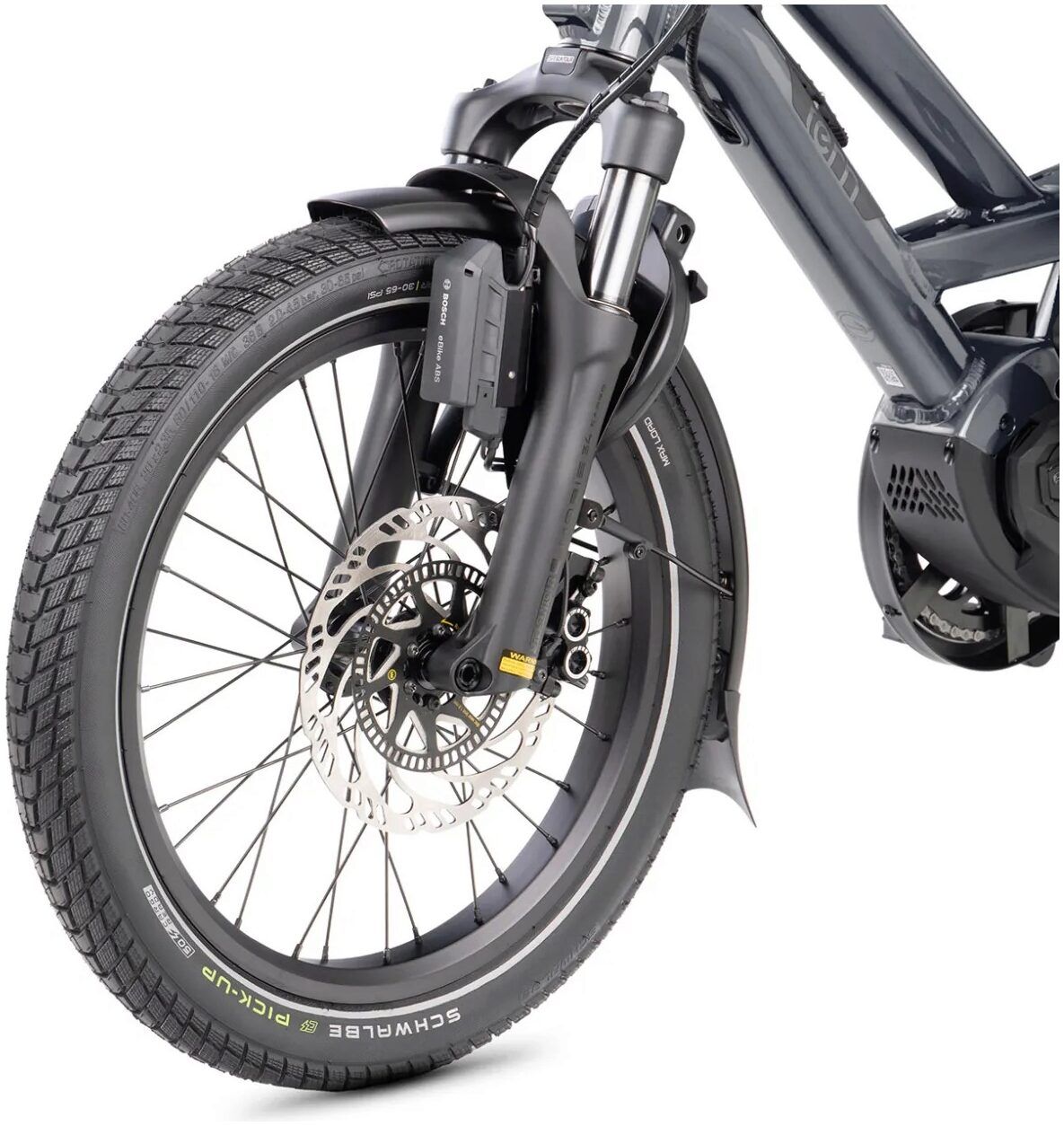

- Brakes: Magura MT-C ABS, 4-piston hydraulic disc, 203mm rotor
- Brake Levers: Magura MT-C e-stop, hydraulic, with brake light sensor
- Gear Shifters: Rohloff E14, e-shift 14 Speed
Wheels
- Front Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings

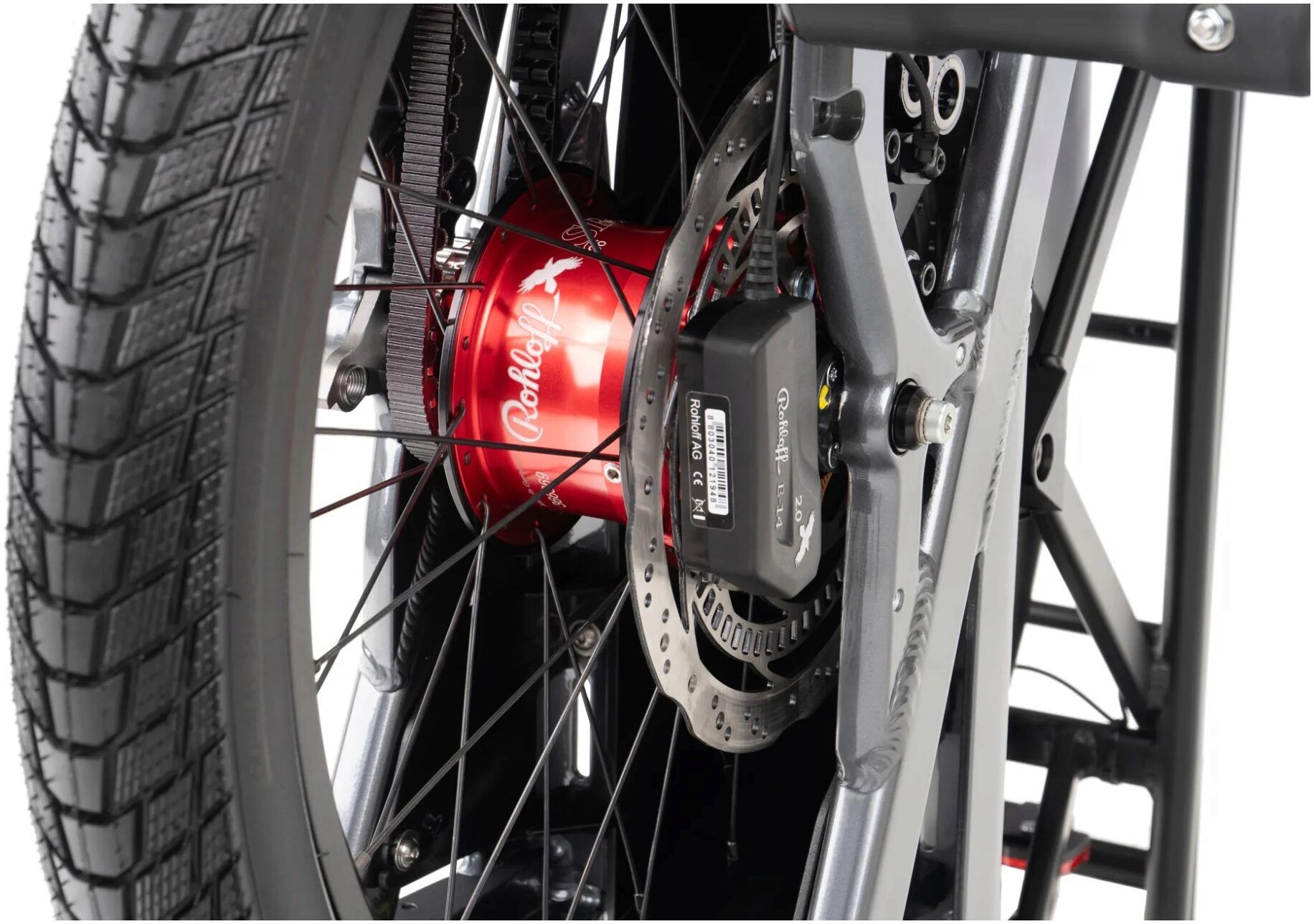

- Rear Hub: Rohloff E14, 526% range, Boost
- Rims: Tern Atlas, ultra wide 36mm, dual reinforced joint
- Tyres: Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex
- Spokes: Stainless steel
Finishing Kit
- Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
- Handlebar: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290mm
- Stem: Tern Andros, adjustable, forged construction, patented technology
- Grips: Ergon
- Saddle: Tern GSD by Velo
- Seat Post: Tern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers
- Seat Post Clamp: Tern Collar
- Pedals: Urban with non-slip surface, sealed bearings
Extras
- Bell: Pitch Plus, brass
- Chainguard: Tern GSD, full chain cover

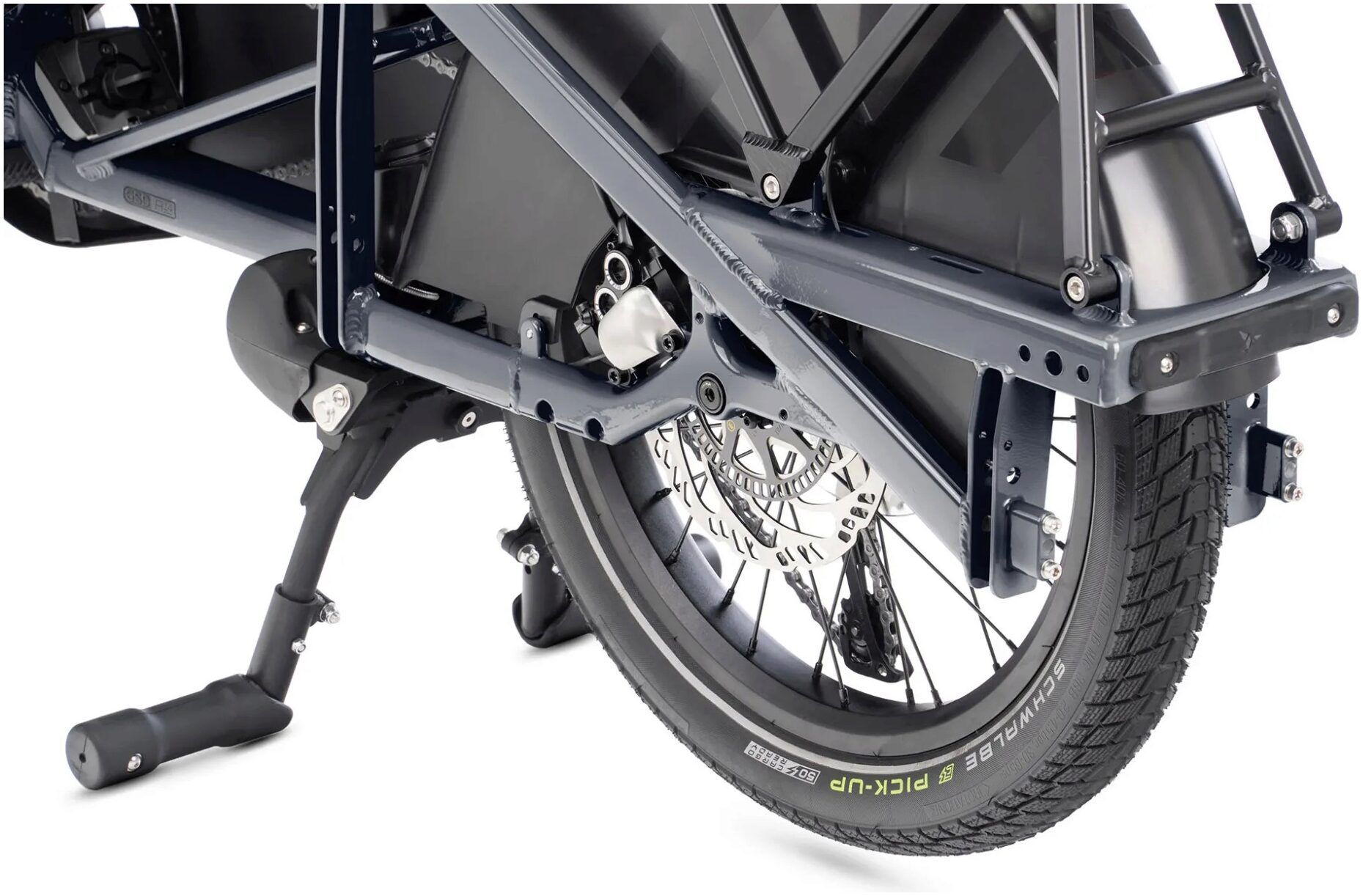

- Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
- Front Light: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam

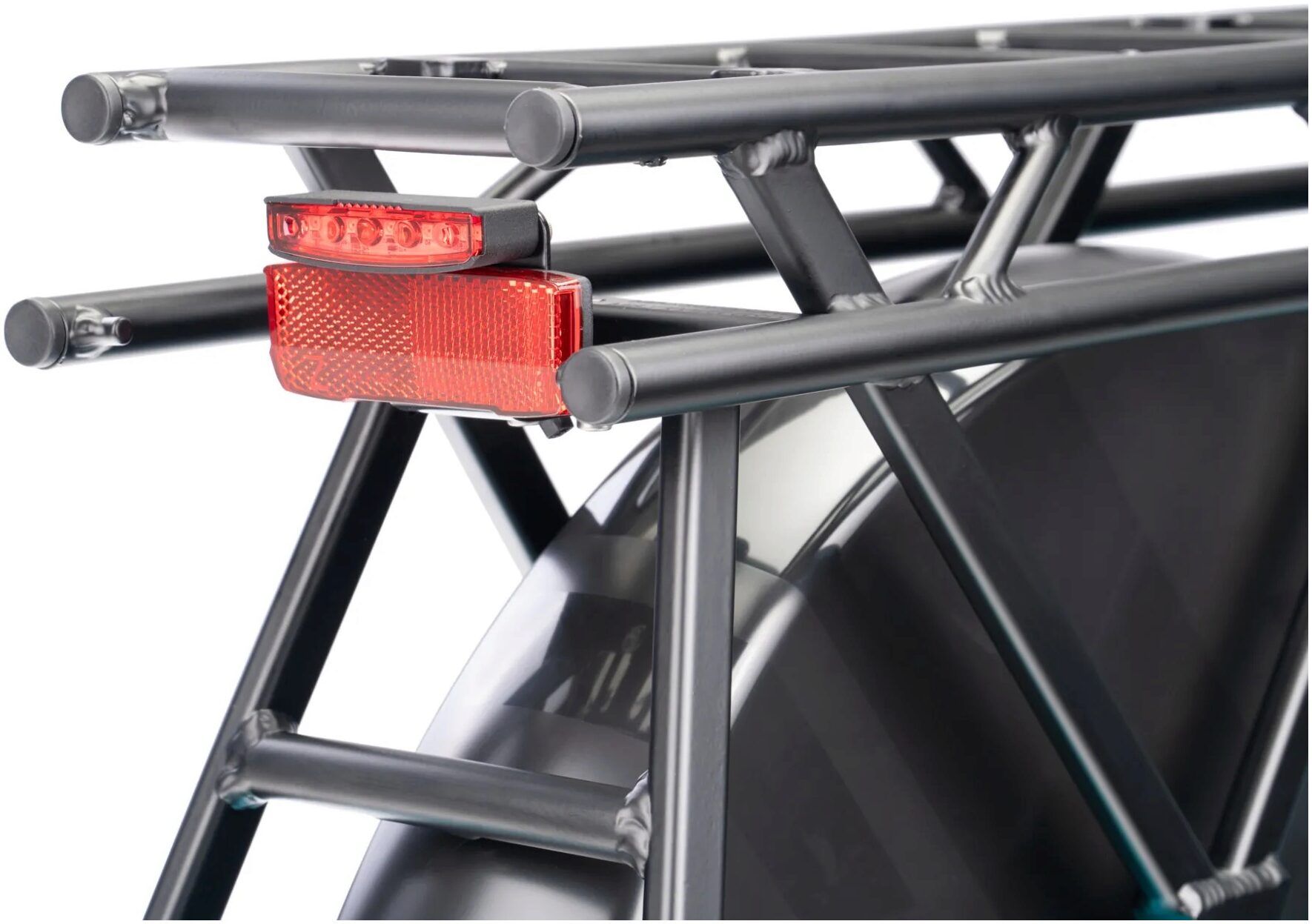

- Rear Light: LED w/ G-Sensed Brake Light
- Fenders: F: Aluminum R: GSD wheel guard

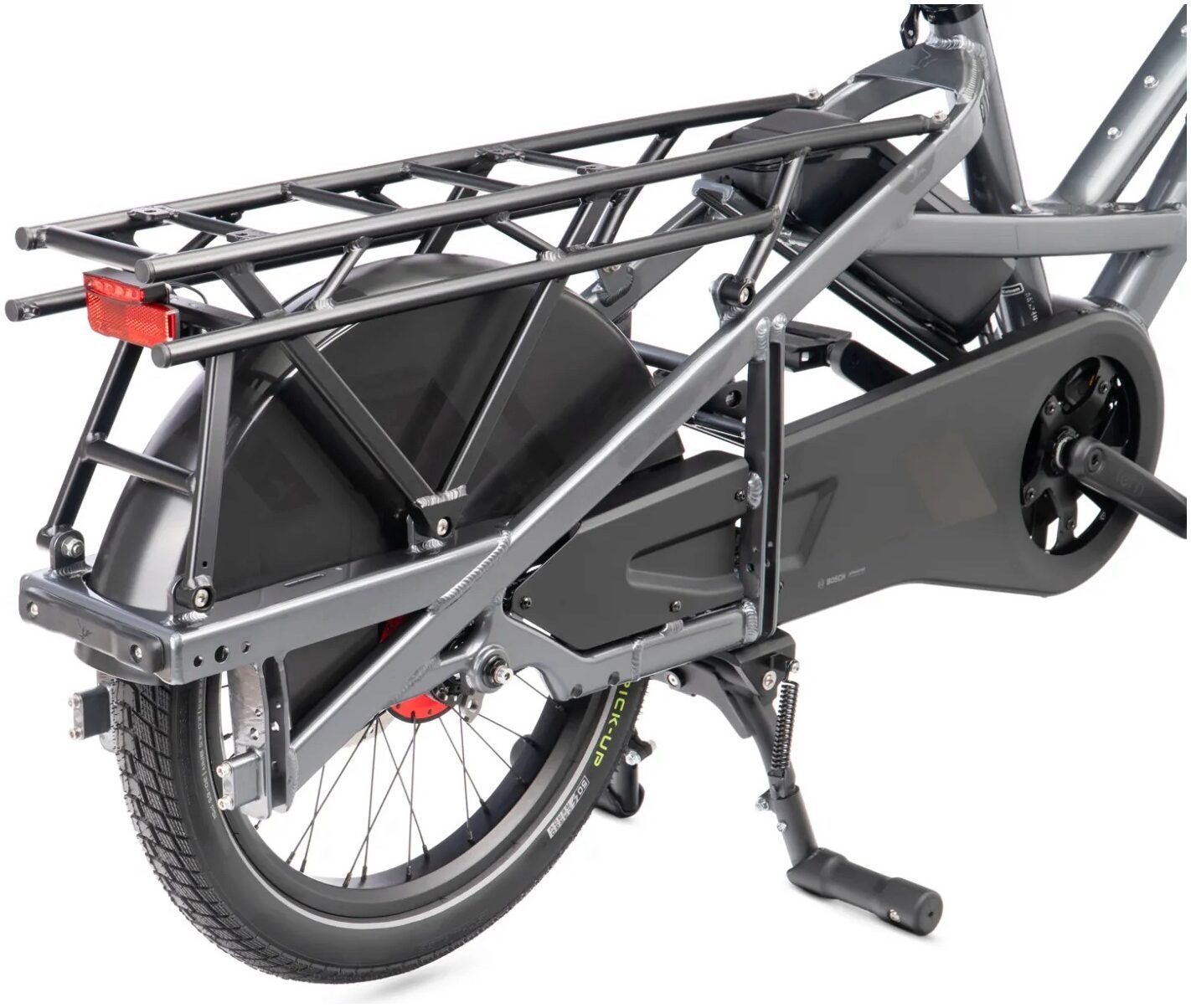

- Rack(s): Atlas G, 100 kg (220 lb) capacity
Electric Power
- Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

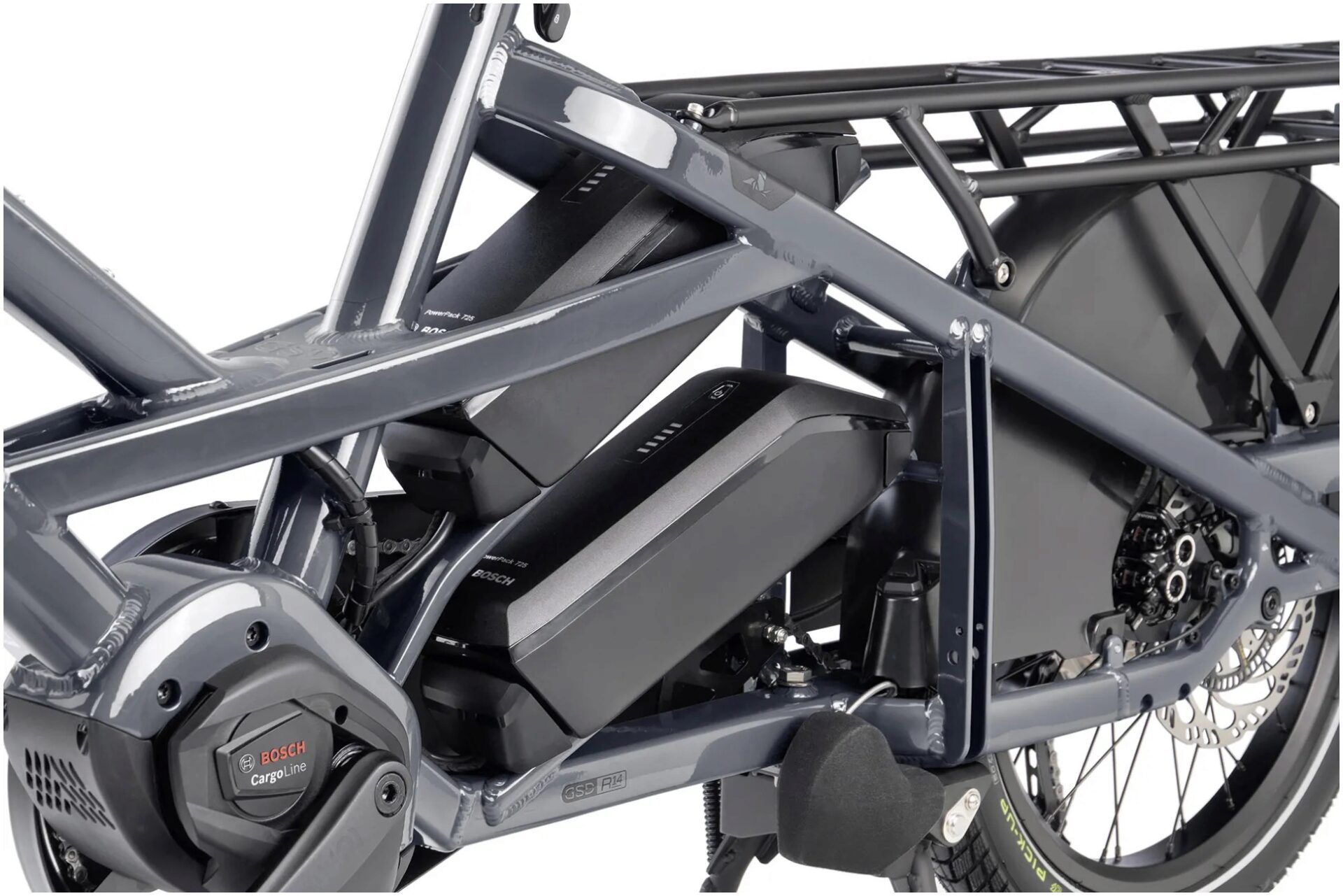

- Battery: Bosch 800 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity
- Display: Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Android app, electronic bike lock, Rohloff integrated shifting w/ auto downshift
- Charger: 220V, 4A (EU); 100-240V, 4A (US)
