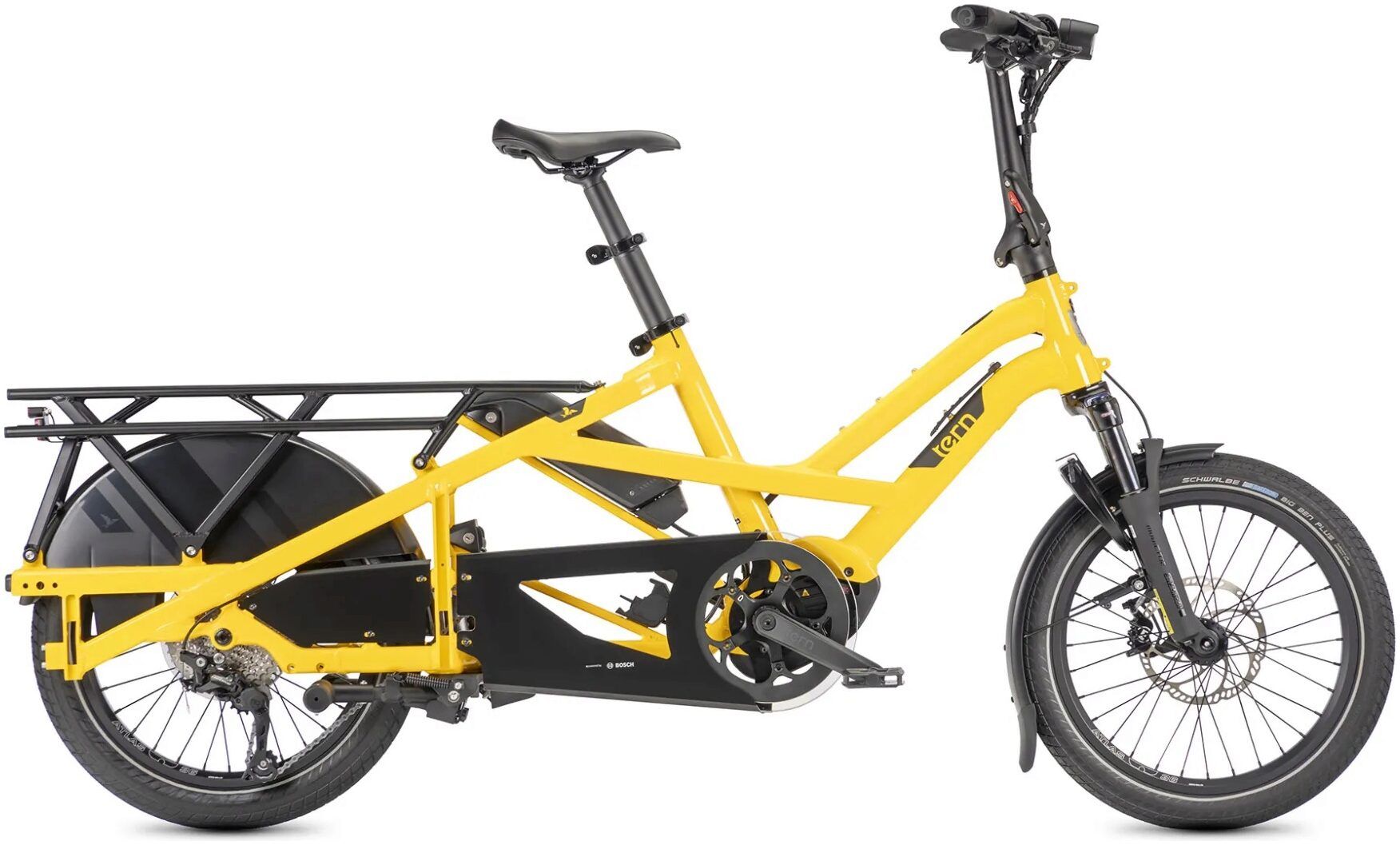

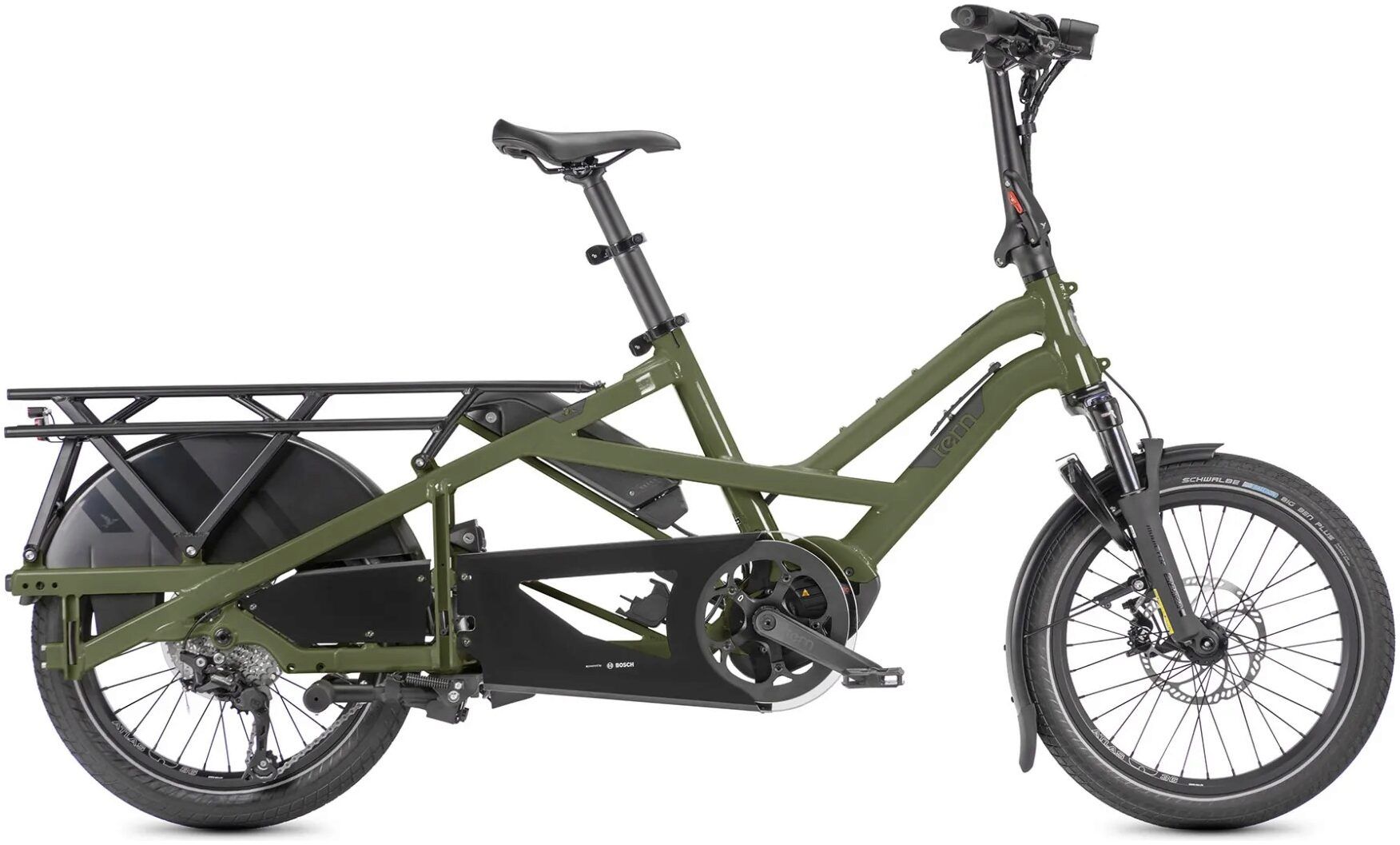

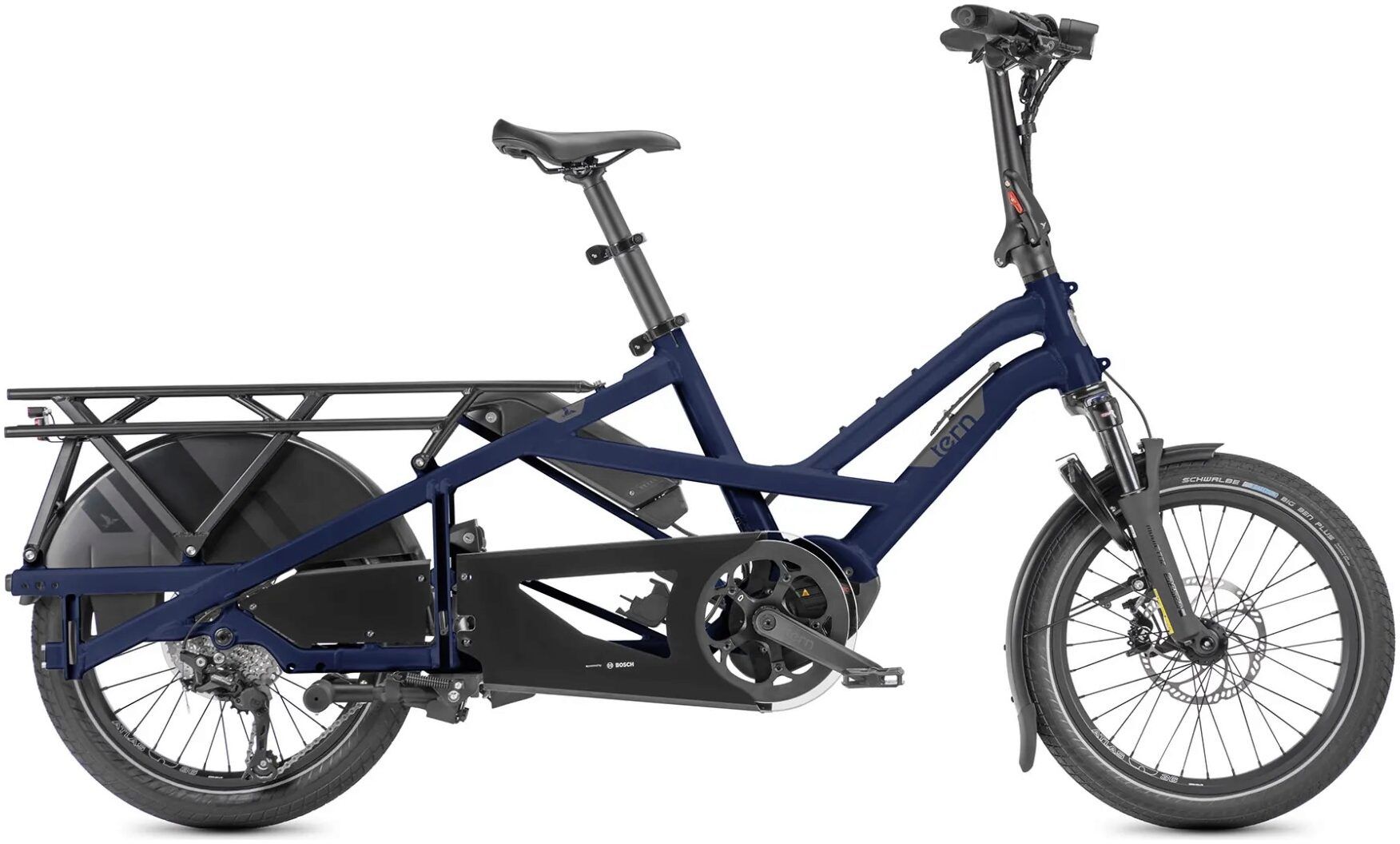

Tern GSD P10 Gen 3 Electric Cargo Bike
| Brand | Tern |
|---|---|
| Battery | 500Wh |
| Suitable for | Everyone |
| Wheel Size | 20-inch |
What makes it a P10?
- User-friendly Bosch® e-bike system with Purion display helps you stay informed and in control on the road
- Dual-battery compatible, ready to power through heavy use and long distances of up to 207 km (129 mi)
- Shimano® Deore 1 x 10-speed hub for smooth, efficient shifting
GSD Highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- UL 2849-certified e-bike system third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
Specifications
Frame and Forks
- Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210kg
- Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved: 210kg
Drivetrain
- Crankset: Tern GSD, forged 6061-AL DH crankarm
- Rear Derailleur: Shimano Deore Shadow+
- Cassette: Tern GSD, forged 6061-AL DH crankarm
- Bottom Bracket: Motor integrated
- Chain: KMC 10 Speed, for eBike, EPT corrosion resistant coating
Braking/Shifting
- Brakes: Magura MT5, 4-piston hydraulic disc, 180mm rotor, Sport pads
- Brake Levers: Magura MT5 e-stop, hydraulic, with brake light sensor
- Gear Shifters: Shimano Deore, 1 x 10 Speed
Wheels
- Front Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
- Rear Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard
- Rims: Tern Atlas, ultra wide 36mm, dual reinforced joint
- Front Tyre: Tern Atlas, heavy duty cargo wheel
- Rear Tyre: Tern Atlas, heavy duty cargo wheel
- Spokes: Stainless steel
Finishing Kit
- Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
- Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
- Stem: Tern Andros, adjustable, forged construction, patented technology
- Grips: Ergon
- Saddle: Tern GSD by Velo
- Seat Post: Tern VLT (Very Large Telescope) with Light Action levers
- Seat Post Clamp: Tern Collar
- Pedals: Urban with non-slip surface, sealed bearings
Extras
- Bell: Pitch Plus, brass
- Chainguard: Tern GSD, full chain cover
- Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
- Front Light: Ignis Headlight, Ultra wide low beam
- Rear Light: RearStop Brake Light, Always on
- Fenders: F: Aluminum R: GSD wheel guard
- Rack(s): Atlas G, 100 kg (220 lb) capacity
Electric Power
- Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
- Battery: Bosch 500 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 500 Wh max capacity
- Display: Bosch Purion
- Charger: 220V, 4A (EU)
