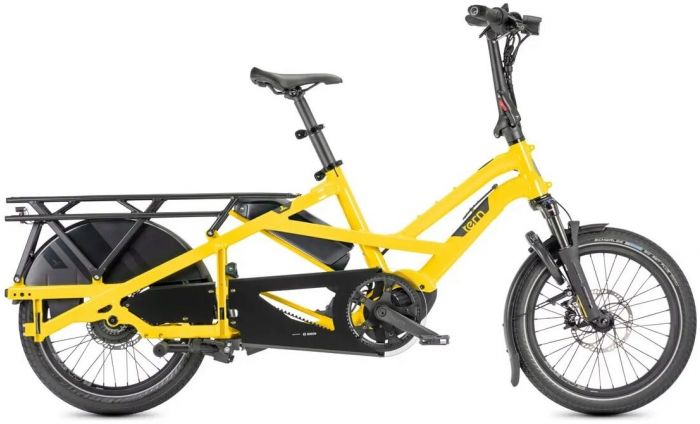

Tern GSD P00 Gen 3 Electric Cargo Bike
| Brand | Tern |
|---|---|
| Battery | 545Wh |
| Suitable for | Everyone |
| Wheel Size | 20-inch |
What makes it a P00?
- Bosch® Smart System with Purion 200 control unit enhances your riding experience with smart features like eBike lock, ride customization, navigation, and more!
- Add the optional ConnectModule to unlock advanced functions such as Smart Alarm and GPS tracking
- Dual-battery compatible, ready to power through heavy use and long distances of up to 196 km (122 mi)
- Silent, smooth, and low-maintenance Gates Belt Drive
- Enviolo Heavy Duty internally geared hub with 380% gear range and twist shifter, offering effortless shifting to tackle various terrains
GSD Highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
Specifications
Frame and Forks
- Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210kg
- Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved: 210kg
Drivetrain
- Crankset: Tern GSD, Gates CDX CNC machined beltring
- Rear Derailleur: Shimano Deore Shadow+
- Cassette: Gates CDX, precision CNC machined cog
- Bottom Bracket: Motor integrated
- Chain: Gates Carbon Drive CDX belt
Braking/Shifting
- Brakes: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
- Brake Levers: Magura MT5 e-stop, hydraulic, with brake light sensor
- Gear Shifters: Enviolo, Twist
Wheels
- Front Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
- Rear Hub: Enviolo Heavy Duty, 380% continuously variable range, Boost
- Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
- Front Tyre: Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex
- Rear Tyre: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
- Spokes: Stainless steel
Finishing Kit
- Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
- Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
- Stem: Tern Andros, adjustable, forged construction, patented technology
- Grips: Ergon
- Saddle: Tern GSD by Velo
- Seat Post: Tern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers
- Seat Post Clamp: Tern Collar
- Pedals: Urban with non-slip surface, sealed bearings
Extras
- Bell: Pitch Plus, brass
- Chainguard: Tern GSD, full chain cover
- Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
- Front Light: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
- Rear Light: LED w/ G-Sensed Brake Light
- Fenders: F: Aluminum R: GSD wheel guard
- Rack(s): Atlas G, 100 kg (220 lb) capacity
Electric Power
- Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU)
- Battery: Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity
- Display: Bosch Purion 200, connectivity with Bosch eBike Flow IOS/Smartphone app
- Charger: 220V, 4A (EU)
