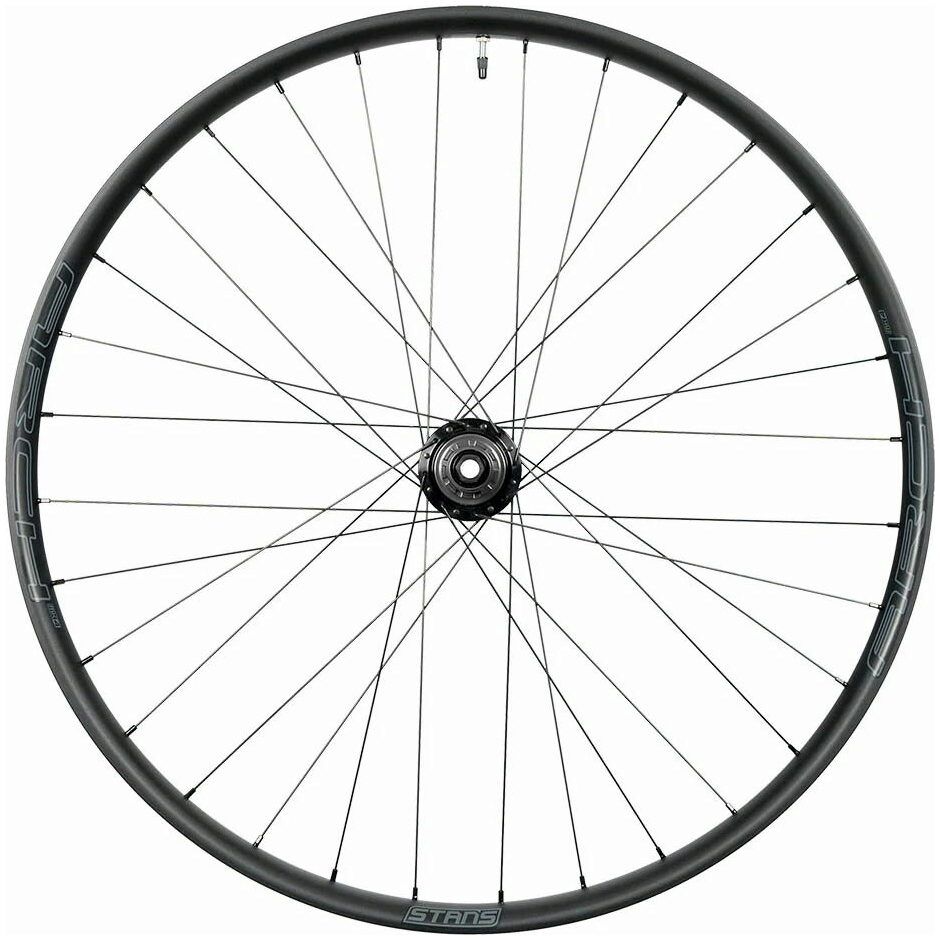

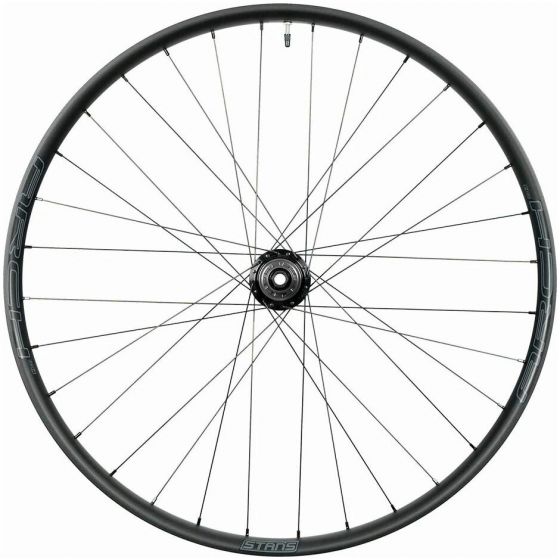

Stans Arch 29-Inch Front Wheel
| Brand | Stans No Tubes |
|---|---|
| Wheel Size | 29-inch |
The Arch MK4 LTD wheels combine their flagship MK4 rim design with Stan's most robust E-Sync hub. For a limited time, the MK4 LTD is a performance wheelset at an incredible price point! Laced with premium Sapim Race spokes and alloy nipples laced to their extra-durable E-sync hub. Featuring chromoly steel axles and double row Enduro bearings, special heat treated steel ratchet rings, and a pawl design that reduces stress on freehub and bearings, making it the perfect choice for traditional and E-Bike use.
Features
- Internal Width: 28.0mm
- External Width: 31.4mm
- Depth: 18.9mm
- Hole Count: 28 or 32-hole
- Drilling Style: 561mm, 2.5mm Offset mm (27.5″) / 600mm, 2.5mm Offset (29″)
- Color: Black
- Material: 6069 Aluminum Alloy
- Brakes: Disc only
- Rim Weight: 451g (27.5″) / 481g (29″)ERTO: 584×28.0 (27.5″) / 622×28.0 (29″)
- ISO: 27.5″x31.4mm / 29″x31.4mm
- Tape: 30mm
- Valve: 35mm Presta
- Spoke Tension: 130kgf (1275N)
- Max Rider Weight: 286lbs (130 KG)
- Max Pressure with 2.22″ Tyre: 41psi
- Max Pressure with 2.5″ Tyre: 35psi
