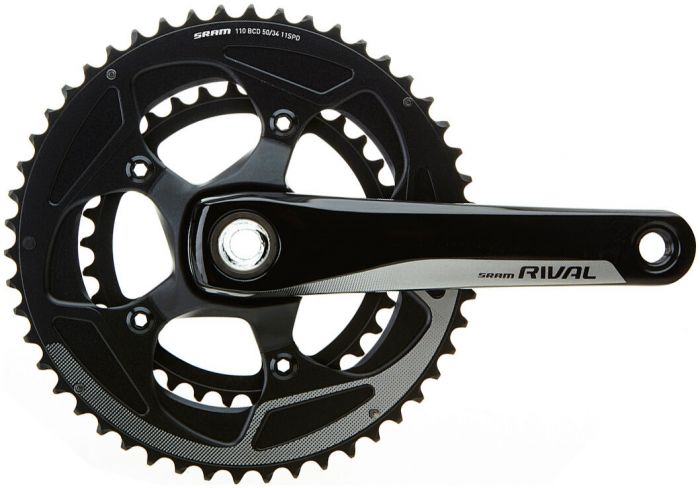

SRAM Rival 22 GXP Yaw Crankset

More Information
Brand	SRAM
Colour	Black

SRAM is a privately owned American manufacturer of bicycle components, which can be found on all types of bicycle worldwide. They specialise in transmission, brake, suspension and wheel systems and offer their components under various other brand names such as Rockshox, Zipp, Quarq, Truvativ and Avid.

Skip to the beginning of the images gallery

The SRAM Rival 22 groupset delivers immense performance across a broad variety of bikes and disciplines. Paved or not. Cyclocross or triathlon. Road racing or unchartered journeys. Rival 22 provides the tools and technology to meet each challenge and expand your limits.

Technology

BB30

Besides serious weight savings, this bottom bracket means narrow Q-factor, more ankle clearance, greater bearing durability, and stronger crank construction.

GXP

GXP’s gutter seal design cuts friction, durability and weight—improving both feel and performance.

PressFit 30

It’s all the best from BB30 and Press-Fit bottom brackets in one captivating package. This bottom bracket is designed for 30mm spindle cranksets. The key difference with PressFit 30 is how the bearings are fitted into the frame. Bearings are housed in nylon cups which will be pressed into the frames bottom bracket shell. PressFit 30 will feature an integrated seal, pre-assembled into the cups, to further prolong bearing life.

X-GlideR Chainrings

X-GlideR Chainrings are designed for an optimized shifting performance with the Yaw front derailleur. The stiffer rings (5mm 7075-T6 aluminum CNC-machined) feature upshift rivets with an advanced design adopted from SRAM XX. CNC machining allows for precision control of each tooth shape, ramp, and nearly every shifting feature of the chainring. The chainrings, chain, and front derailleur are designed as a single integrated system for optimized performance.

PressFit GXP

A variant of the external GXP bottom bracket, PressFit cuts weight by up to 40 grams and eases installation by allowing you to press the bearing cups into the frame instead of threading them. It requires no change to the crank spindle length and diameter.

Features

SRAM Road 11-speed Yaw compatible
Aluminum arms and machined spider for strength and improved stiffness
Alloy X-GlideR chainrings with advanced shift timing pins and ramps, which are optimized for shifting with the Yaw front derailleur

Specifications

Speeds: 11
Bottom Bracket Compatibility: BB30/PF30-68/73mm, BB30/PF30-68mm, GXP/PF GXP 68/73mm, GXP/PF GXP 68mm
Chainline: 47.5mm
Bottom Bracket Spindle Interface: GXP
Chainring Material: Aluminum
Bolt Circle Diameter: 110 BCD

Note: GXP cups NOT included.
