Shimano XTR WH-M9200 XC Race Carbon Disc 29-Inch Front Wheel

£622.49 RRP £829.99
Save 25%
In stock at our supplier's warehouse – despatched in 4-5 days
PRODUCT CODE: OCM3818
Attributes
ColourBlack
BoostBoost
Wheel Size29-inch
In-stock items ordered before 2pm are dispatched the same day. Free delivery over £50.
Thirty-day returns, free from any UK address.

About Shimano

Shimano

Shimano is a Japanese multinational corporation synonymous with cycling. Constituting 50% of sales in the global cycling market, and with their parts spanning across all types of bicycle, it is a highly reputable business that is constantly developing and innovating its assets.

Shop all Shimano
Details

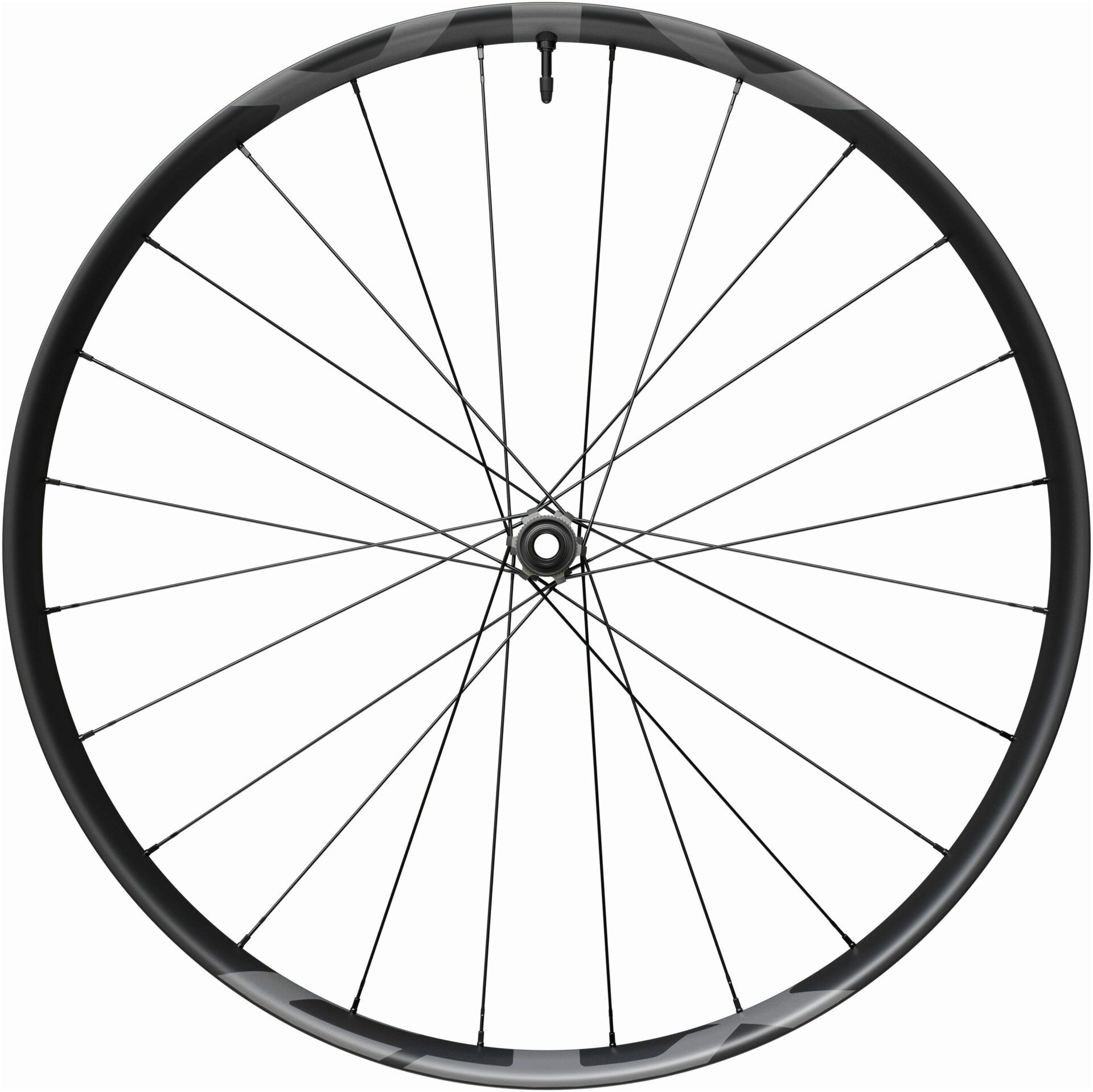

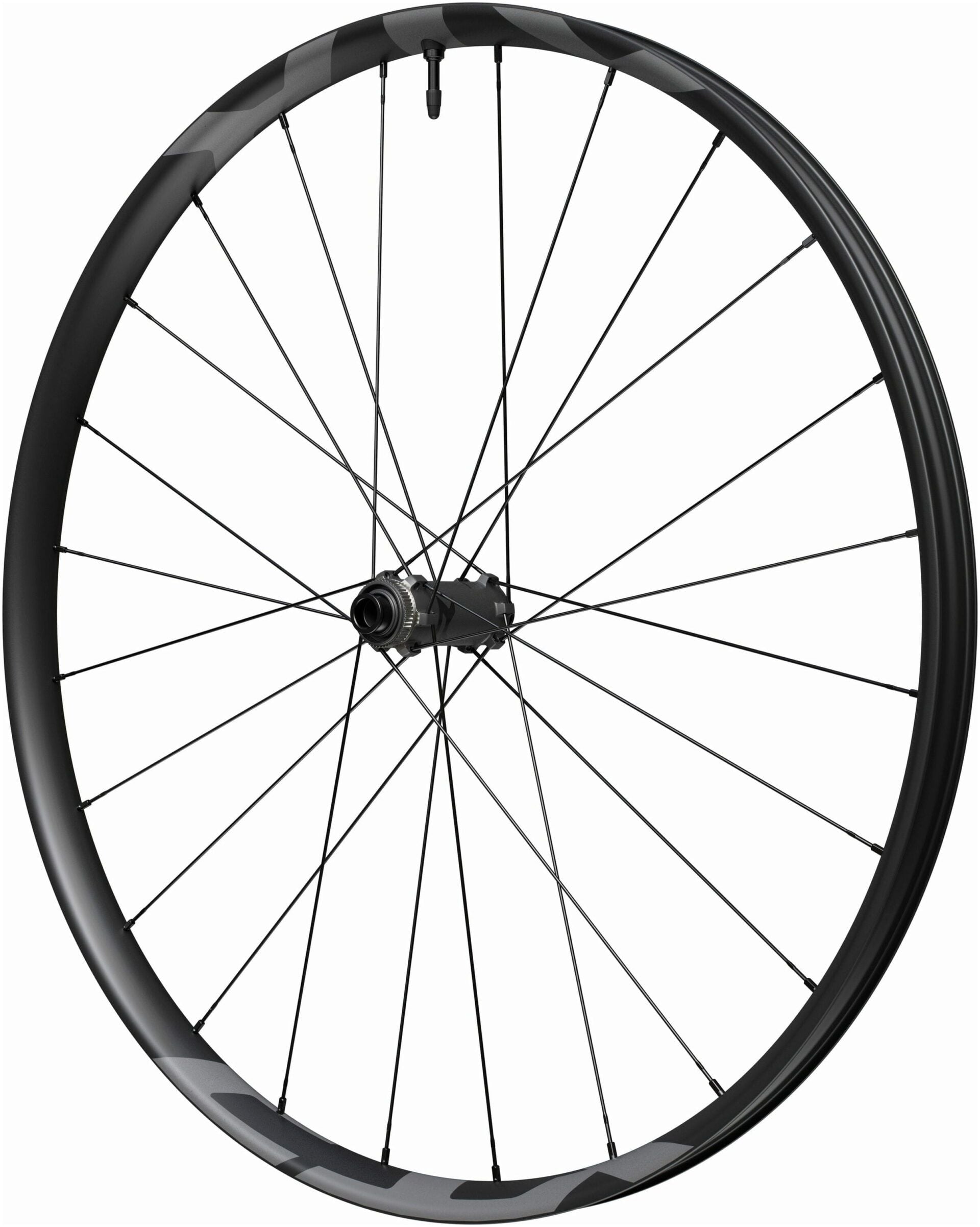

Shimano WH-M9200 XTR lightweight XC Race Carbon wheel, designed to meet the pro criteria.

Featherweight wheels designed for the XC racer (Or racer at heart), built around Shimano’s lightest-ever carbon tubeless 29.6mm hooked rim, laced with titanium straight spokes, and spinning on more reliable, higher-performing XTR hubs. Along with being the lightest production ever produced in the XTR family, WH-M9200 wheels also feature Centerlock brake mounts and MicroSpline to complete the full XC package.

Technology

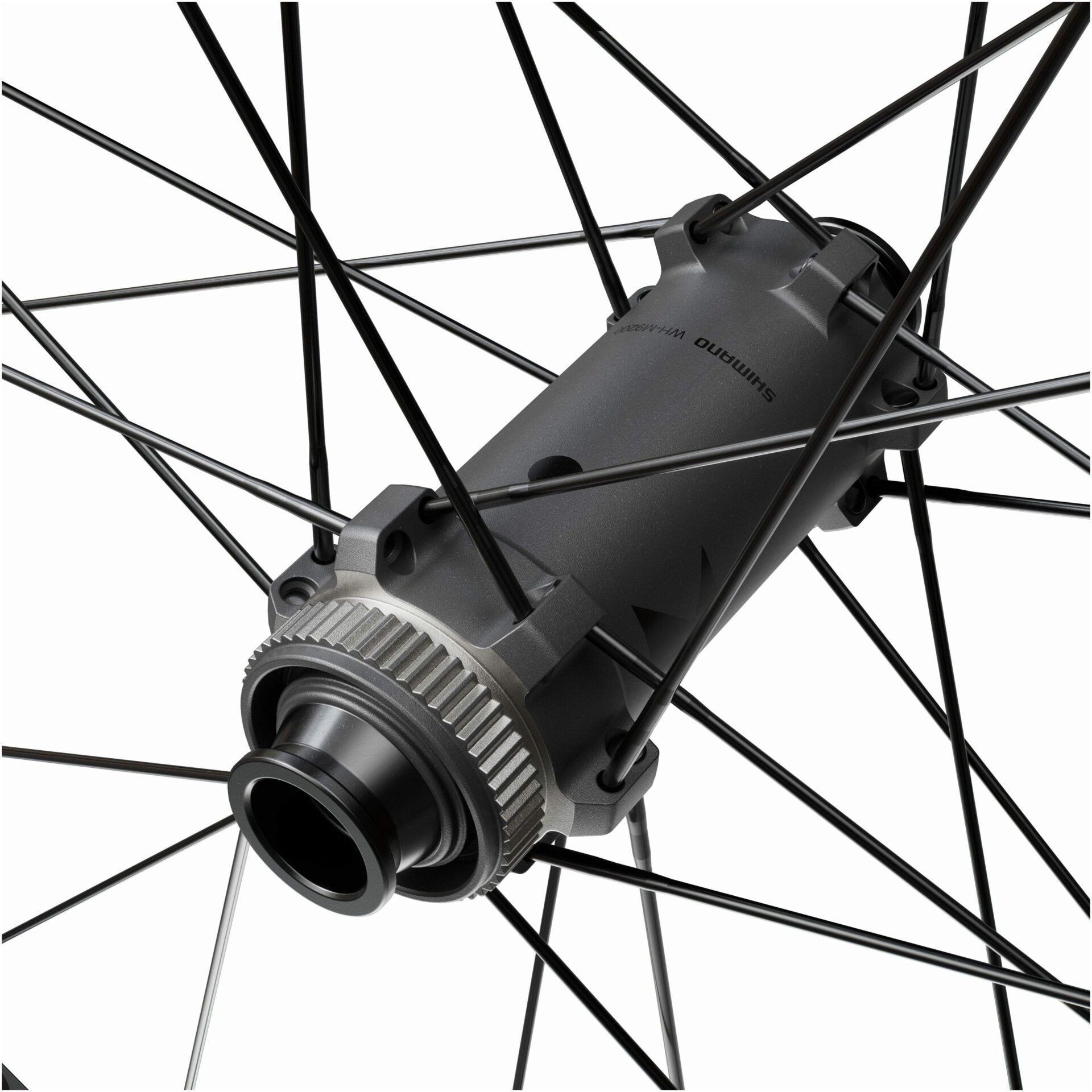

CentreLock

The CentreLock system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.

  • Light weight
  • CentreLock compatible hub has only spline mount and a lock ring. This means the lightweight of hub and rotor compared to 6-bolt mount system
  • Lock ring rotor mounting system
  • Allows easier and faster rotor installation. Easy maintenance
  • Secure fixing by spline mount
  • Improves braking efficiency

E-Thru

The tool-less type thru-axle skewer system optimises rigidity and weight balance and enables easy operation with a reliable internal cam mechanism. The 15mm thru-axle system is 15% stiffer torsionally and 25% stiffer in transverse shear than a traditional 9mm quick release front axle system. High rigidity is secured while keeping the optimum weight balance. The E-Thru axle hub system minimizes the distortion of suspension while maintaining lightweight for riding around sharp corners at high speed.

  • 15mm E-Thru axle system
  • Satisfies both smooth rotation and high rigidity for excellent bike control
  • Almost same stiffness as 20mm system
  • Lighter than 20mm thru-axle hub
Features

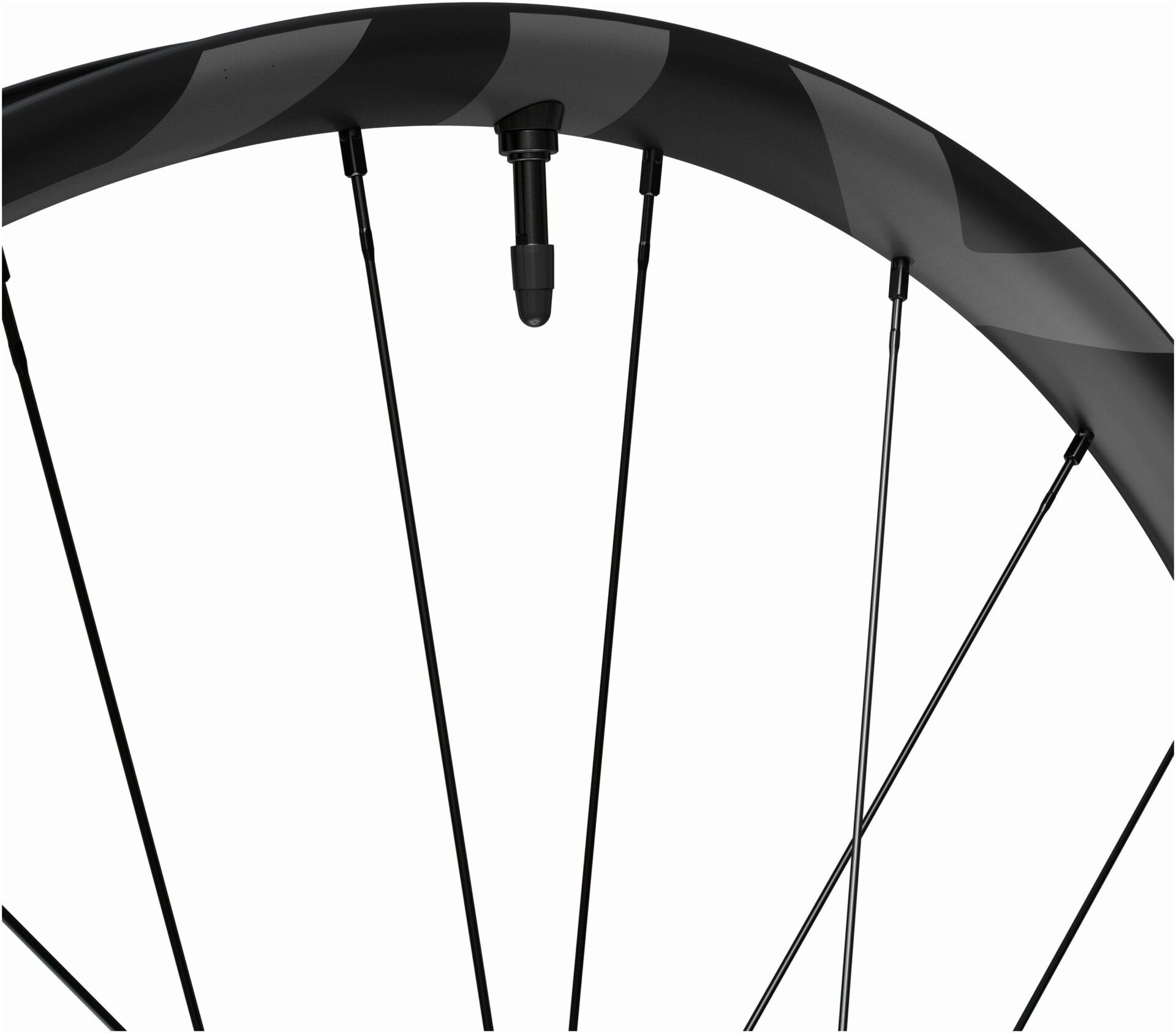

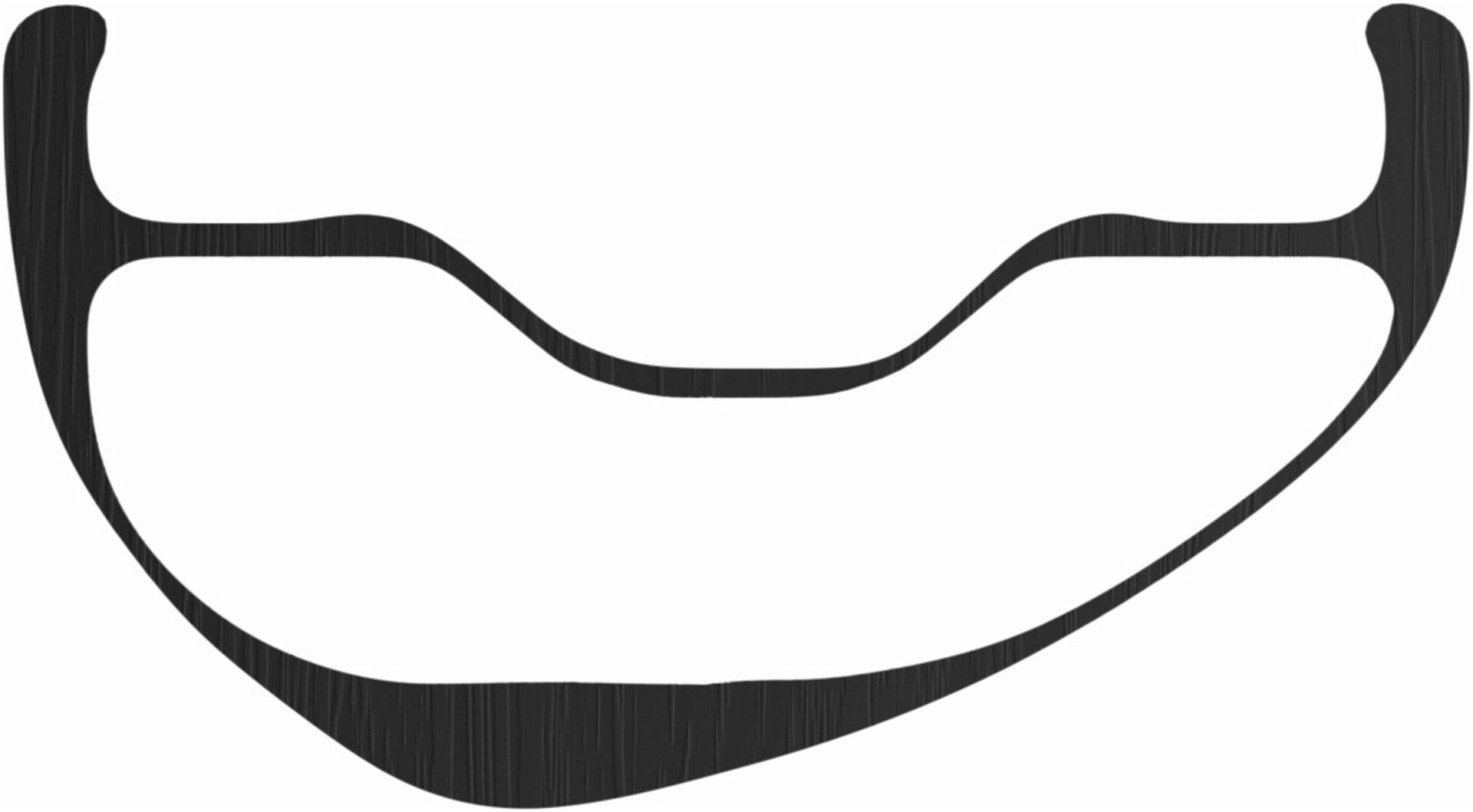

  • These race wheels are lightweight, strong and durable with a tubeless compatible hooked carbon 29.6mm internal rims
  • 24 titanium spokes
  • Stainless steel cartridge bearing with pre-load adjust for optimising sealing and ease of maintenance
  • Wide bearing placement gives excellent lateral rigidity further improving strength and durability
  • Forged then anodised alloy hub shell for maximum strength and long lasting good looks
  • Easy to use CentreLock Disc Rotor mount
  • Aluminium axle
  • For 110 x 15mm dropouts
