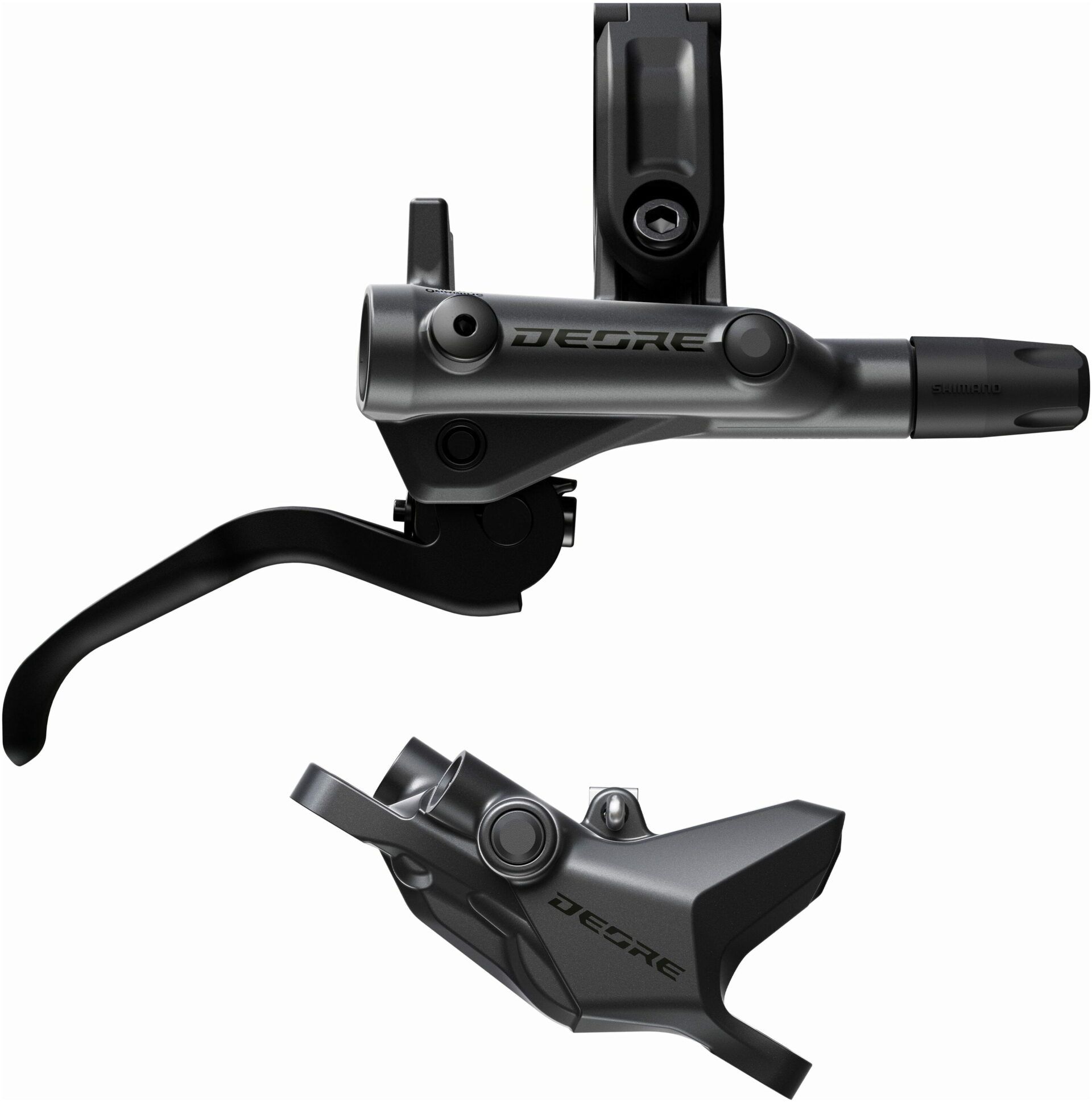

Shimano Deore BR-M6200 Disc Brake Lever With Post Mount Caliper

Shimano Deore M6200 fully bled hydraulic disc brake with easily adaptable post-style Caliper.

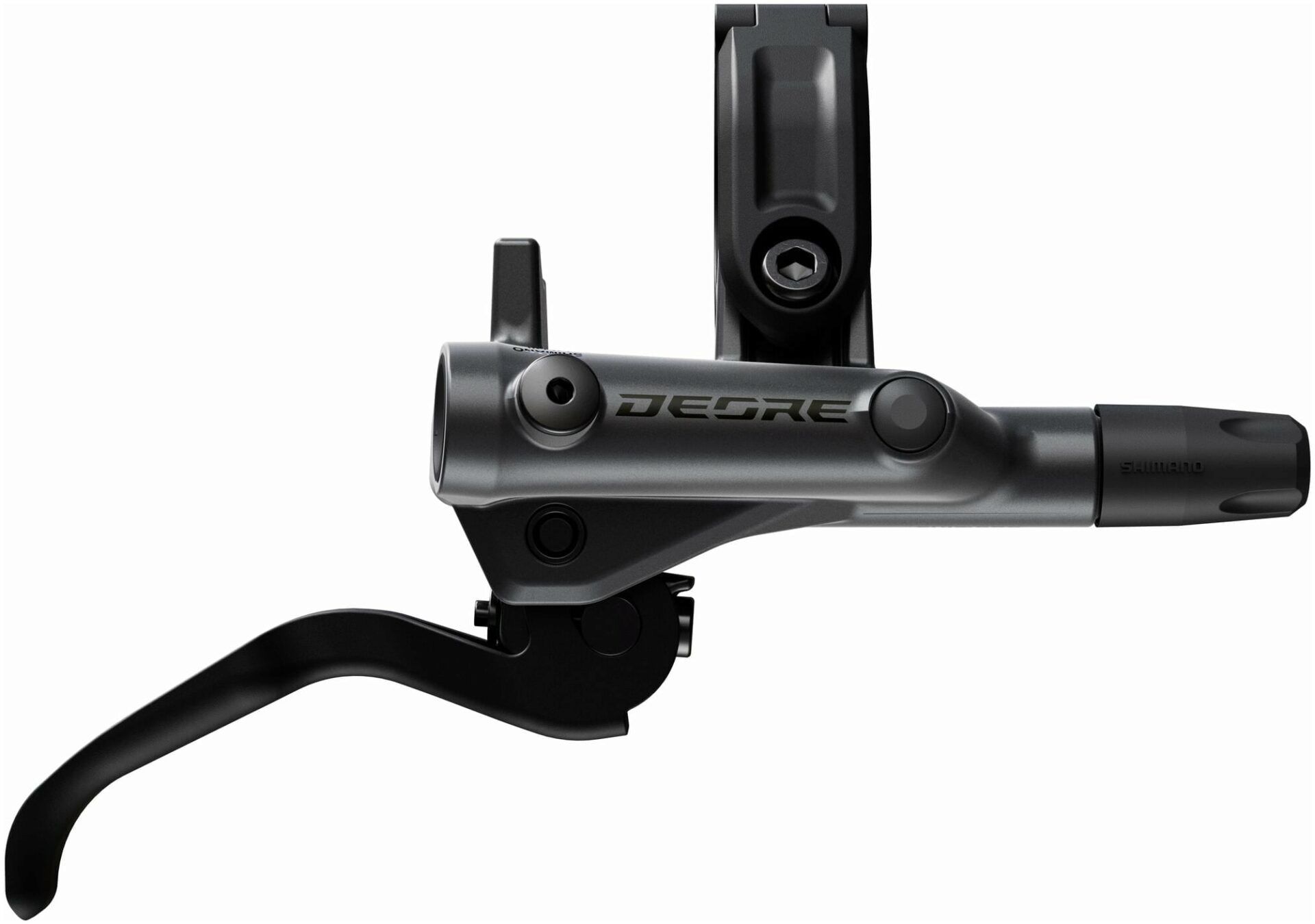

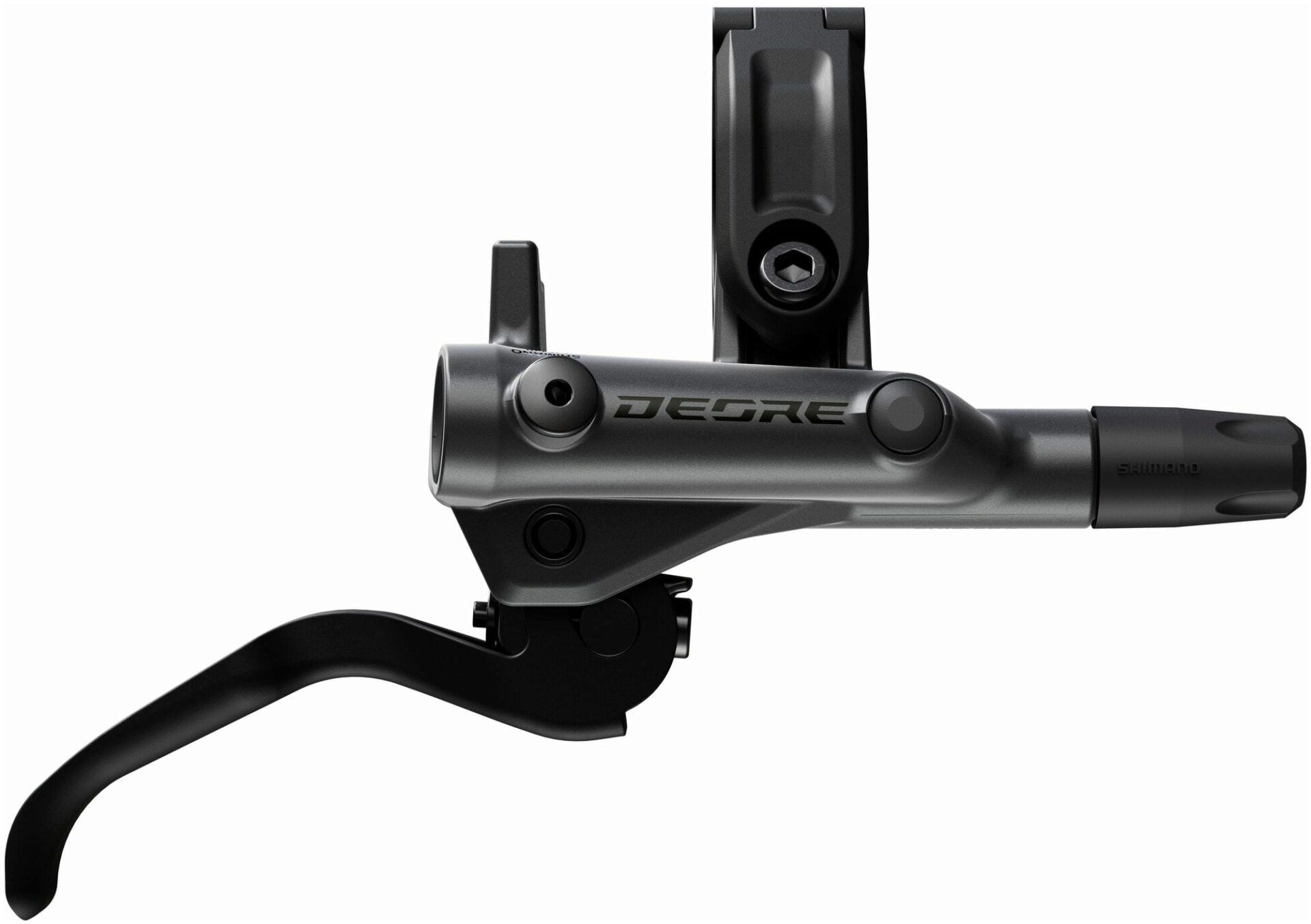

When you need reliably consistent braking action and a streamlined, clean appearance without shelling out big cash, the Deore M6200 brake lever delivers. Servo Wave serves up quick pad contact and an optimised power curve, and the new low-viscosity oil helps braking remain stable over a wide range of temperatures. It's also I-Spec EV compatible for full on-bar system integration.

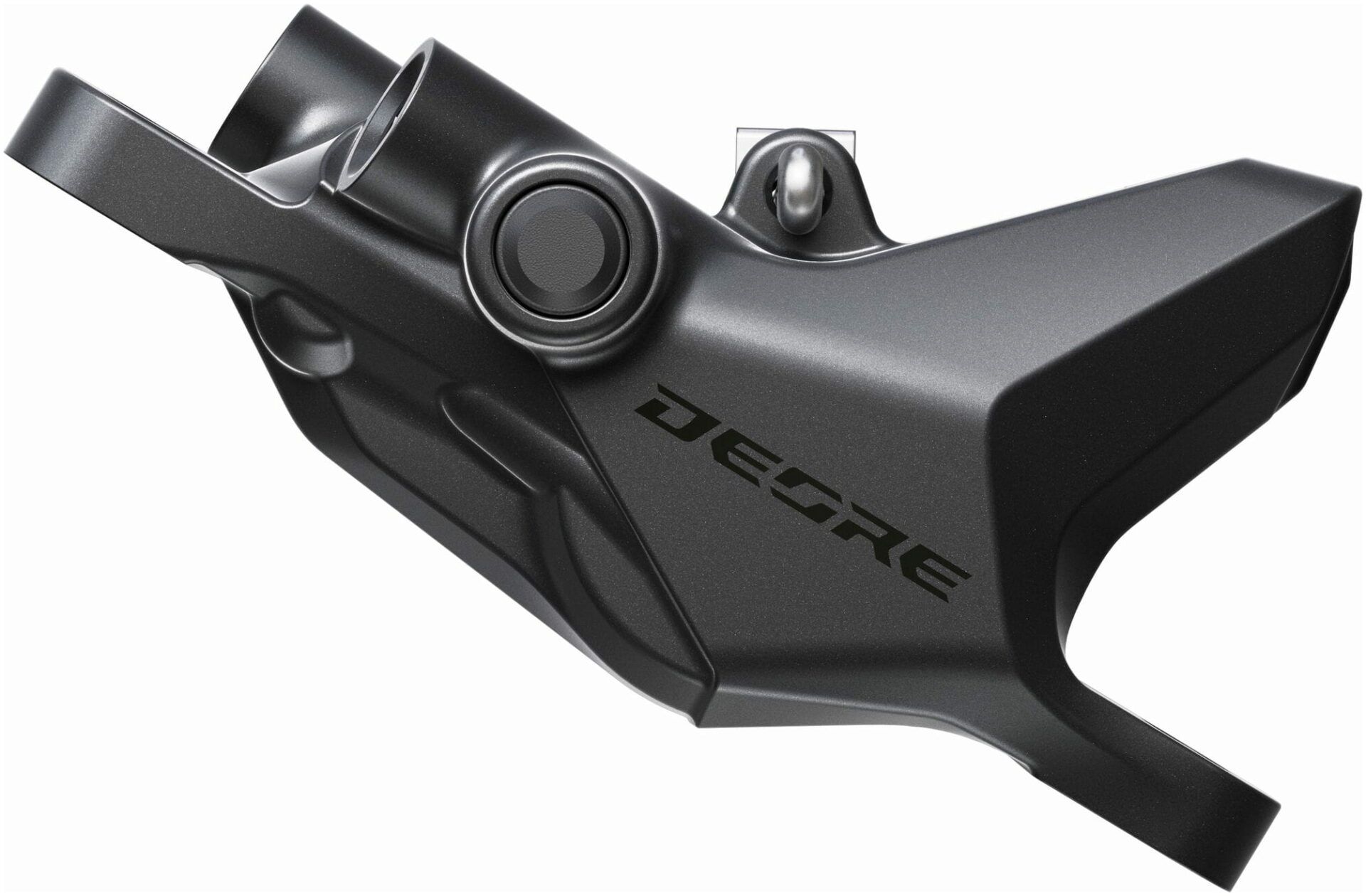

When weight is a bigger factor, the M6200 two-piston brake calipers just might be the ticket. They offer the same consistent braking and excellent modulation but shave weight than the four-piston M6220 model. The M6200 incorporates the same features as the entire caliper line, designed to keep braking stable over a wider range of temperatures.

Technology

Servo Wave Action

When you pull a Servo Wave brake lever, initial pad travel is fast, so little lever movement is needed to bring the pads into contact with the rotor. The power multiplication factor then increases rapidly at the pad-to-rim contact so more of the lever stroke is used to apply greater braking power with improved control.

I-Spec EV

I-Spec EV creates a clean and action-optimised cockpit that provides greater focus and flexibility for a wider range of riders.

• Wider adjustment range allows riders of various styles, preferences and body styles to adjust to the optimal position
• Ergonomic design, quicker lever access, and light operation enhance rider comfort and concentration

With its wider adjustment range, I-Spec EV levers can be adjusted to the optimal position to match a wider range of riding styles (Enduro / XC / etc...), rider preferences and rider anatomies (Hand and arm alignment).

I-Spec EV increases brake lever rigidity by moving the brake clamp position inward to create an extra point of contact between the bar and the lever. This additional bracing drastically increases bike control and braking engagement while maintaining space between the clamp and support point for other handlebar accessories.

Ice Technologies

Shimano Ice Technologies components deliver more consistent braking performance by reducing heat buildup in the system. This helps prevent brake fade, which can happen when a rider applies the brakes repeatedly and strongly over a short period of time, such as when descending a long, steep hill.

Shimano has adopted Ice Technologies disc brake rotor and Ice Technologies pad to realize the cooling technology for consistent performance. The clad disc brake rotor blade, which has a 3 layer-sandwich structure of stainless steel, aluminium and stainless steel, provides better radiation performance. Also, the radiation fin has been adopted for the pad. Moreover, the clad disc brake rotor blade and the radiator fin provide long pad life, less noise, less fade and lightweight.

Clad rotors as well as Clad Brake pads significantly reduce heat build-up in the brake system. This in turn reduces fading, which ensures consistent high performance even on long downhill stretches, It also results in a longer pad life and substantially quieter braking.

One Way Bleeding

"One Way Bleeding" was developed for quick and easy prevention of air in Shimano's hydraulic system. Shimano have streamlined the oil route throughout the system to prevent air bubbles from being captured in the system.

One way oil routing plus a funnel tool with mineral oil provides an easy and clean bleeding system.

Features

• Fully bled lever and Caliper comes without adapters or rotors giving you the freedom to customise to suite your bike
• Can be used with the revolutionary CentreLock rotor system which fits easily to CentreLock compatible hubs; alternatively conventional 6 Bolt rotors can be used all in a choice of 160mm, 180mm and 203mm
• Opposed 2-piston design reduces leading effect and optimal pad wear increases braking control
• Two piece Caliper design is both ridged and durable
• Hinged clamp design
• Ergonomic alloy brake lever for optimum comfort and performance
• For use with Low-viscosity mineral oil only that remains stable over a wider temperature range
• Shim-less mounting system allows for quick installation and setting up
• I-spec-II compatible
• Brake lever features reach adjustment for perfect custom fit
• The kit also contains resin pads (Can be used with sintered and Ice Tech pads), plus spare olives and insert should you wish to adjust the length of the cuttable hoses
