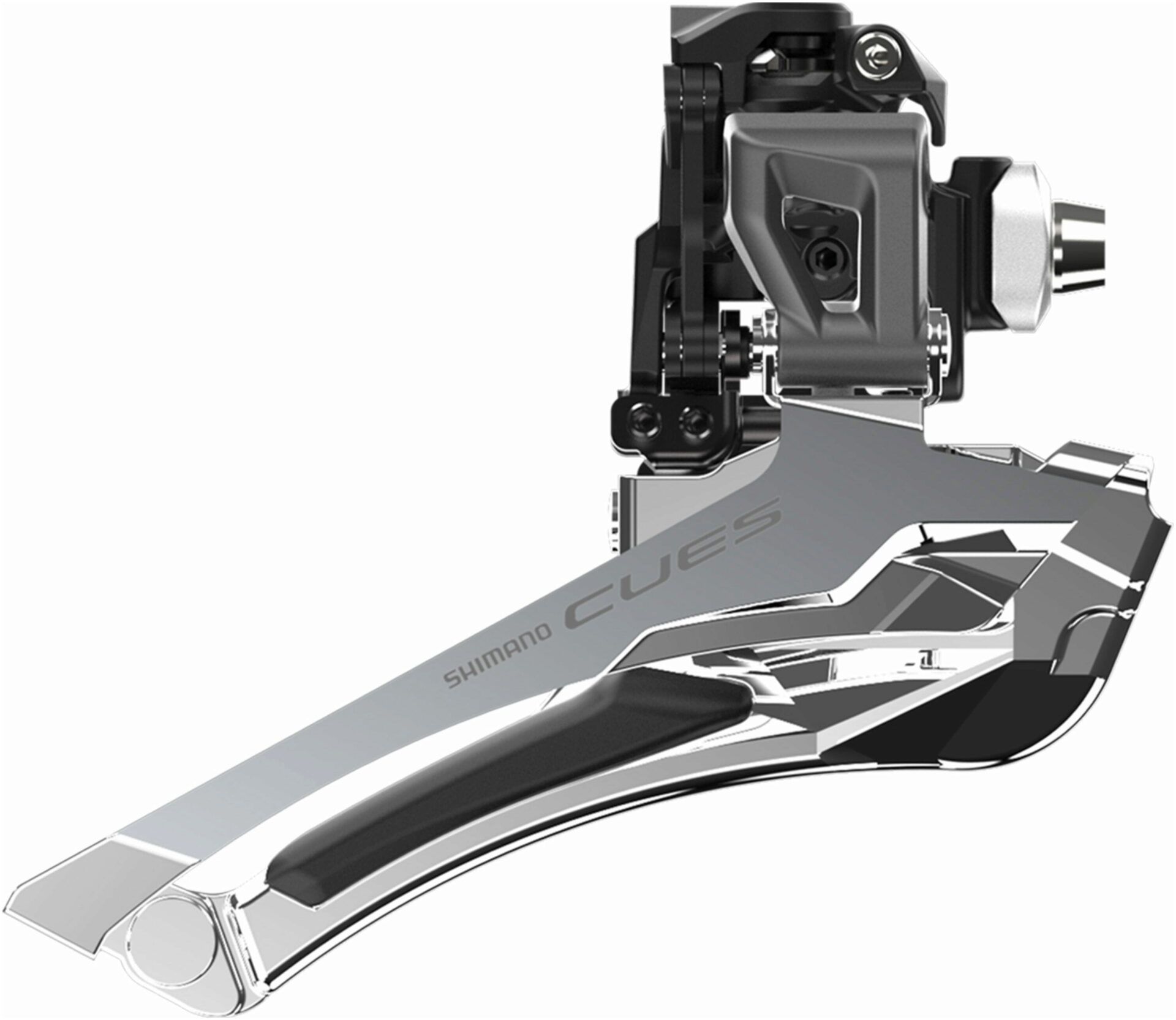

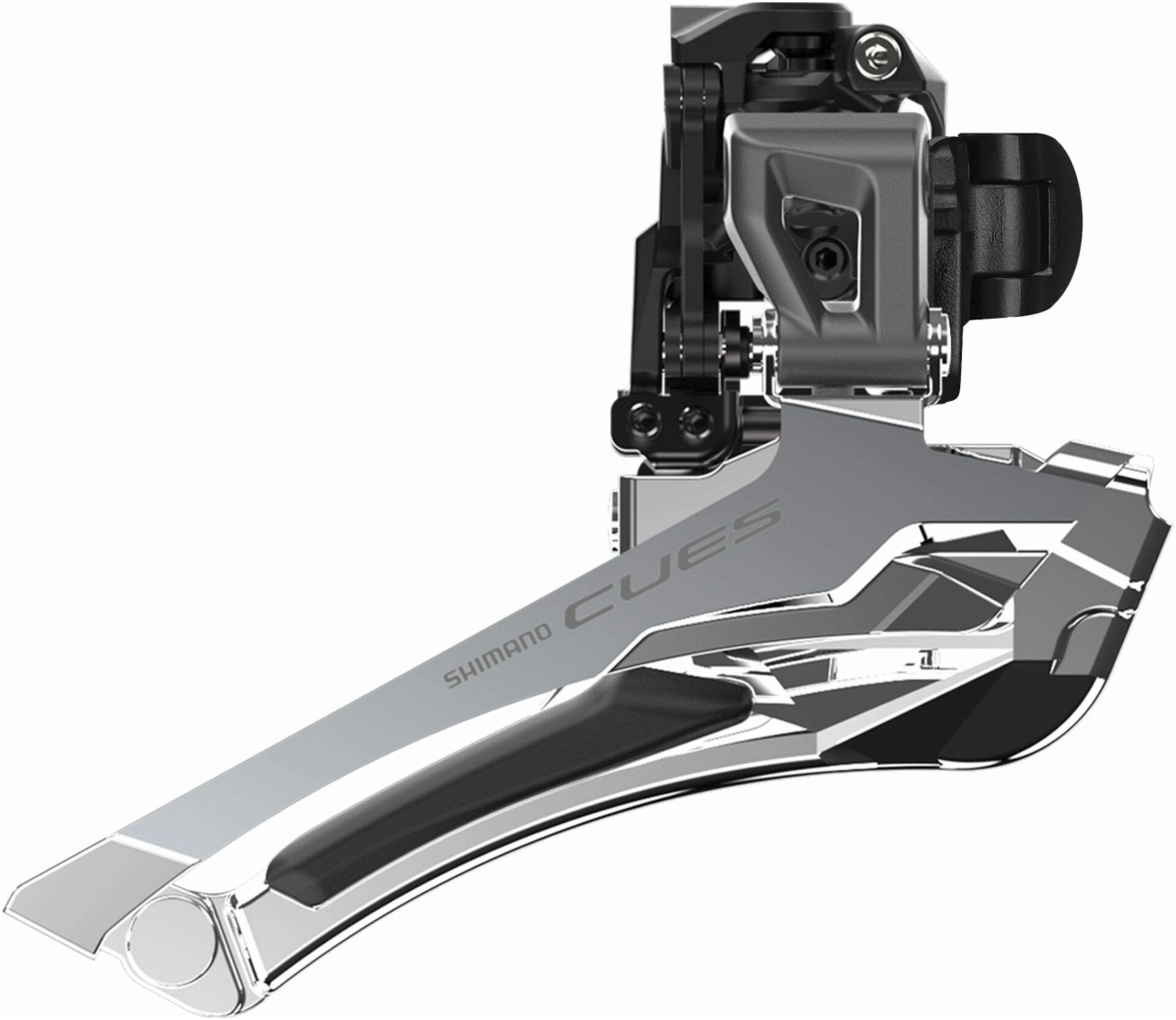

Shimano CUES FD-U6030 Double 10-Speed Front Derailleur
| Brand | Shimano |
|---|---|
| Colour | Silver / Black |
| Mech Option | Down Swing |
One FD for All CUES Drop Handle Bikes. The Shimano CUES U6030 Front Derailleur offers lighter front shifting operation and easier setup thanks to the toggle link construction and integrated cable tensioner. It features a 2.5mm outboard chain line design to allow wider tire clearance.
Features
- LinkGlide technology is very durable, up to 300% more durable than current Hyperglide drivetrain and maintaining smooth shifting
- Down swing, down pull derailleur
- Wide pivot link design for greater torsional rigidity improves shifting response and service life
- The toggle link construction delivers lighter front shifting with a smooth, natural shift action
- The chain line is 2.5mm wider than conventional road front derailleurs, allowing for greater tire clearance
- Braze-on mount and band-on mounts avaliable - band-on fits 34.9, 31.8 and 28.6mm with adapters
- For bike designs with 62-66 degree chainstay to seat tube angle
- For double 46-50 tooth chainring
- Compatible with 10/9-speed LinkGlide drivetrains
Specification
- Speed: Double 9/10-Speed
- Chainstay Angle: 62-66 Degree
- Top Gear Teeth: 46T, 50T
- Total Capacity: 16T
- Chainline: 47mm
