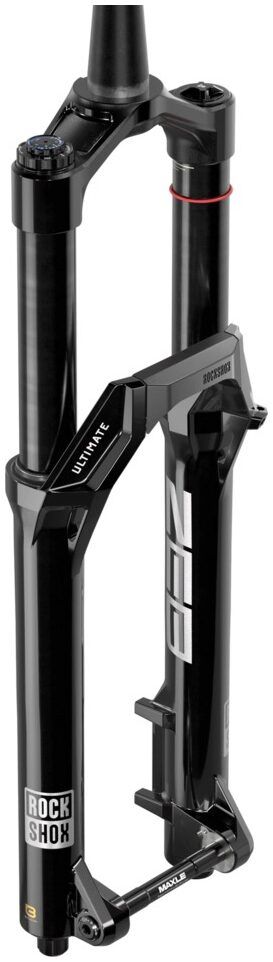

RockShox ZEB Ultimate Charger 3.2 B1 2026 Fork
| Brand | RockShox |
|---|
ZEB is built for the most extreme terrain-steep double-black runs, freeride features, and even the pedal back up if that’s in the cards. The all-new LinearXL air spring delivers a coil-like ride-supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out (ABO) for confident end-stroke control-giving you unwavering consistency and predictability. Found only in RockShox's Ultimate forks, ButterWagonTech ensures a constant supply of oil to the bushings, reducing friction, and maintaining smooth performance throughout the entire service interval. Intuitive HSC/LSC controls on the Charger 3.2 damper with ButterCups technology make setup fast, understandable, and easy to communicate. ZEB delivers the composure riders need to confidently pick their line and hold it-no matter how extreme the trail.
Features
- LinearXL air spring delivers a consistent and predictable ride feel backed by Adjustable Bottom Out (ABO) for end-stroke control
- ButterWagonTech ensures a constant supply of oil to the bushings, reducing friction and maintaining smooth performance throughout the entire service interval
- Charger 3.2 damper with new Rebound/Compression tunes that match LinearXL air spring, achieves virtually silent performance, keeping riders focused on the trail
- Control bezel with numbered Compression adjuster for intuitive adjustments-start at "0" and easily add or decrease damping
- Integrated short mudguard mount (ZEB Integrated Mudguard included)
- Graphics package-minimalist design, maximum impact
- ButterCups technology block 20% of high-frequency "trail chatter" to reduce hand and arm fatigue
- Low-grab SKF wiper seals deliver long-lasting fork performance and a smoother ride
- Maxima 920 blended 15w reduces overall fork friction

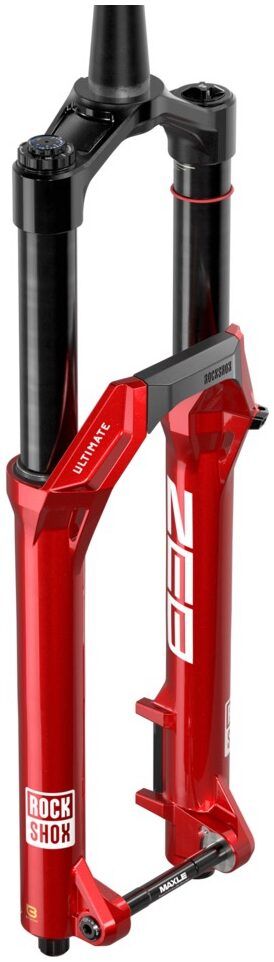

- Available in Electric Red or Ultimate High Gloss Black Signature colorways
Specification
- Wheel Size: 27.5", 29"
- Travel: 150mm, 160mm, 170mm, 180mm
- Damper Type: Charger 3.2 RC2 With ButterCup
- Fork Offset: 38mm (27.5"), 44mm (27.5"), 44mm (29")
- E-Bike Approved: E-Bike Approved, E-Bike Approved w/E-MTB Decal
- Steerer: 1.5" Tapered, 1.8" Tapered
- Axle: 110 x 15mm Boost TC Compt
- Upper Tube Type: 38mm aluminium
- Damper Adjust: Crown
- Volume Reducer: 0/3 Tokens, 0/4 Tokens, 1/4 Tokens, 1/5 Tokens
- Spring: LinearXL With ButterCup
- Max Tyre Width: 74.5mm
- Maximum Rotor Size: 220mm
- Minimum Rotor Size: 200mm
- Mudguard Compatibility: Bolt On - Short (Use AC-FEN-EDRO-B1)
- Bottom Out: Externally Adjustable Bottom Out
- Compression Tune: C5
- Rebound Tune: R55
- Weight: 2550g (29" Maxle Stealth 170mm Travel 1.5" Taper Steerer,
