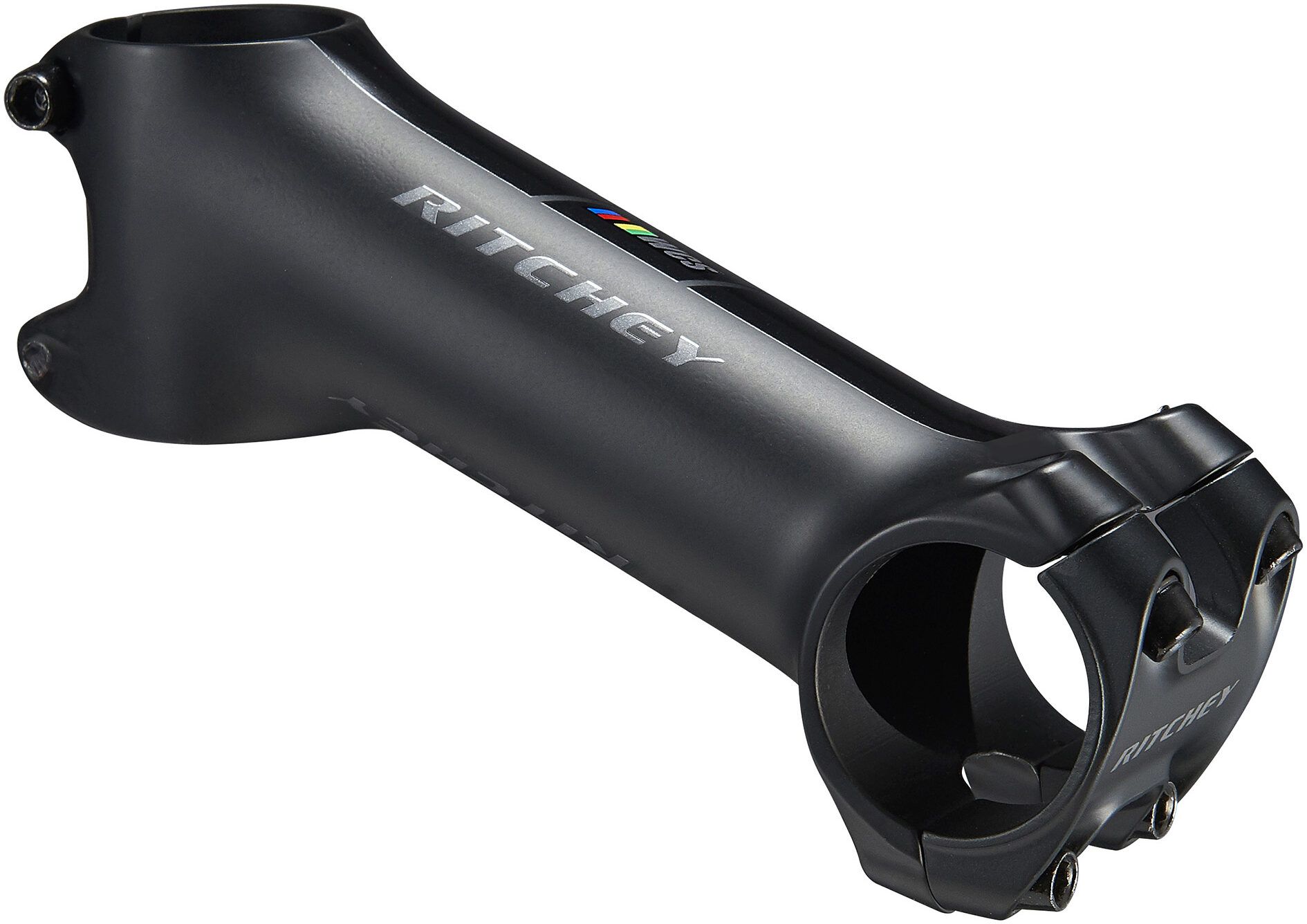

Ritchey WCS C220 25D Stem
| Brand | Ritchey |
|---|---|
| Colour | Black |
You really can have it all—the WCS C220 stem rivals the performance of the revolutionary C260 stem design, but it's quicker and easier to install and remove thanks to a press-fit handlebar clamp interface and forward-facing hardware.
The WCS C22 25D Stem offers 25° of positive or negative rise. First proven on the Ritchey Trail Stem, the C220 handlebar clamp design creates a more secure interface by wrapping a full 220° over the handlebar. Bolt forces are aligned with the clamp so that the stem body 'embraces' the handlebar, which is less prone to damaging lightweight bars. This clamp design allows for a lighter faceplate and stem body with no sacrifice in strength or stiffness.
The stem body is forged 2014 aluminum for further weight reduction. Premium quality CrMo steel bolts are used throughout.
Features
3D Net Shape Forging
Process that forces the material grain to follow the product shape for greater structural strength.
- 25° of positive or negative rise
- Stem body wraps 220° around bar clamping area, holding it in place for easy installation
Specifications
- Material: 2014 Alloy
- Bolts: Black Stainless Steel
- Angle: 25° / 65°
- Bar Clamp Diameter: 31.8mm
- Bar Clamp Width: 44mm
- Steerer Diameter: 1 1/8"
- Steerer Height: 46mm
- Weight: 136g (100mm)
