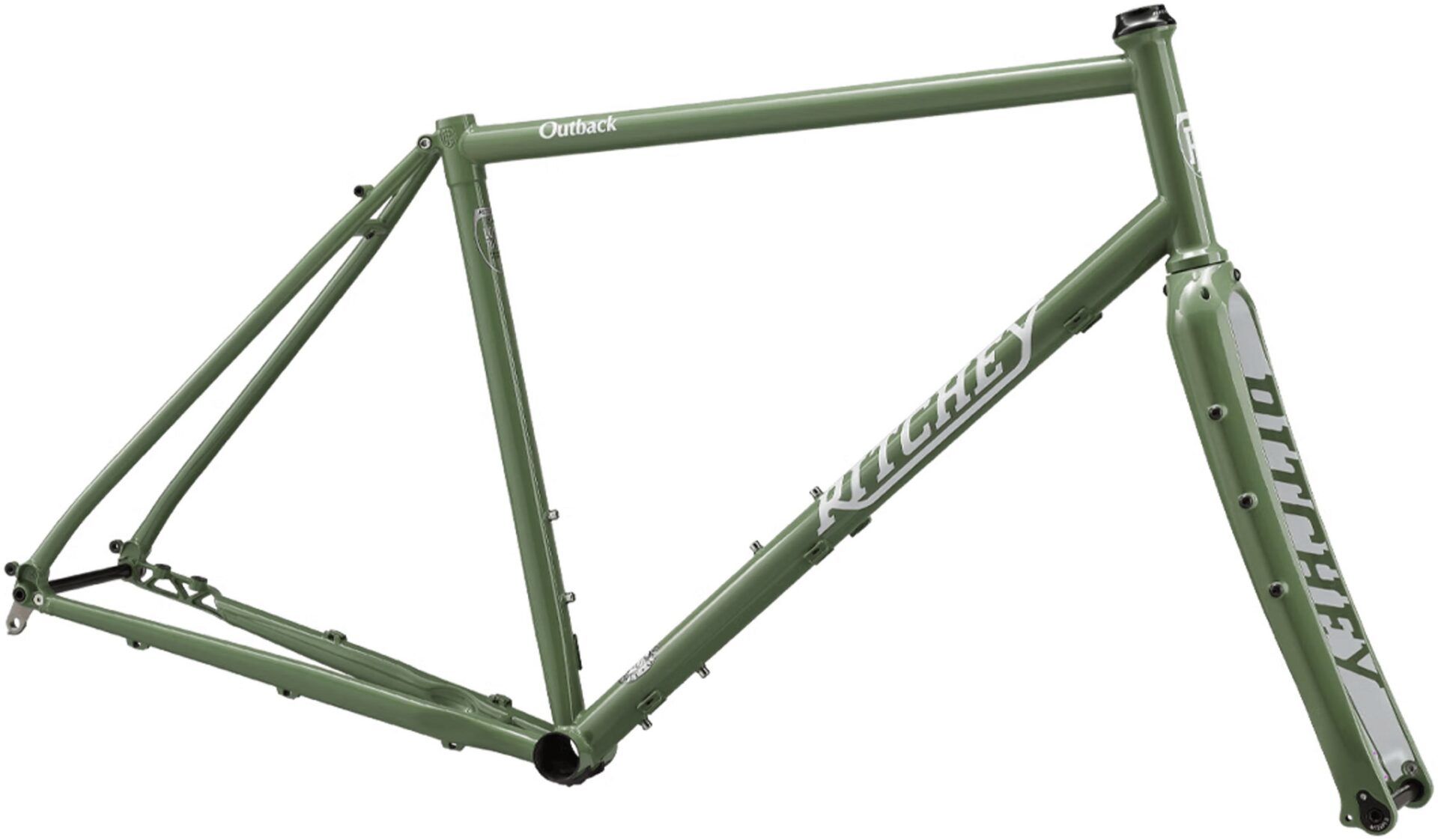

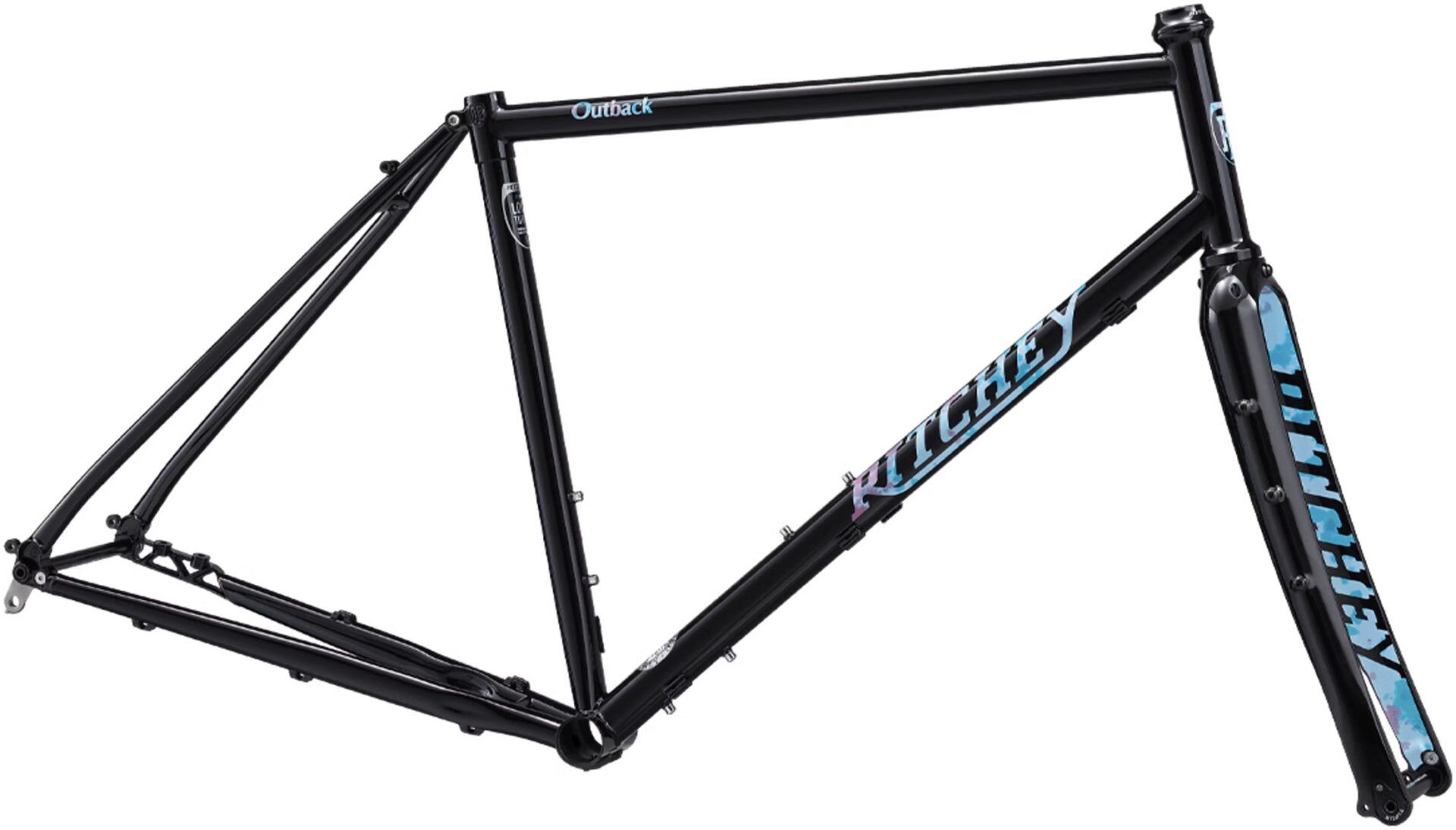

Ritchey Outback 2025 Frameset
- In stock On the shelf in our own warehouse. Order before 2pm and it is despatched the same working day; bikes we build are built, safety-checked and despatched in 2-3 working days.
- In stock with our supplier Not on our shelves, but our supplier has it or it is already on its way to us. We bring it in as soon as you order, and the despatch estimate shown allows for that.
- Out of stock Neither we nor our supplier has it right now. Where a date is shown, more is on order and you can order now to secure one from that delivery.
- Stock to be confirmed Not on our shelves, and our supplier does not send us stock figures for it, so we cannot say how soon we could get one. Use "Check availability" and we will ask them and email you back.
Seen it cheaper? Ask us to price match
Attributes
| Suitable for | Everyone |
|---|---|
| Wheel Size | 700c |
About Ritchey
Details
Tom Ritchey rides about 10,000 miles (16,000km) per year, mostly off-road. Combine that with more than 50 years of crafting bicycles, and it's no wonder that the Outback is an icon in the gritty world of gravel and adventure cycling.
Standout features for this edition of the 2025 Outback include internal routing for a dropper post, a rack mount on the fork crown, and internal dynamo routing. Aurora and Winter Sage colorways offer riders more options to style their ride beyond the bike's existing practical and adaptable features, but the "big" news is, this Outback also comes in size XXL.
Bikepacking, road and off-road, you name it…the Ritchey Outback is designed to do it all.
Technology
WCS Logic Tubing
Ritchey's proprietary and triple-butted steel tubing developed specifically for the TIG welding process to Tom's specifications.
Multipurpose Mounts
Triple mounts on each fork leg offer the ability to carry...well, anything!
Integrated Carbon Crown
Sleek integration with Ritchey headsets and the added benefit of reducing stress at the steerer crown interface.
Features
- Material heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
- Ultra-light forged and machined straight 1-1/8" headtube
- Electrophoretic Deposition (ED Coat) treated for corrosion resistance
- Seat tube clamp size: 28.6mm (2.5Nm max for derailleur clamps and chain guides)
- 27.2mm seat tube with integrated seat collar (Max torque setting: 6Nm)
Specification
Frame
- Bottom bracket: 68mm - English threaded
- 142mm spacing (12mm alloy thru-axle included)
- Crankset min/max ring size - single36 to 46 Tooth / double: 46/30t to 50/34t
- Can accommodate 1X or 2X chainrings
- Chainline: 49mm
- Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)
- Bottle cage mounts: 3
- Rack and mudguard mounts
- Stealth wire routing for semi-wireless Di2 groupsets
- DSP internal (Seat tube only) routing available
- External cable routing
- WCS headset included (Upper IS42/28.6 - 16mm stack height | lower IS42/30)
- Replaceable stainless-steel derailleur hanger
Fork
- New Ritchey Carbon Adventure Fork with multi-purpose, rack and mudguard mounts
- 1-1/8" straight steerer with integrated 45-degree crown race
- Steerer length: 300mm
- Fork length: 390mm
- Axle-crown: 393mm
- Rake/Offset: 50mm
- 100mm spacing (12mm alloy thru-axle included)
- Fork max payload 3kg per side
- 30mm maximum spacers below stem
Tyre Compatibility
- Wheel and tyre compatibility 700 x 48mm or 650 x 2.0in (Depending on tyre/rim manufacturer)
- Frame spacing: 58mm
- Fork spacing: 60mm
Brake Compatibility
- Flat-mount brakes front and rear 140mm (160mm max - adaptors available separately)
- Frame flat-mount bracket height: 10mm
Extras
- Sizes: XS / S / M / L / XL / XXL
- Frame weight: 2175g (Size L - without thru-axle)
- Fork weight: 445g (With uncut steerer / not including axle)
