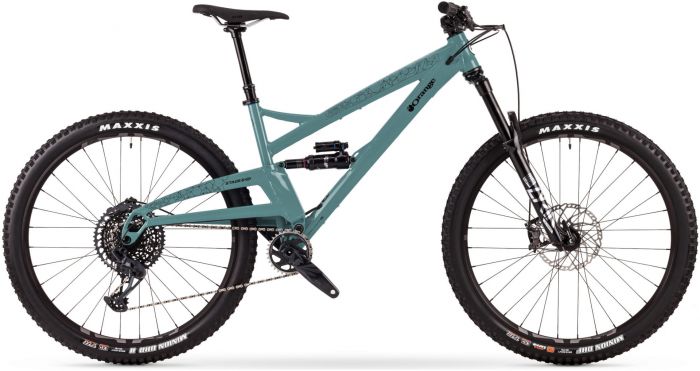

Orange Stage 6 Evo Super S 2024 Bike
Brand | Orange |
---|---|
Suitable for | Everyone |
Wheel Size | 29-inch |
This Is The Bike Where We Want F.A.F.
“Hair raisingly fast, with well-balanced handling” was the brief. We reckon the Stage 6 Evo is the bike to raise the hairs on the back of your neck before setting you straight back to cool, calm and collected. If you love the feeling of dropping into a fast trail with the bike accelerating beneath you, the track’s texture coming up through the contact points and the suspension flowing over the rocks and roots, then this is the bike for you. No traction control button, just full-on sport mode - you're welcome.
Full on Evo from Orange means you have honed geometry with decades of development and thousands of miles of test riding. The Stage 6 Evo is an aggressive trail bike with 29” wheels, designed to take a 150mm fork, with 140mm of rear wheel travel. This bike is fast, fun, and more than happy to ride terrain more aggressive than its travel numbers would suggest.
With the emphasis placed firmly on geometry and the incredible performance benefits that brings, the Stage 6 Evo could be the only bike you’ll ever need. The frame features our new asymmetric swingarm construction which improves stiffness and strength, a more progressive suspension curve, offset bearing housing to clear the chain-ring, allowing for a more neutral pivot position. The bolt-thru rear axle now threads into a UDH gear hanger – we believe this is a promising new 'standard’ and we approve of. UDH is universally available, simple and robust – a great step forward.
Neat features that we’ve also added to the new Stage 6 Evo frame include accessory mounts under the top-tube, to support the oodles of new and innovative accessories coming onto the scene. When you find your favourite, you’ll be good to go.
And so, what's F.A.F? We'll let you work it out.
Features
- Brand New Lightweight Frame Handbuilt in Britain
- 5 year frame warranty with Limited Lifetime Crash Replacement
- New Aggressive Evo geometry optimised for 150mm front/140mm rear travel
- Asymmetrical swingarm with increased longitudinal stiffness
- New Progressive suspension kinematics
- More neutral pivot location allowing less drivetrain/suspension interaction
- Low position Asymmetric pivot – neutral suspension feel
- Off-set pivot for chainring clearance
- Geometry for reduced offset fork
- New Improved dropout with UDH gear hanger
- Boost 148 rear hub spacing
- New Top tube accessory mounts
- Bottle cage mounts
- Internal cable/hose routing
Specifications
Frame and Forks
- Frame: 6061-T6 Monocoque UK Formed Custom Aluminium Tubing.
- Fork: RockShox Lyrik Ultimate 150mm 29
- Swingarm: Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
- Rear Shock: RS Super Deluxe Ultimate 210 x 55mm
Drivetrain
- Rear Derailleur: Shimano SLX 12 Speed
- Cassette: SRAM 1230 Eagle 12 Speed
- Crankset: SRAM GX Eagle 32 Tooth
- Bottom Bracket: SRAM DUB
- Chain: SRAM NX Eagle
- Chain Device: Strange Top Guide
Braking/Shifting
- Brakes: SRAM Guide RE 180/180mm
- Gear Shifters: SRAM SX Eagle
Wheels
- Wheelset: GW Hub, HG, E13 Rims - 6 PAWL HUBS 29
- Tyres: Maxxis Minion DHR II 29
Finishing Kit
- Headset: FPD 49mm / 56mm zerostack
- Handlebar: Raceface
- Stem: WTB Silverado SL
- Seat Clamp: Strange Bolted
- Grips: Strange Grappler Lock-On
- Saddle: WTB Silverado SL
- Seat Post: KS Seatpost
