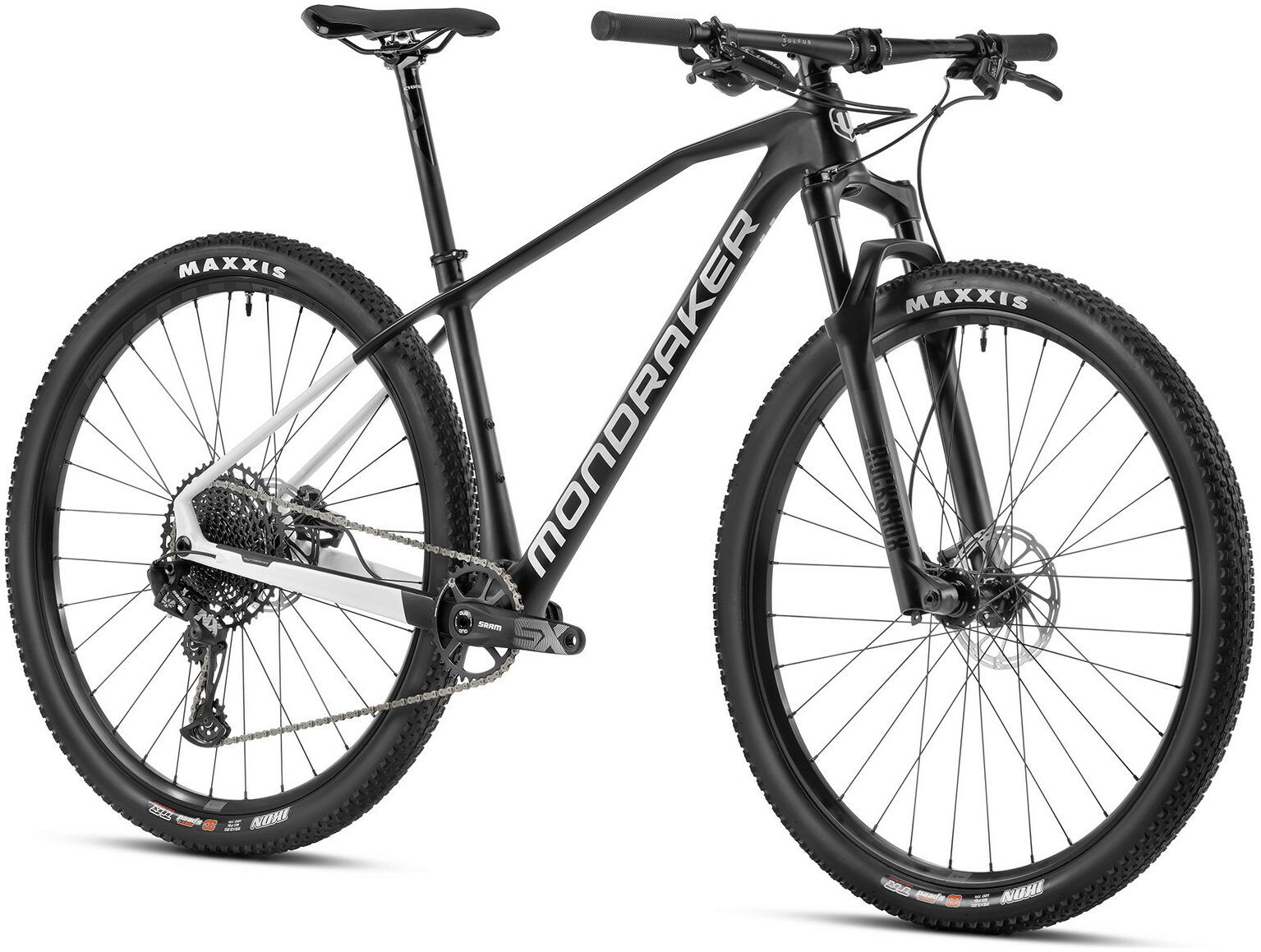

Mondraker Chrono Carbon 2023 Bike

Rigid bikes are your thing and you’re looking for a bike to compete on or to enjoy day to day excursions in the mountains. The Chrono Carbon combines lightness, agility, traction and an extra of comfort thanks to its STEALTH FULL Carbon frame. Without a doubt the Chrono Carbon benefits from the knowledge we’ve acquired over the more than 20 years that we’ve been manufacturing bikes, and the many more years we’ve been proven specialists in Carbon manufacture. That expertise has allowed us to optimize our FORWARD GEOMETRY for XC on the Chrono Carbon and we’ve complemented that further with quality components to ensure its perfect operation in any situation and under any circumstance.

Specifications

Frame and Forks

• Frame: Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12 x 148mm rear axle, Comfort Flat chainstays (Flatstays) design
• Forks: RockShox Judy Gold RL 29", 100mm, Motion control, Solo Air, tapered steerer tube, Boost 15 x 110mm axle, 30mm aluminum stanchions, offset 51mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload
• Headset: Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8 x 30.5 x 8 x 45º x 45º, bottom 51.9 x 40 x 8 x 45º x 45º

Drivetrain

• Crankset: SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, Small size: 170mm, Medium / Large / X-Large size: 175mm
• Bottom Bracket: SRAM DUB BSA, sealed bearings, 73mm
• Rear Derailleur: SRAM NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1 x 12 Speed, X-actuation 1:1
• Cassette: SRAM XG-1230, 11-50 Tooth, 12 Speed
• Chain: SRAM SX Eagle, 12 Speed, Powerlock

Braking/Shifting

• Shifters: SRAM Trigger SX Eagle, 12 Speed, X-Actuation 1:1
• Front Brakes: SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear Brakes: SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake Levers: SRAM Level, tooled reach adjust, lever pivot bushings

Wheels

• Rims: MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
• Front Hub: Formula DC711, Boost 15 x 110mm, sealed bearings, IS 6 bolts
• Rear Hub: Formula MST148S-4SB, Boost 12 x 148mm, sealed bearings, IS 6 bolts
• Spokes: Mondraker XC Series, steel rail
• Front Tyre: Maxxis Ikon 29 x 2.20", 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead
• Rear Tyre: Maxxis Ikon 29 x 2.20", 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead

Finishing Kit

• Handlebars: Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Grips: Onoff Twin, 1lock-on, 135mm
• Stem: MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: size Small: 60mm, size Medium: 70mm, size Large: 80mm, size X-Large: 90mm
• Seatpost: Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
• Saddle: Mondraker XC Series, steel rail
• Pedals: Not Included
