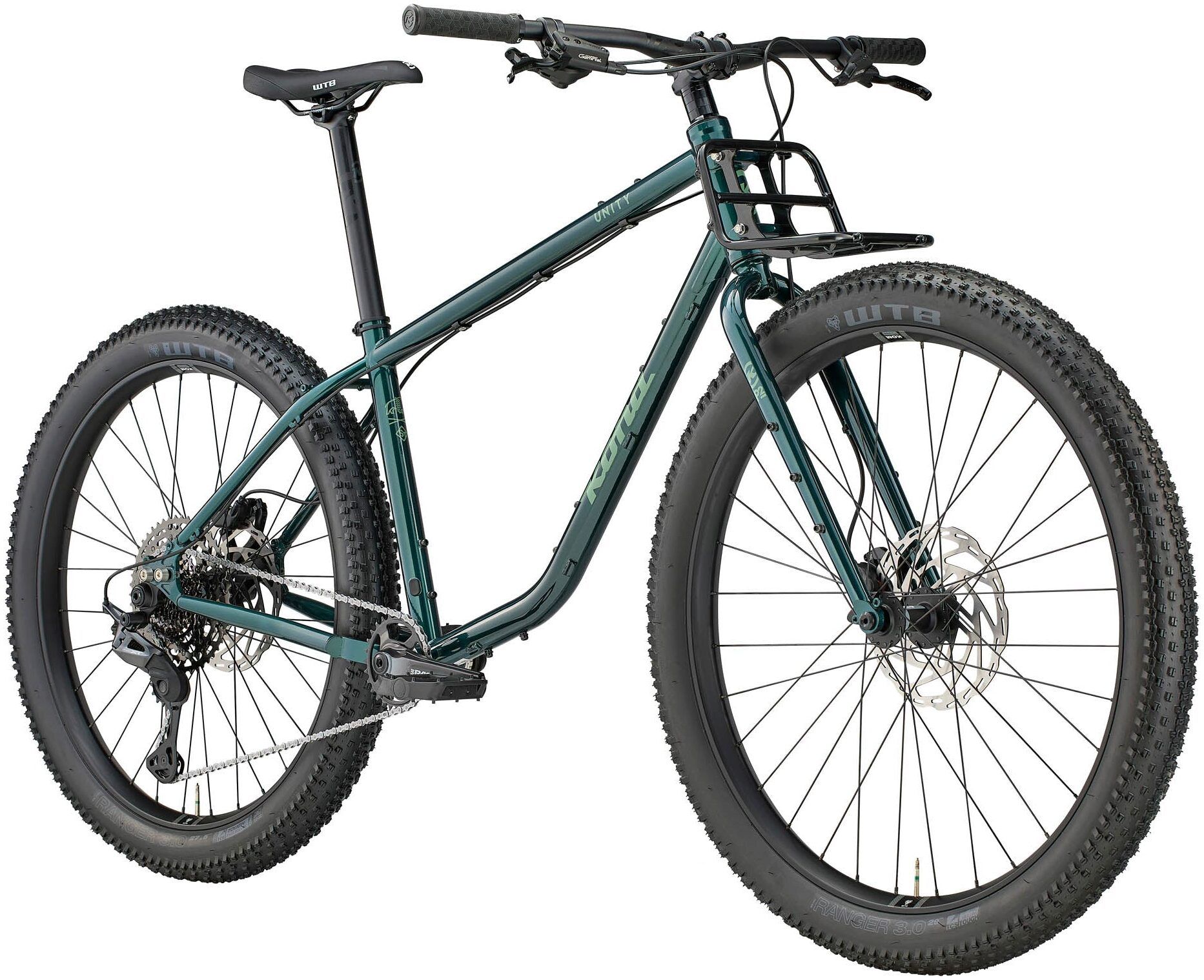

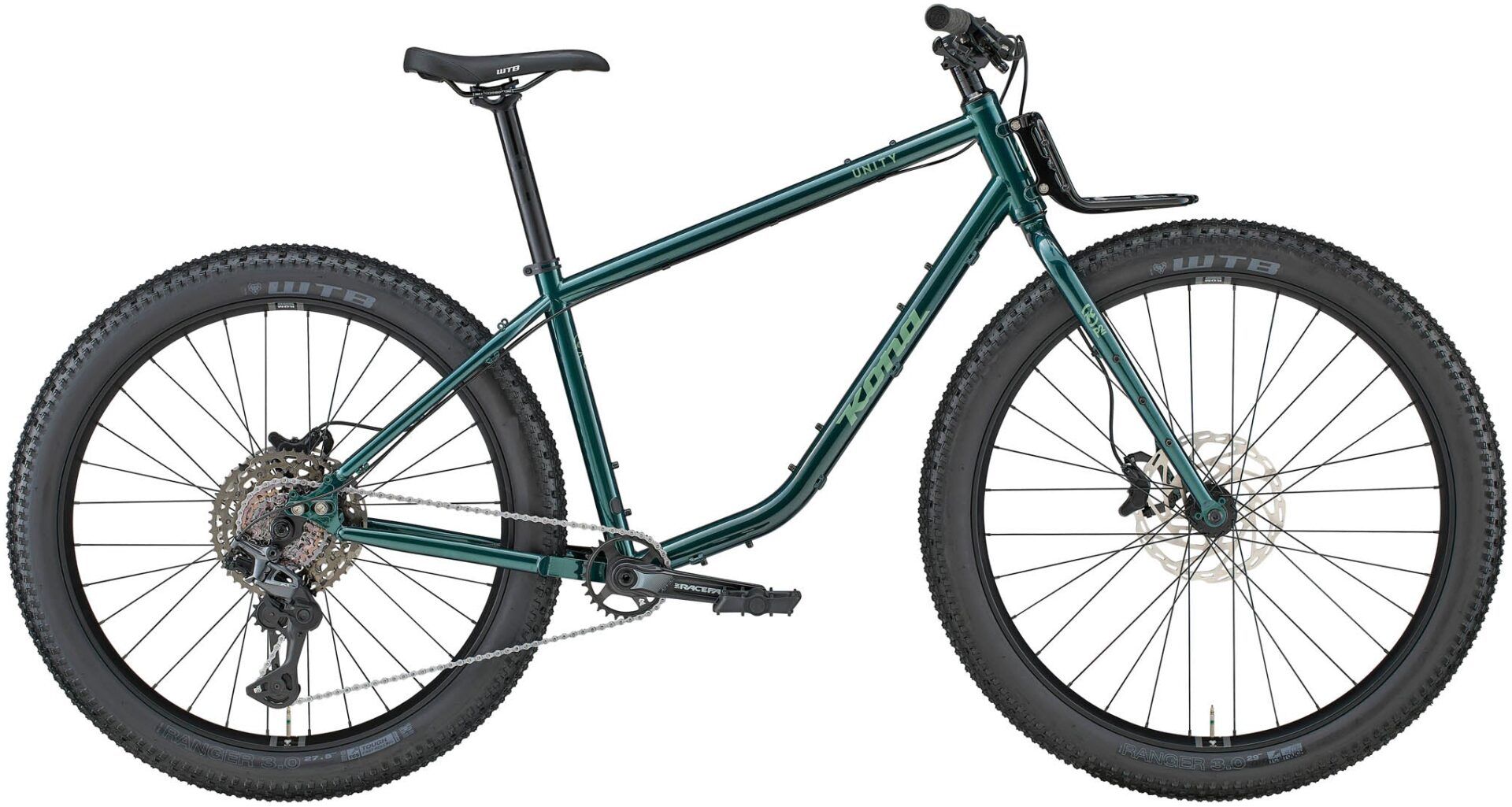

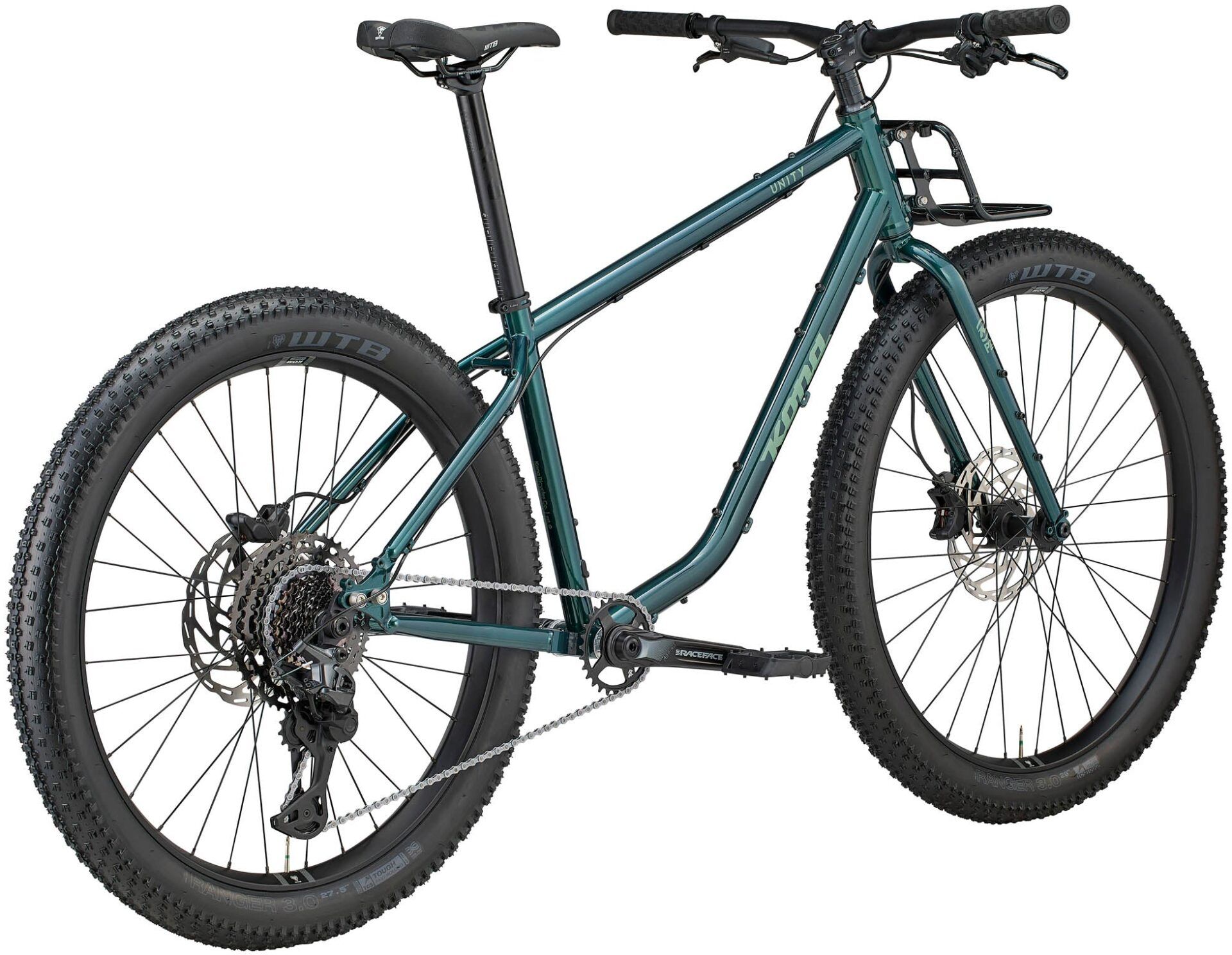

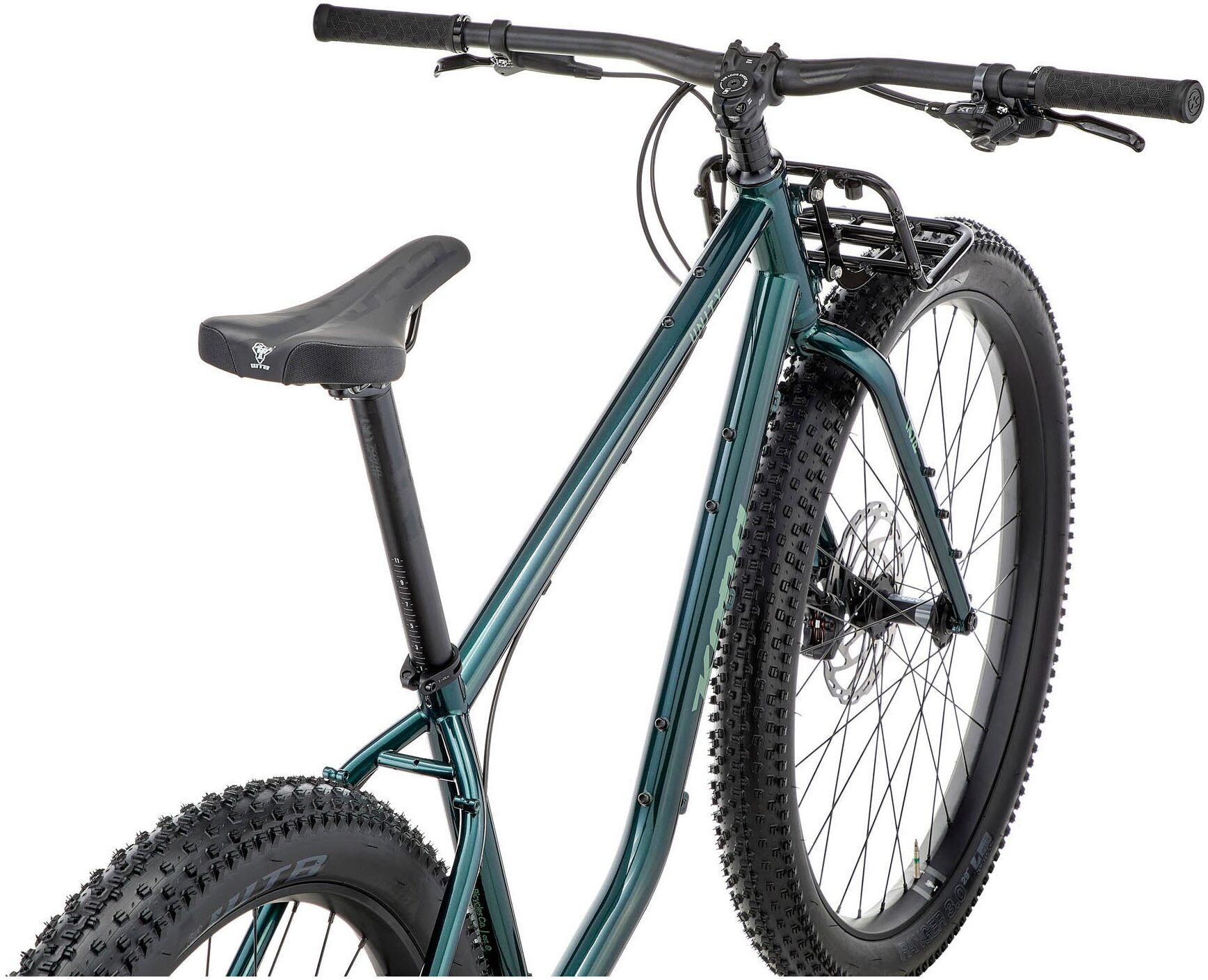

Kona Unity 2027 Bike
| Brand | Kona |
|---|---|
| Colour | Gloss Metallic Everglade |
| Suitable for | Everyone |
| Wheel Size | 27.5-inch Rear, 29-inch Front |
If you dream of bikepacking, you dream of the Unity. It is a mountain bike built to carry more, wander farther, and keep going when the phone signal is long, long gone. Mixed wheels and big tyres keep it planted and capable, while load-optimised geometry keeps the ride predictable when you have packed everything but the kitchen sink.
An oversized front triangle leaves plenty of room for a proper frame bag, and the custom integrated front cargo rack is ready for the rest. Load it up for a week in the mountains, strip it down and rip your local trails, or build the off-grid battle cruiser of your dreams. Mountain bike, gravel bike, touring machine: the Unity does not really care, it just wants to go.
Features

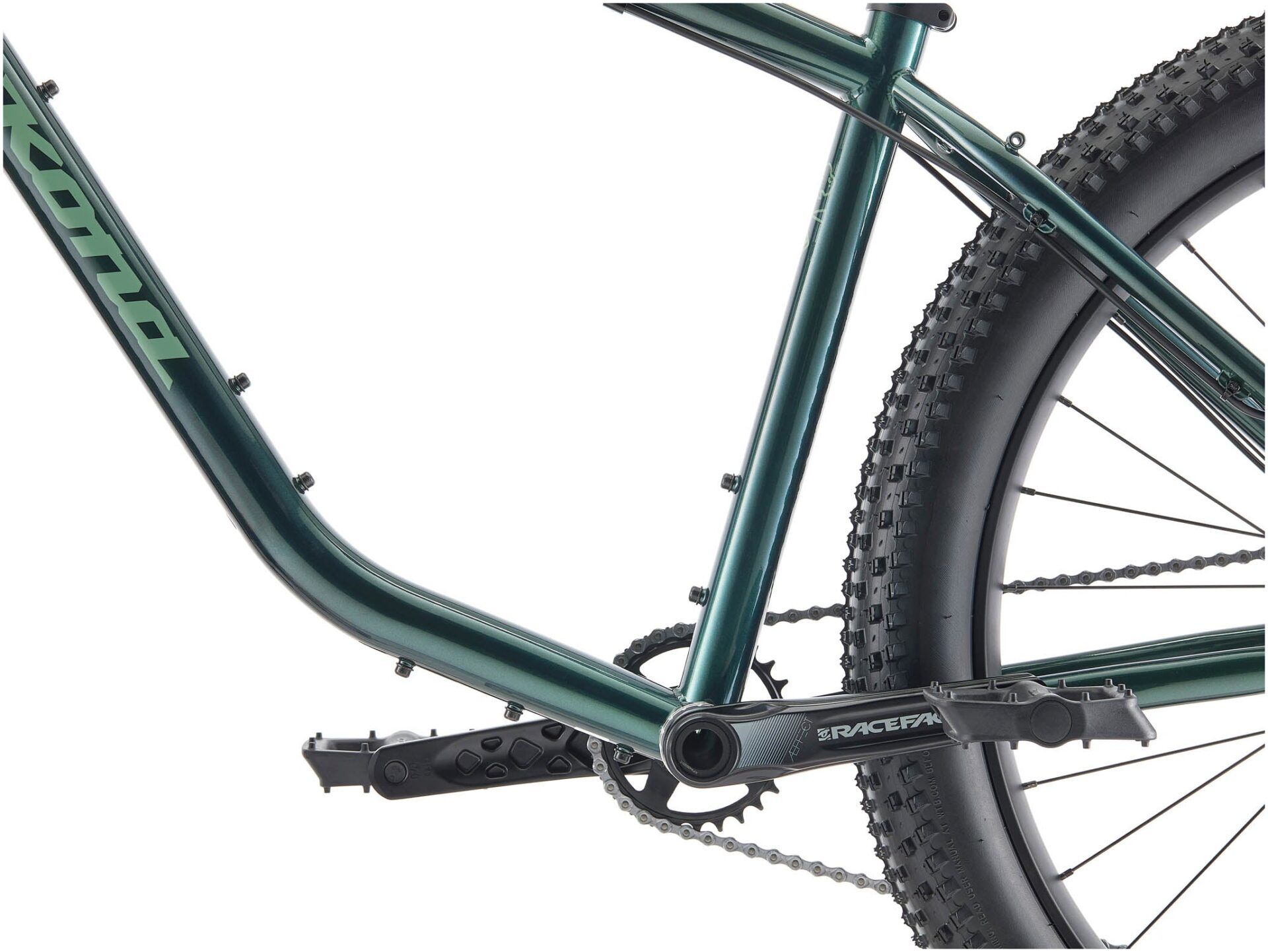

- Full chromoly frame and fork with multiple mounting points
- Sliding UDH dropouts

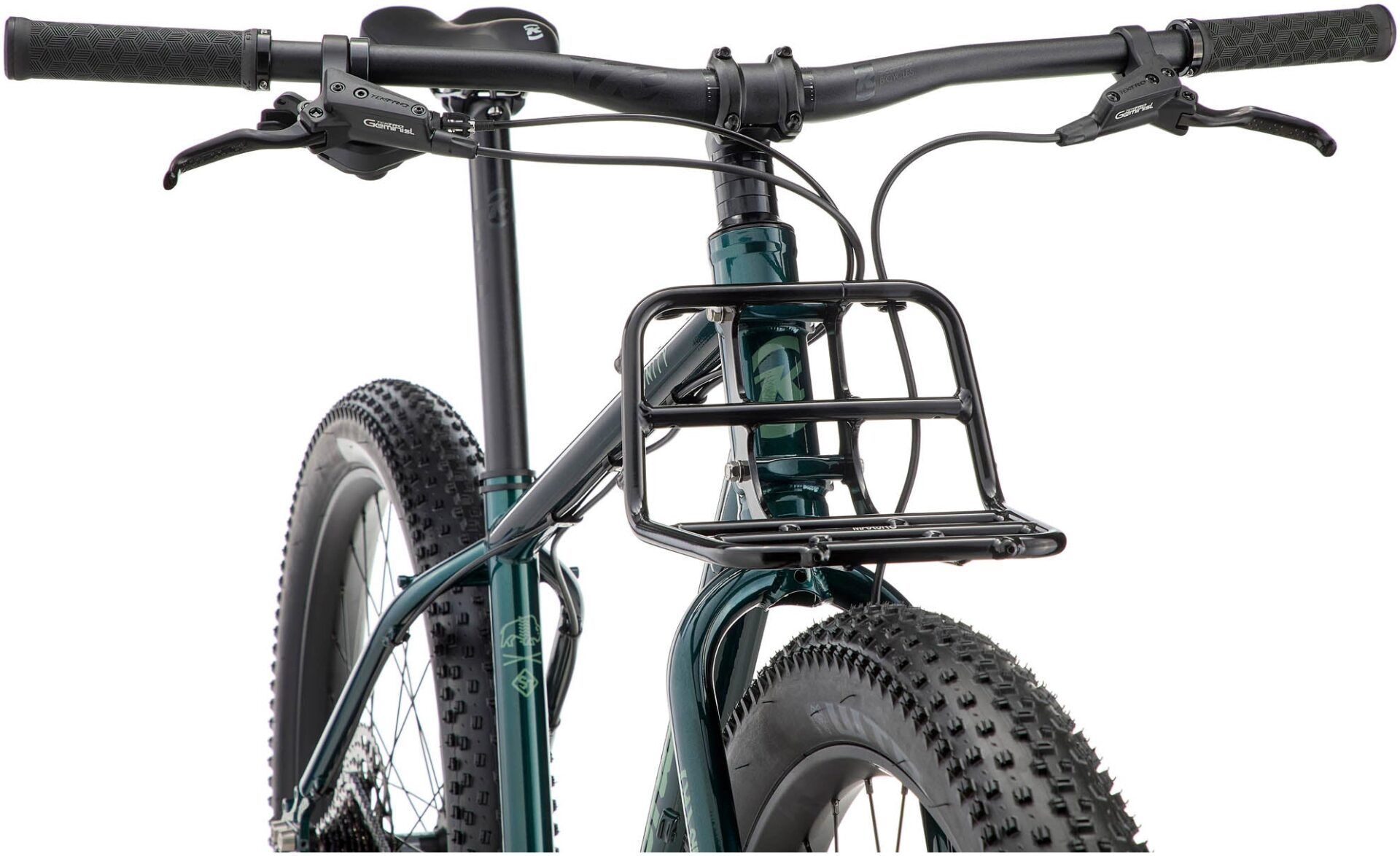

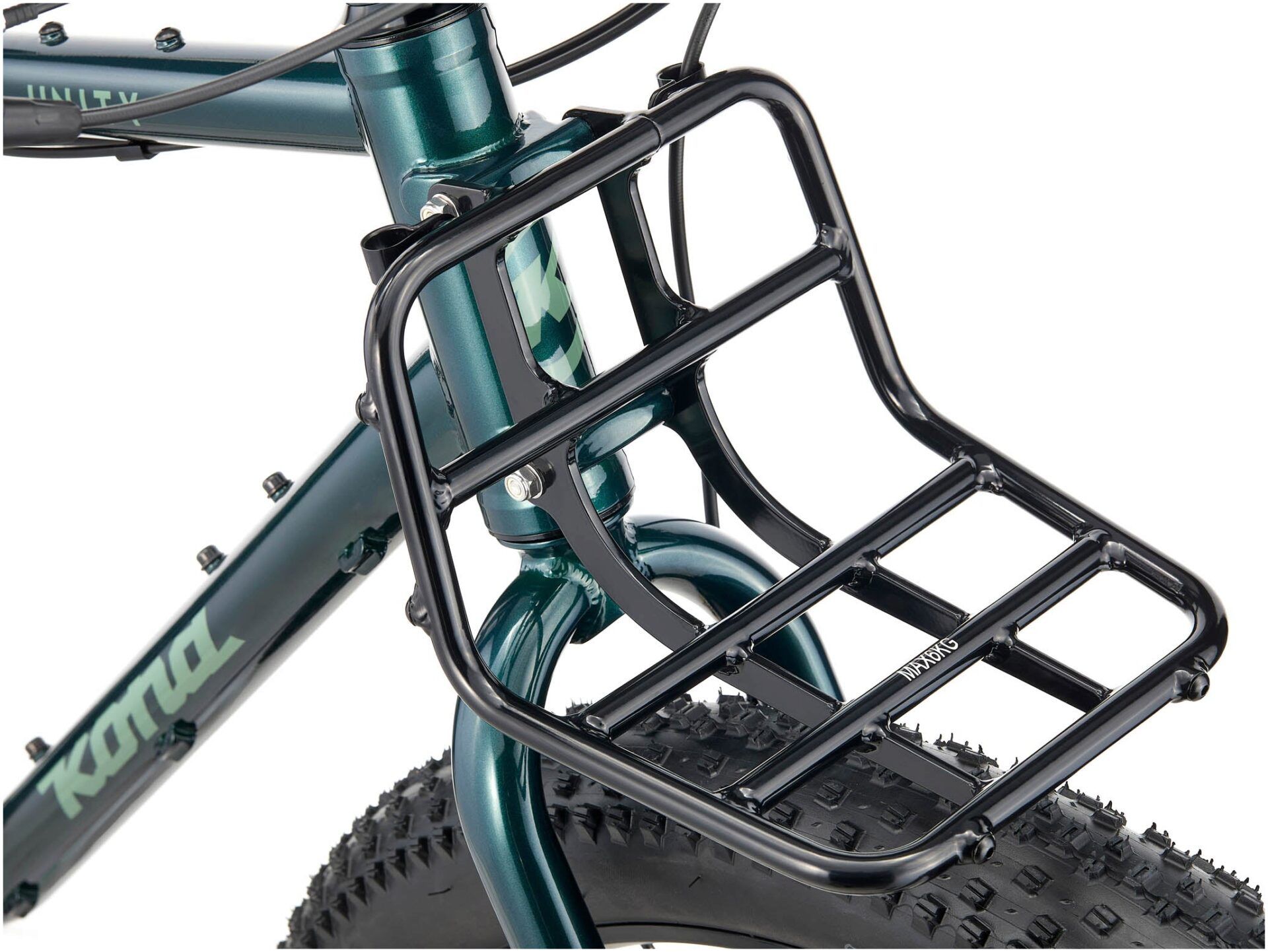

- Kona Unity front rack, fixed to the head tube
- Shimano XT LinkGlide 11-Speed drivetrain
- Tektro Gemini 4-piston brakes with 2.3mm thick 203mm rotors
- DT Swiss 370 hubs with an upgraded 36 Tooth ratchet
- WTB Ranger TCS Tough tyres
Specification
Frame and Forks

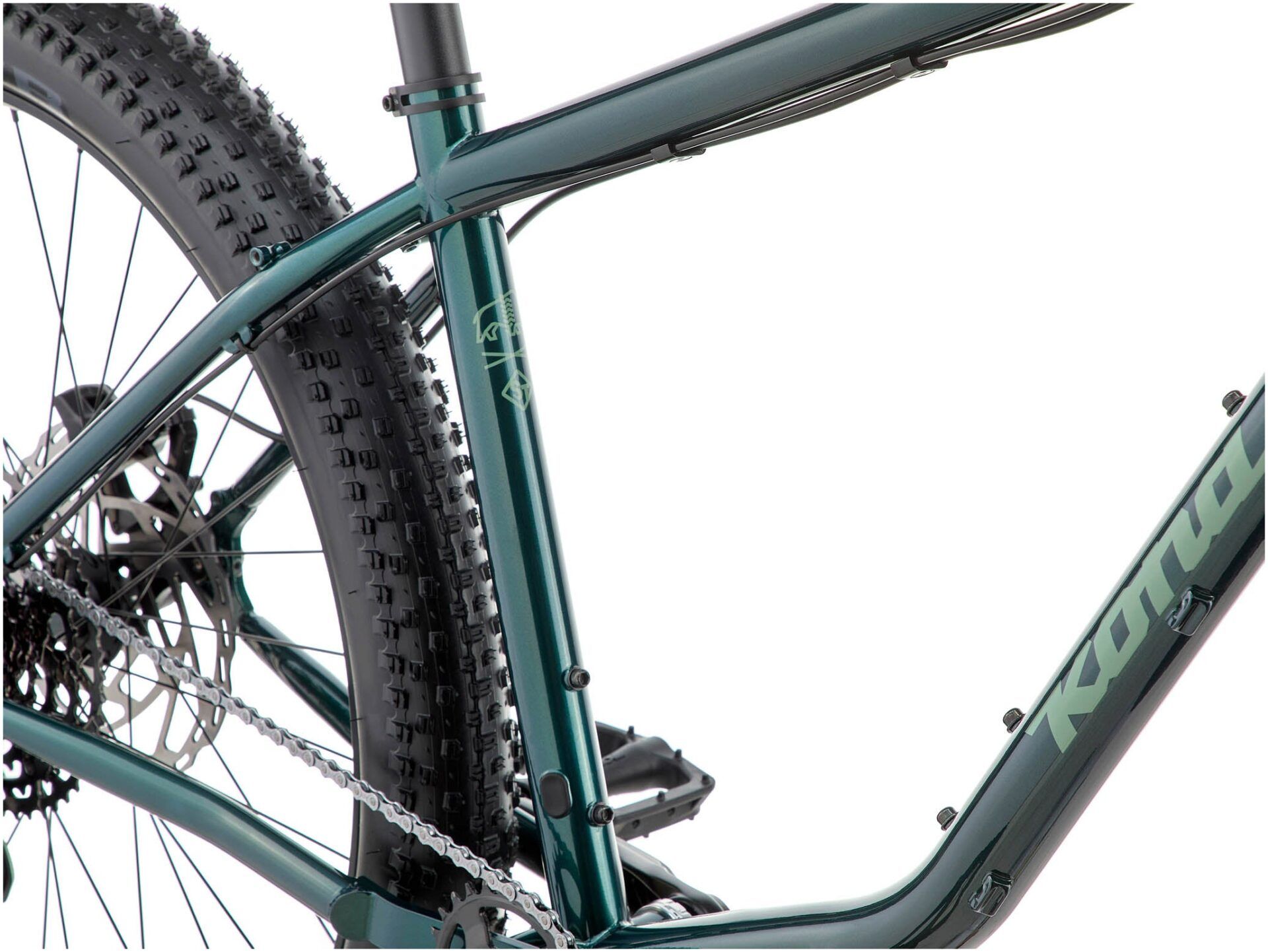

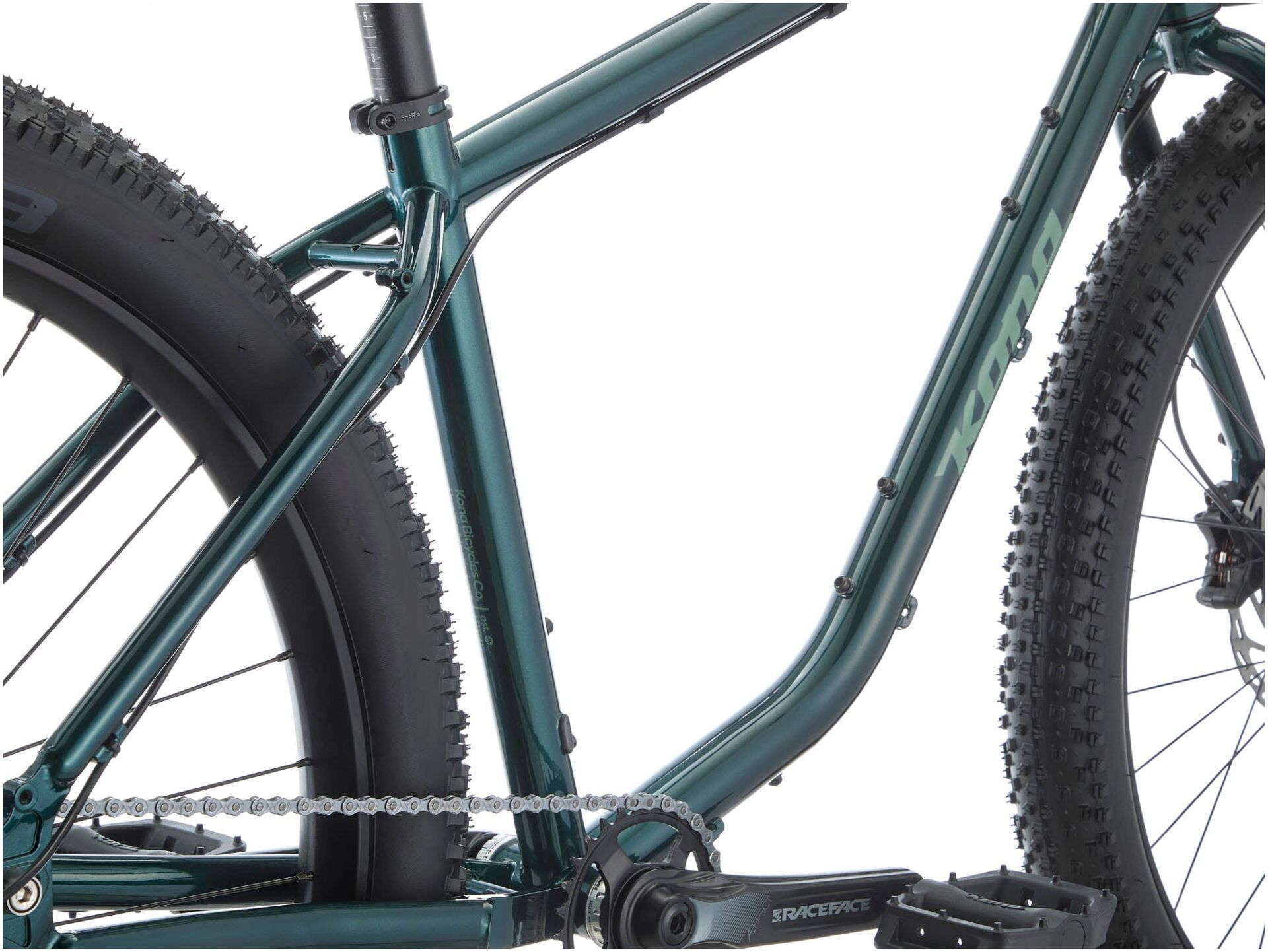

- Frame: Kona Butted Chromoly
- Forks: Kona Chromoly
- Headset: FSA No.10 ZS44 / ZS44
Drivetrain
- Crankset: RaceFace Aeffect Cinch 28T / S 165mm / M-L 170mm / XL 175mm
- Bottom Bracket: RaceFace BSA 73
- Rear Derailleur: Shimano XT
- Cassette: Shimano XT 11-50 Tooth 11-Speed LG
- Chain: KMC eGlide Turbo
Braking / Shifting
- Shifters: Shimano XT
- Brakes: Tektro Gemini M535 4-piston
- Front Rotor: Tektro 203mm 6B 2.3mm
- Rear Rotor: Tektro 203mm 6B 2.3mm
- Brake Levers: Tektro Gemini M535
Wheels
- Front Rim: WTB KOM i40 Tough 29"
- Rear Rim: WTB KOM i40 Tough 27.5"
- Front Hub: DT Swiss 370 15 x 110mm
- Rear Hub: DT Swiss 370 12 x 148mm HG 36 Tooth Ratchet
- Spokes: Stainless 2.0mm Black
- Front Tyre: WTB Ranger TCS Tough 29 x 3.0"
- Rear Tyre: WTB Ranger TCS Tough 27.5 x 3.0"
Finishing Kit
- Handlebars: Kona 31.8mm / Back 9º / Up 5º / Rise 15mm / Width 780mm
- Grips: Kona Key Grip Lock-on
- Stem: Kona 31.8mm / Rise 0º / Length S-M 35mm / M-L 45mm
- Seatpost: Kona Thumb With Offset 31.6mm / 375mm
- Seat Clamp: Kona Clamp 34.9mm
- Saddle: WTB Volt Medium
- Pedals: Kona JS2
What's Included?
- Kona Unity Front Rack 6061 Aluminium
