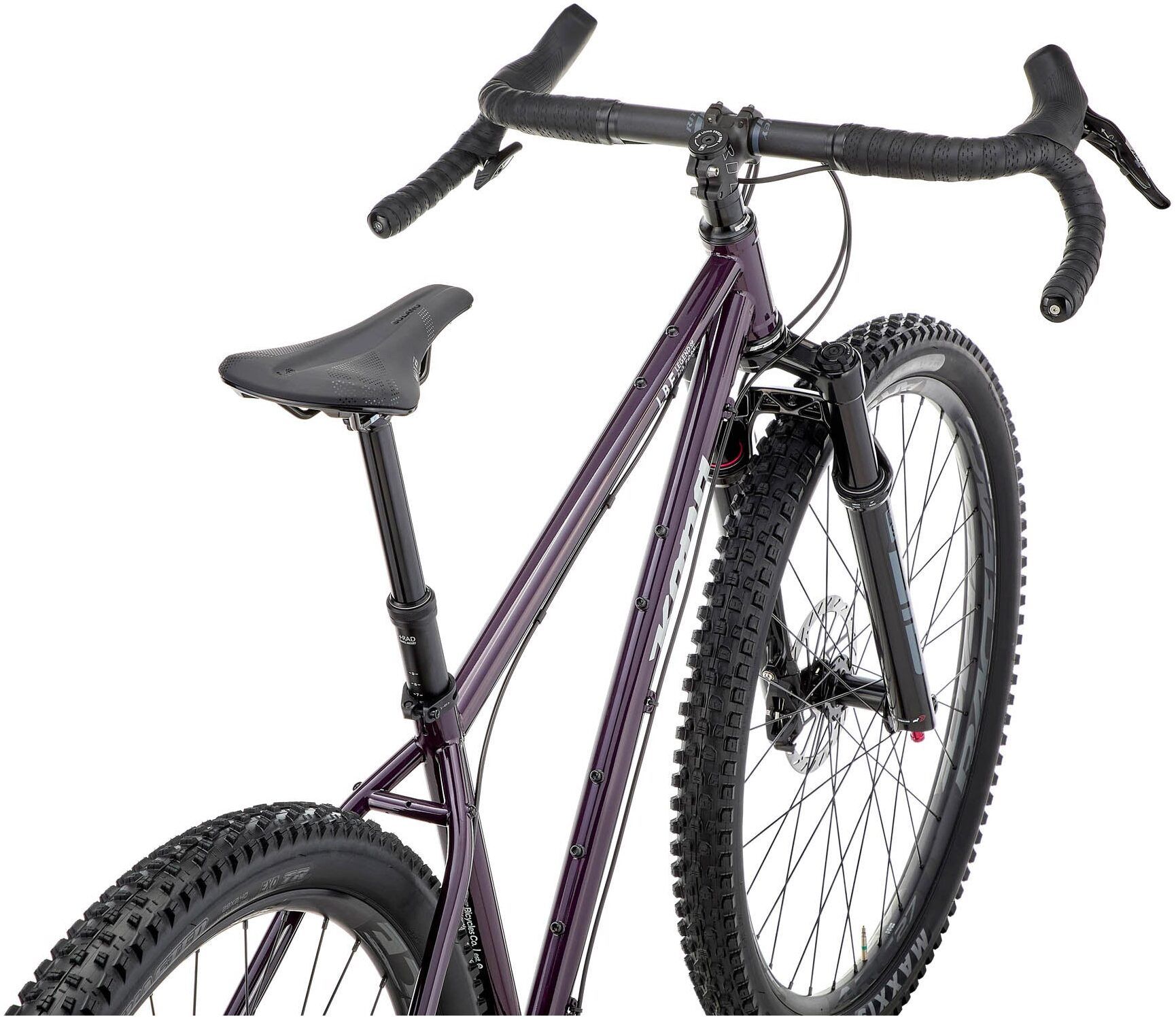

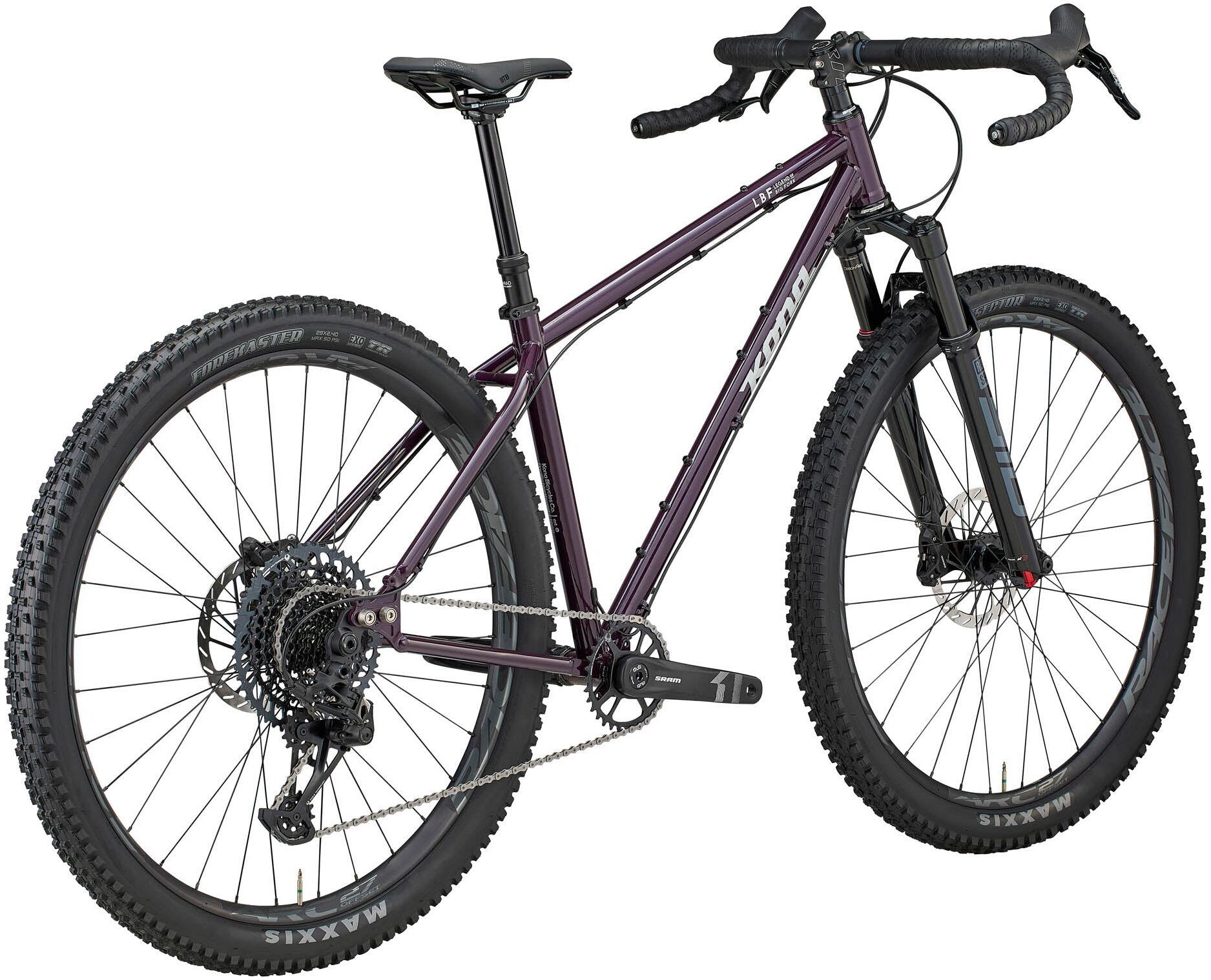

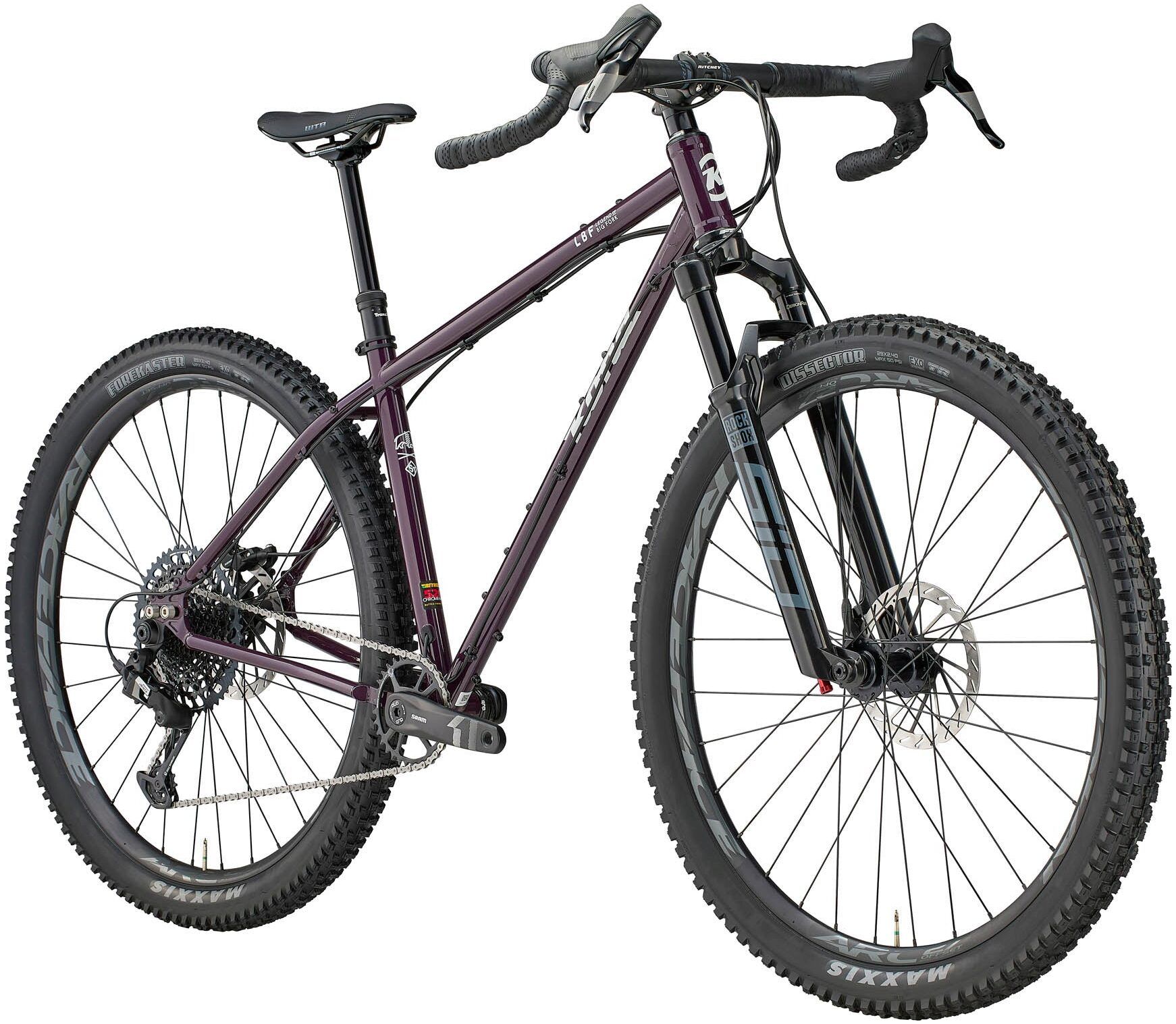

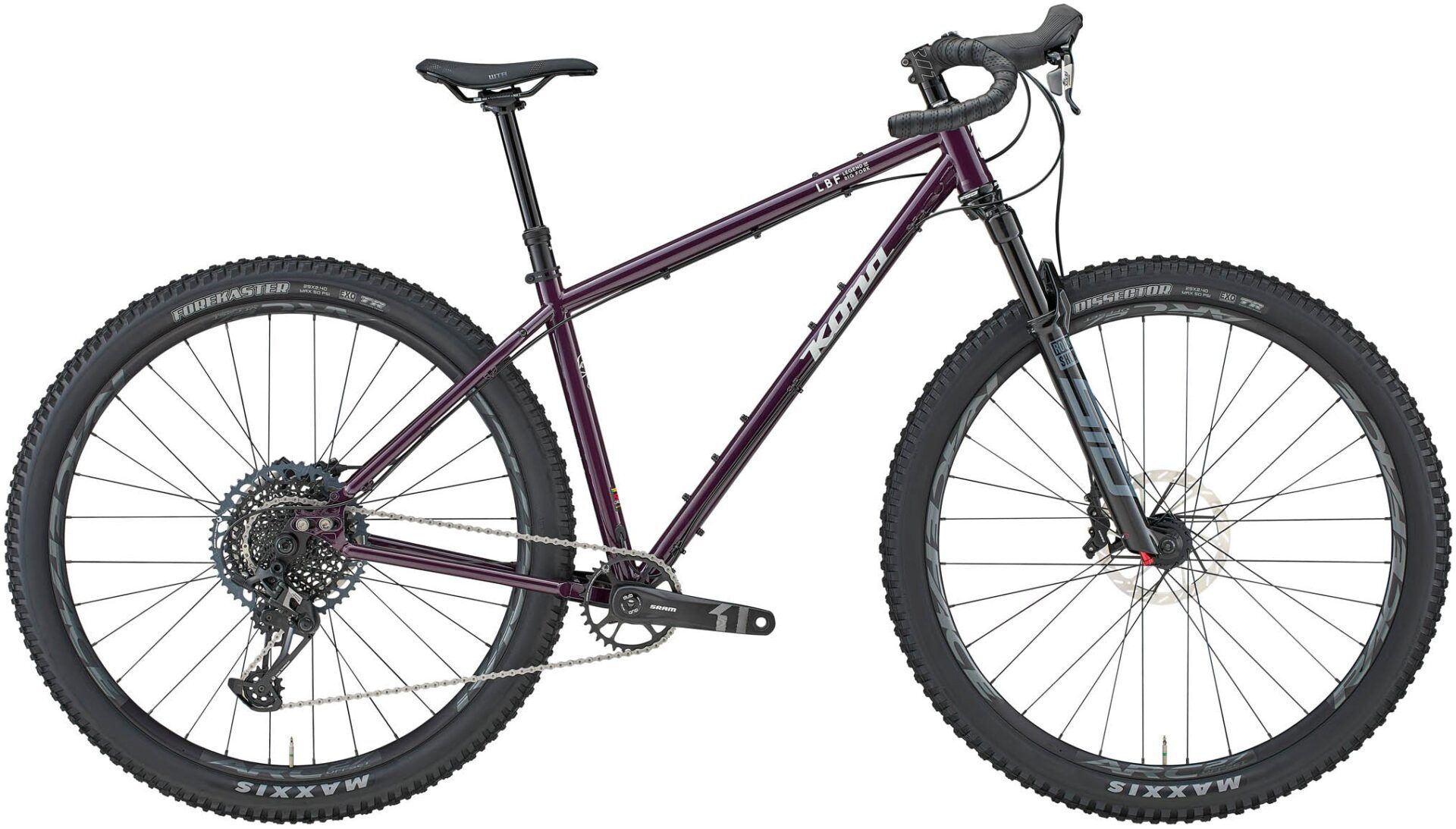

Kona LBF 2027 Bike

The legend continues, in a new disguise. For those who have not heard the whispers, the LBF is a gorgeous Reynolds 520 chromoly hardtail drop-bar bike built for singletrack, chunky backcountry adventures, and every route scratched in by good intentions.

Born from a land of ferns and cedar, this is exactly the kind of category-bending bike only Kona can create. Part gravel bike, part mountain bike, and still not fully explained by science. Reports remain unconfirmed. The tyre tracks are very real. Go outside. Unhinge your mind. The bike will follow.

Features

• Reynolds 520 butted chromoly frame
• RockShox SID 3P 100mm travel fork
• Kona / SRAM custom Apex levers with G2 4-piston brakes
• SRAM Eagle drivetrain with a wide-range 10-52 Tooth 12-Speed cassette
• Ritchey Beacon Comp handlebar and Comp Trail stem
• WTB Solano saddle
• RaceFace ARC Offset rims with a 27mm internal width
• Maxxis Dissector and Forekaster tyres

Specification

Frame and Forks

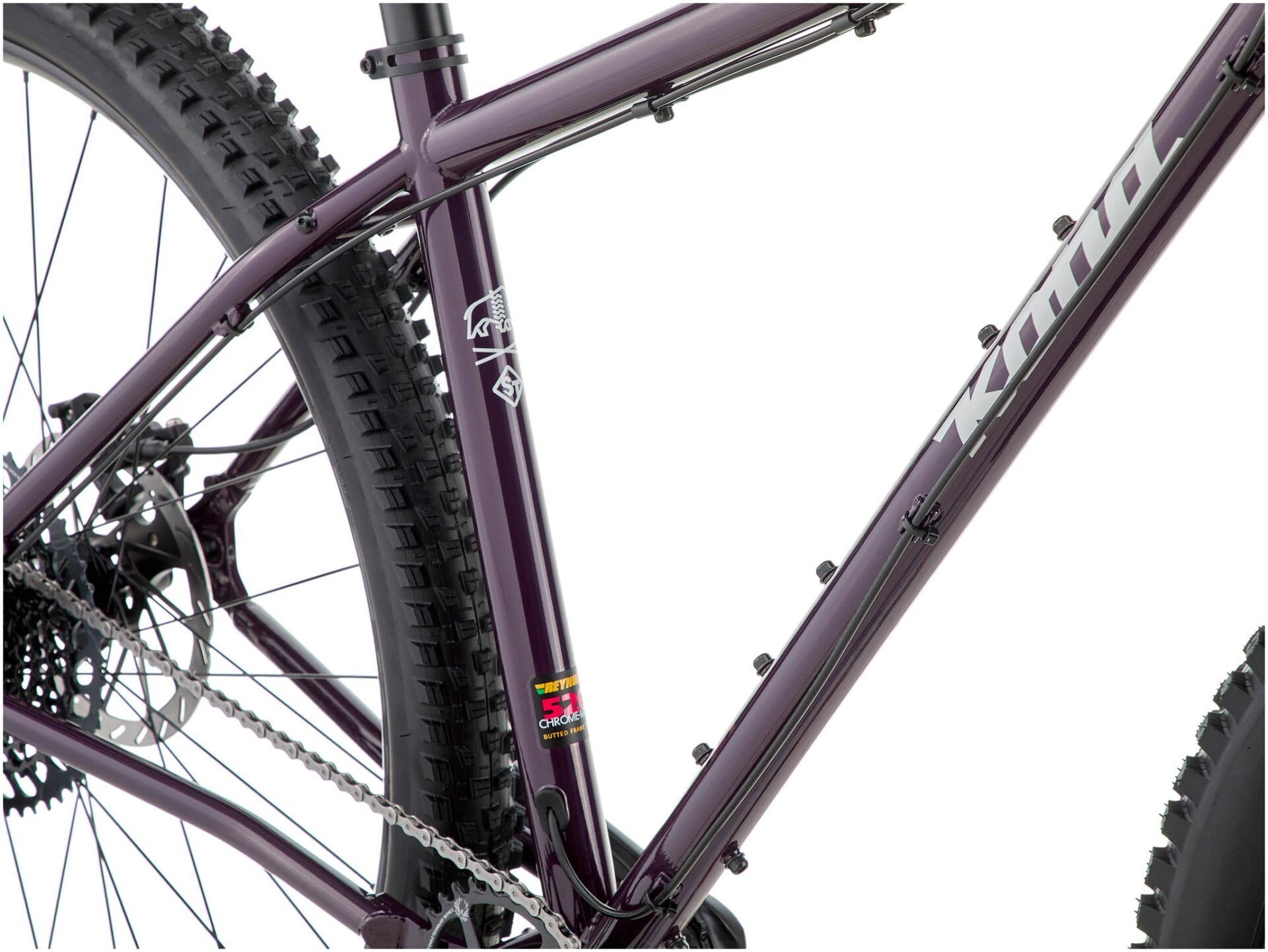

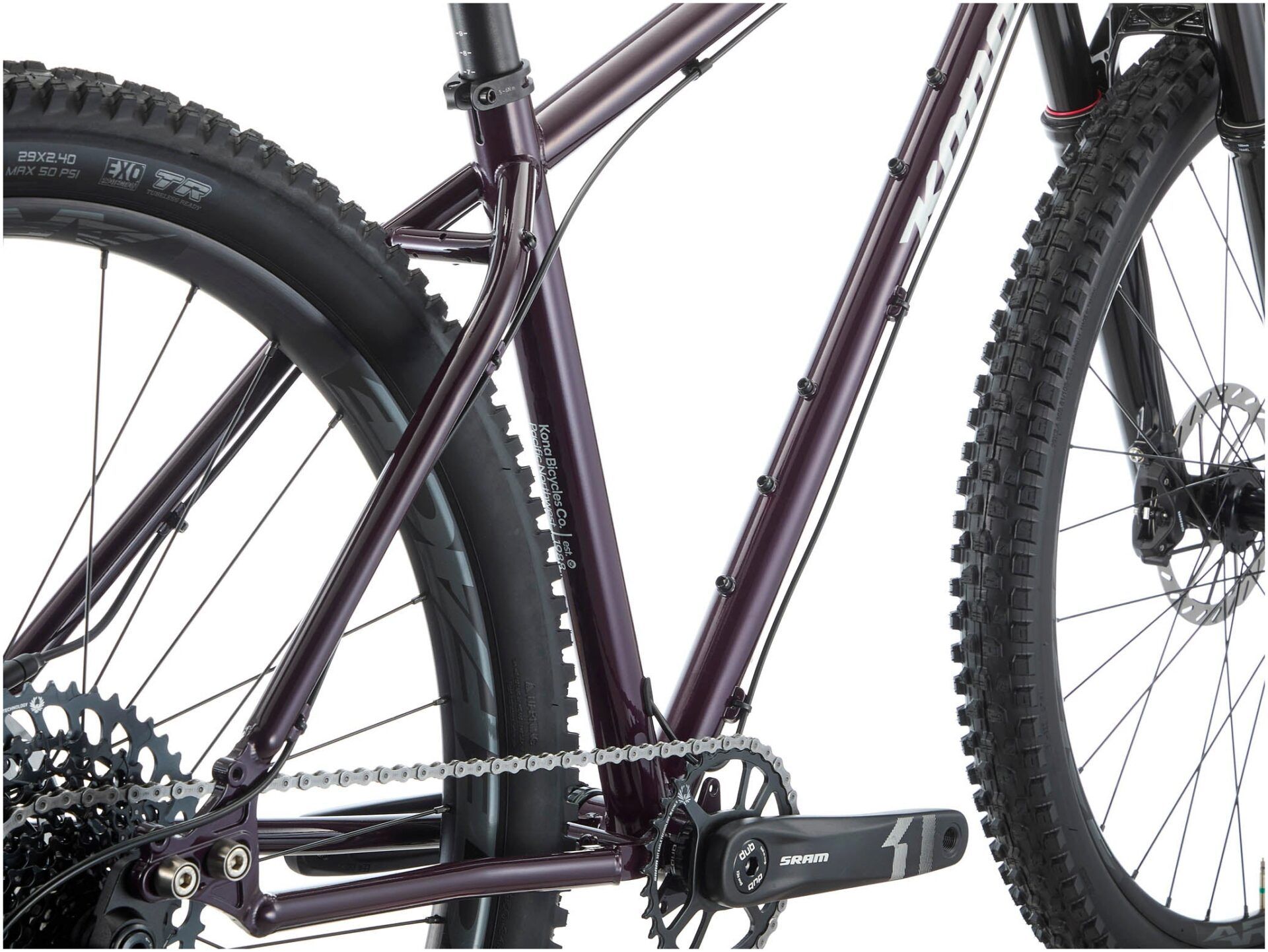

• Frame: Reynolds 520 Butted Chromoly
• Forks: RockShox SID 100mm 29"
• Headset: FSA No.9M ZS44 / EC44

Drivetrain

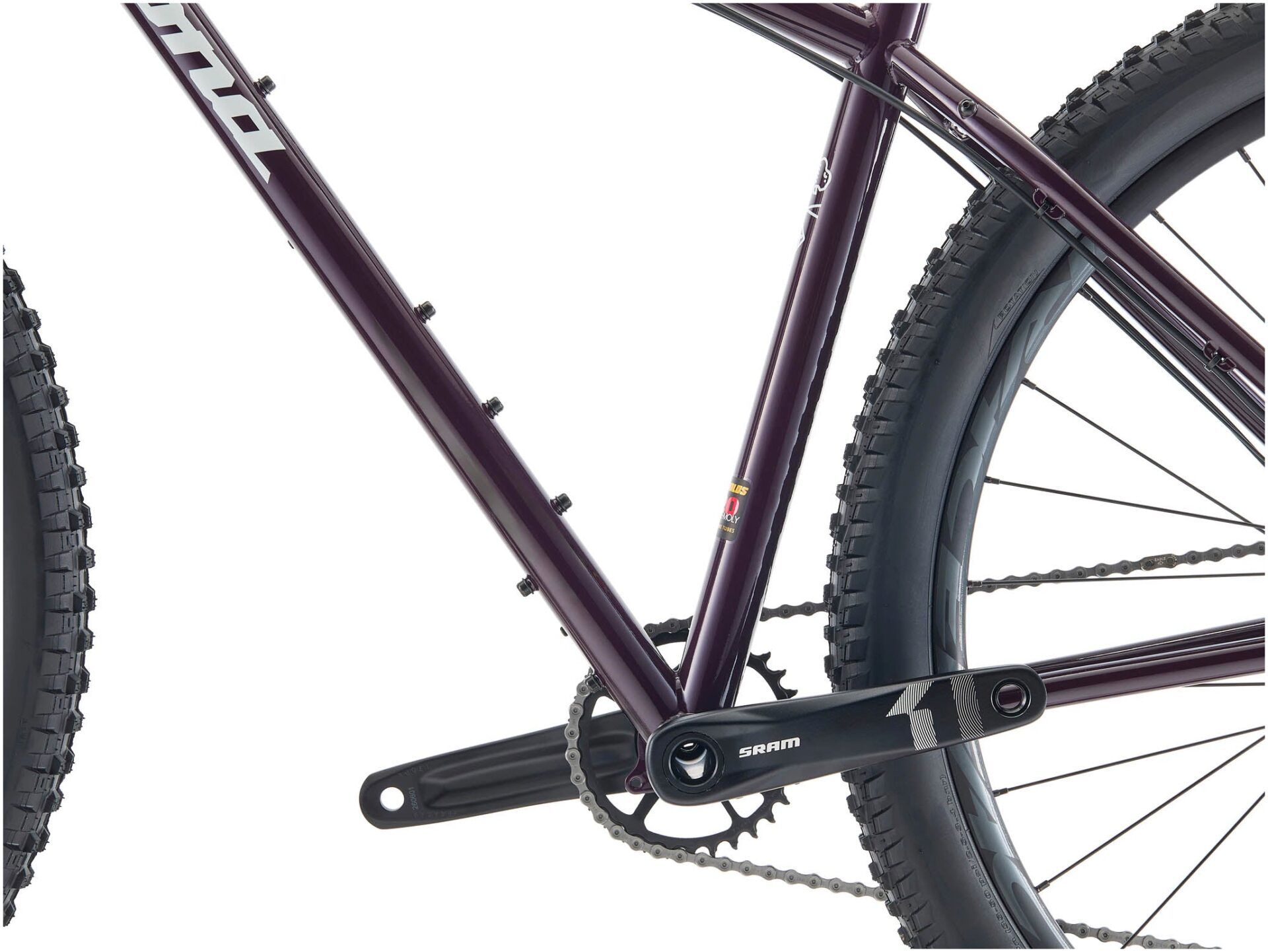

• Crankset: SRAM X1 32 Tooth / S-M 170mm / L-XL 175mm
• Bottom Bracket: SRAM DUB BSA 73
• Rear Derailleur: SRAM Apex
• Cassette: SRAM GX 10-52 Tooth 12-Speed
• Chain: SRAM NX

Braking / Shifting

• Shifters: SRAM Apex
• Brakes: SRAM G2 4P
• Front Rotor: SRAM HS2 180mm 6B
• Rear Rotor: SRAM HS2 180mm 6B
• Brake Levers: SRAM Apex

Wheels

• Rims: RaceFace ARC 27 Offset
• Front Hub: Formula 15 x 110mm
• Rear Hub: Formula 12 x 148mm XD
• Spokes: Stainless 2.0mm Black
• Front Tyre: Maxxis Dissector 29 x 2.4"
• Rear Tyre: Maxxis Forekaster 29 x 2.4"

Finishing Kit

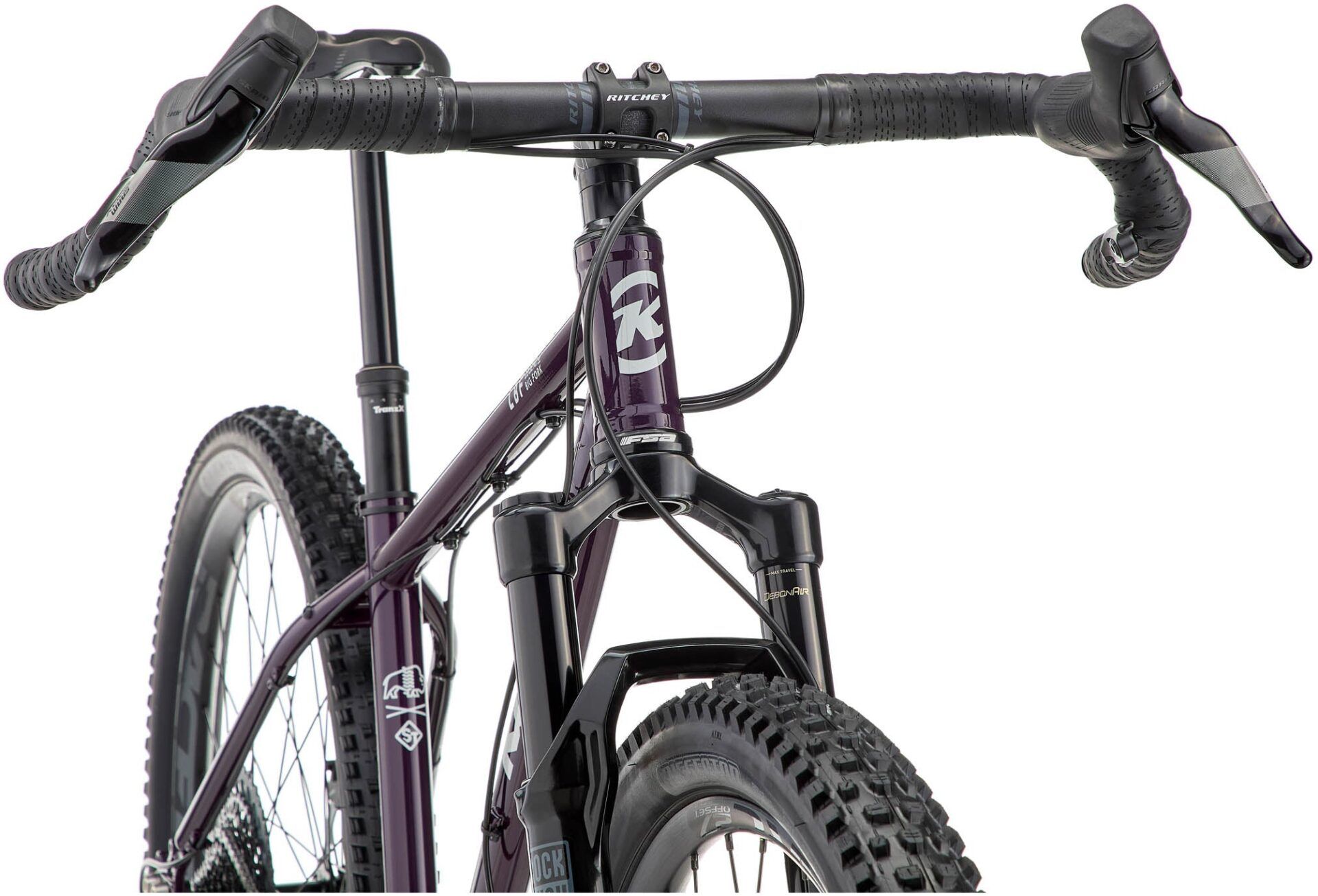

• Handlebars: Ritchey Beacon Comp / S 46cm / M 50cm / L-XL 52cm
• Grips: Kona Cork Tape
• Stem: Ritchey Comp Trail / S 35mm / M 45mm / L-XL 60mm
• Seatpost: TranzX Dropper +RAD Internal 31.6mm / S 125mm / M 150mm / L-XL 170mm
• Seat Clamp: Kona Clamp 34.9mm
• Saddle: WTB Solano Steel Fusion Form
• Pedals: Not Included
