Kinesis GX Race Cyclocross Race 2023 Frameset
- In stock On the shelf in our own warehouse. Order before 2pm and it is despatched the same working day; bikes we build are built, safety-checked and despatched in 2-3 working days.
- In stock with our supplier Not on our shelves, but our supplier has it or it is already on its way to us. We bring it in as soon as you order, and the despatch estimate shown allows for that.
- Out of stock Neither we nor our supplier has it right now. Where a date is shown, more is on order and you can order now to secure one from that delivery.
- Stock to be confirmed Not on our shelves, and our supplier does not send us stock figures for it, so we cannot say how soon we could get one. Use "Check availability" and we will ask them and email you back.
Seen it cheaper? Ask us to price match
Attributes
| Wheel Size | 650b |
|---|
About Kinesis
Kinesis UK manufactures bikes, wheels, frames and various other components which are designed to excel in the damp UK conditions. Their products perform way beyond their price points and are reliable year-round. Their Titanium frames are especially praised due to their resilience.
Details

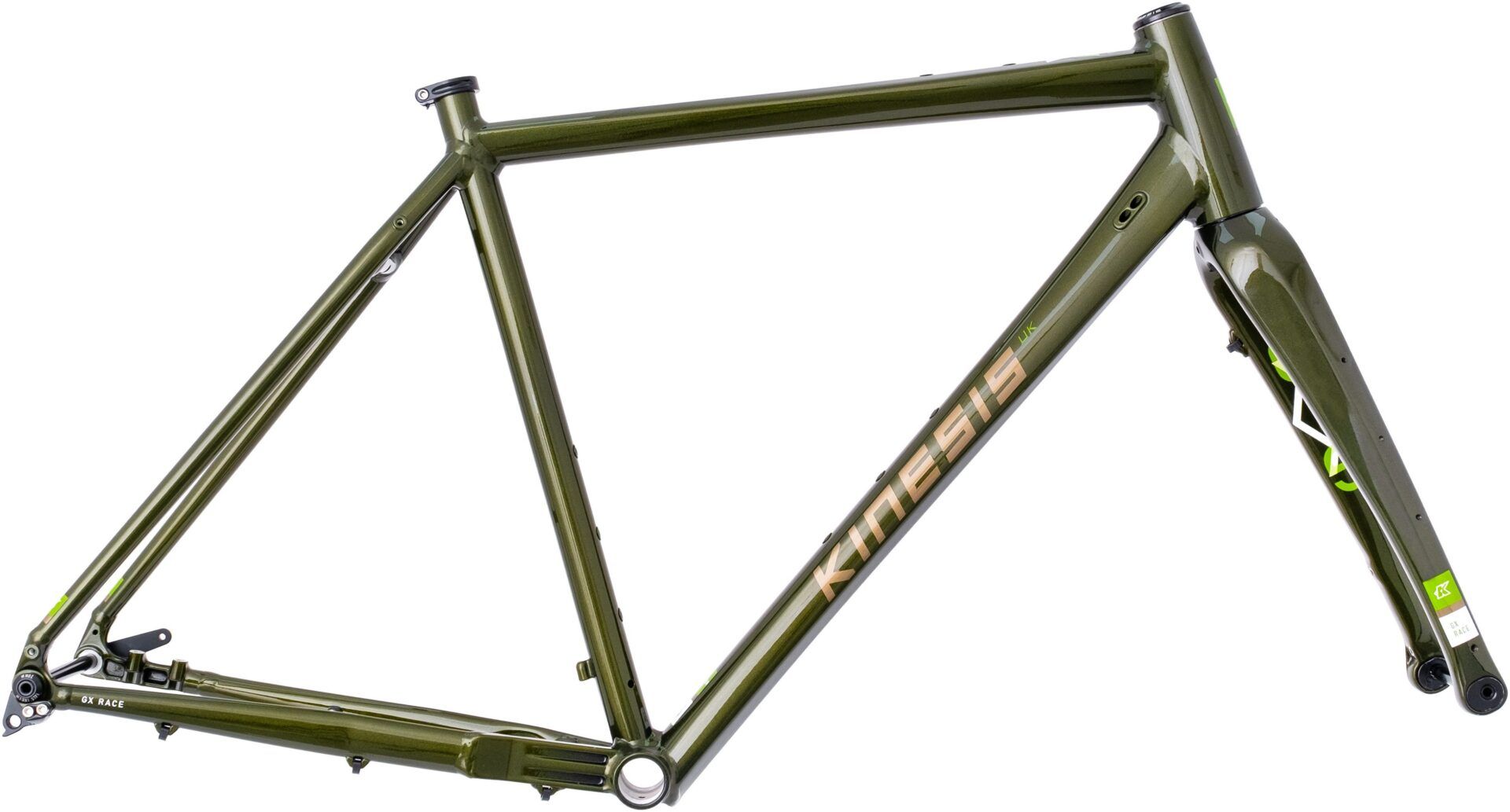

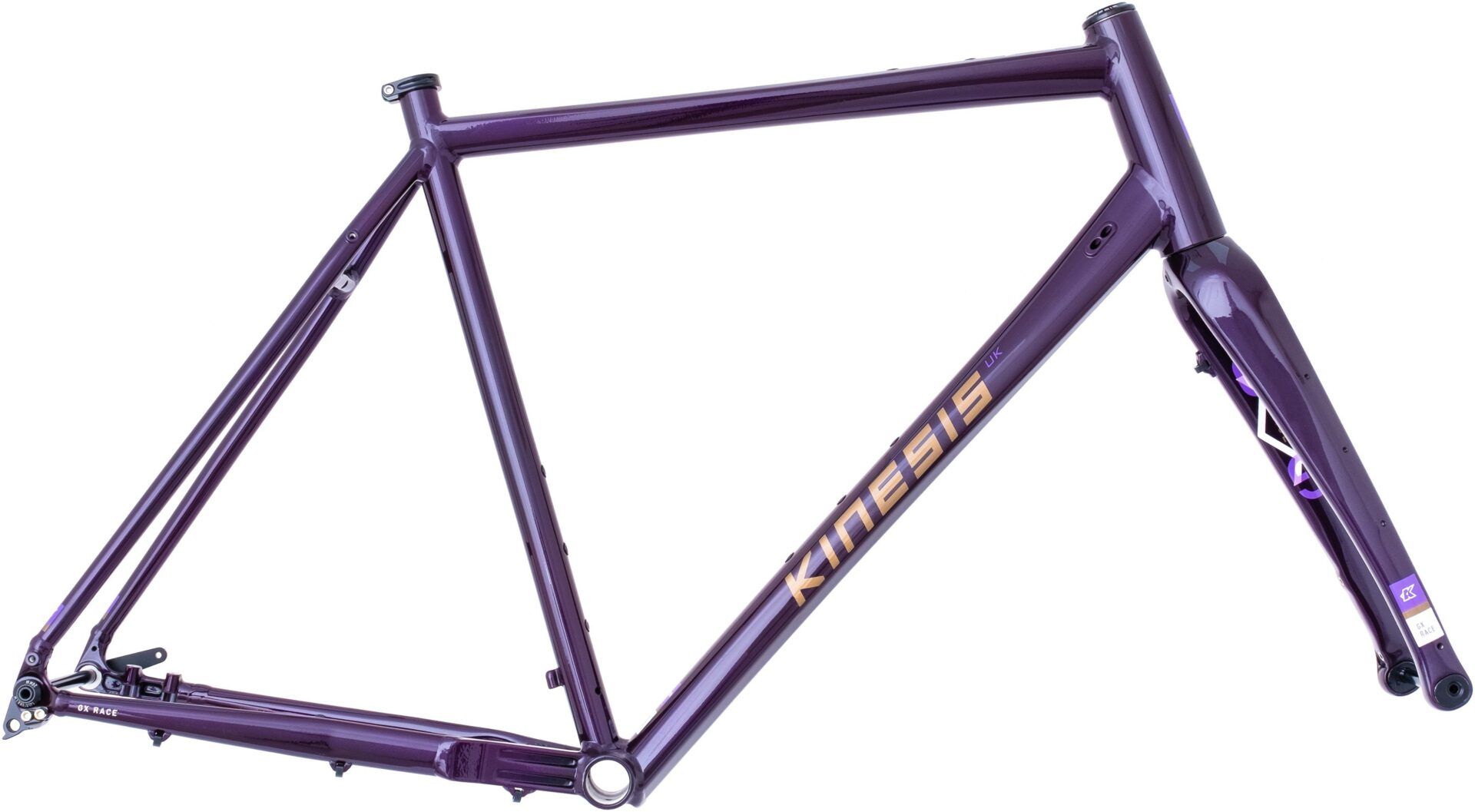

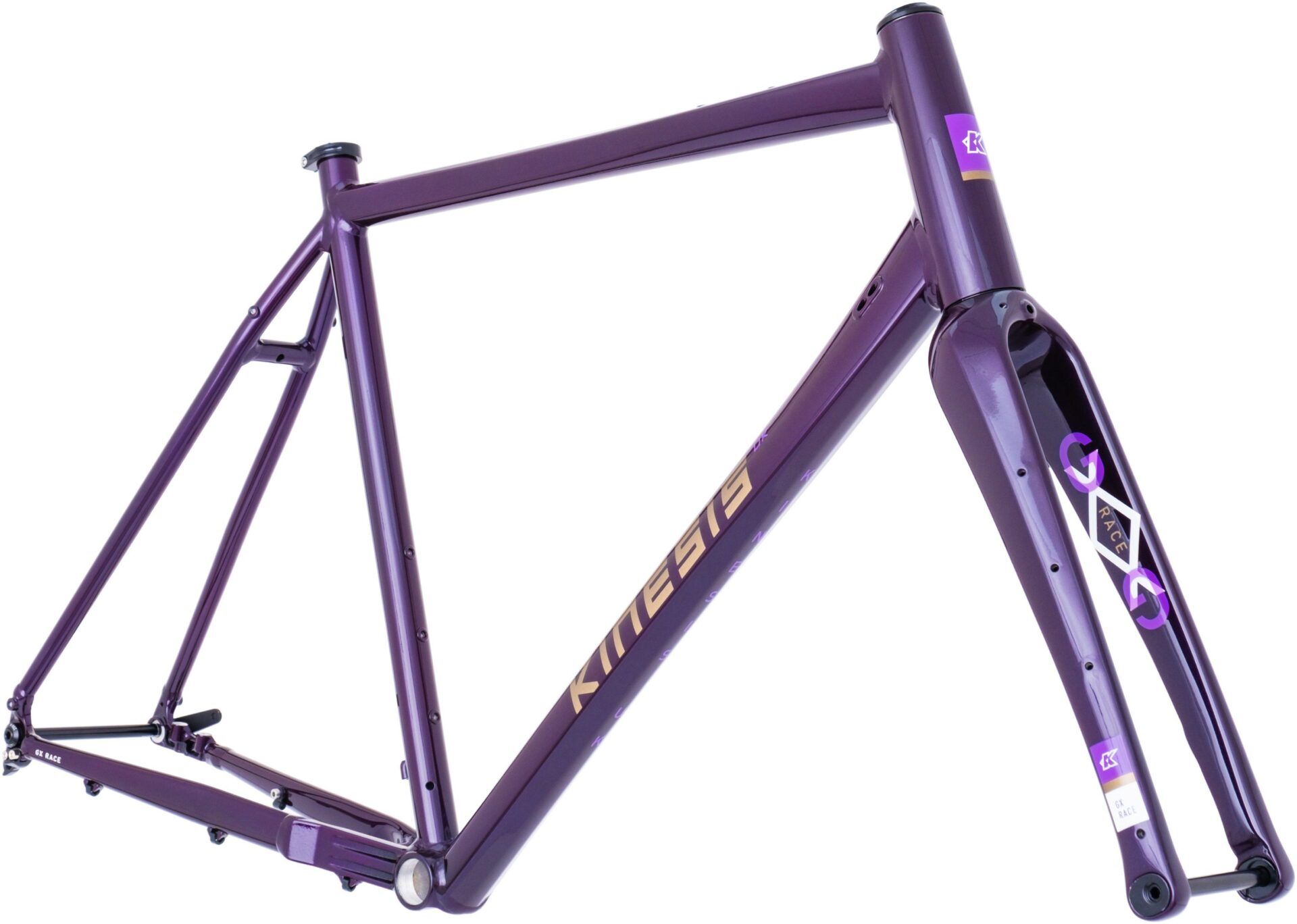

An all-new, fast, gravel frameset from Kinesis.
The Kinesis GX Race combines the speed and agility of Kenesis race winning CX Race frameset, with the strength and capability of their award winning Tripster AT frameset. With Kenesis new race inspired gravel geometry you are more aerodynamic in the drops or the hoods of the GX Race. A longer reach allows for shorter stems to be used and better off-road handling at high speed.
If your riding extends to swift bike packing trips then you can still load this bike up to reach destinations faster.
Kenesis have matched their GX Race premium alloy frame with the all-new Columbus Futura Cross Plus full carbon monocoque fork. The Futura Cross Plus features cargo mounts, internal dynamo cable routing, masses of tyre clearance and adjustable offset, all wrapped up in a lightweight package.
The GX Race uses adaptable cable ports, allowing you to build your frame with exactly the right cable routing, whether you're running wireless, Di2 or mechanical 2x or 1x gearing.
As with their other framesets, we have partnered with GW Engineering and we are supplying the GX Race frame with their patented ‘Switch Lever’ lightweight hollow thru axles with a removable lever.
Features
- Tough yet lightweight 6069 series tubeset with tapered machined headtube.
- All new colour matched Columbus Futura Plus carbon fork with 12mm Thru-Axle.
- Inboard Shimano Flat-Mount disc mounts on frame and fork (maximum 160mm rotors).
- Seat stay mounts for mudguards and pannier racks. Bridges on chain stay and seat stay for fender mounting, runs 40mm tyres with full mudguards for clean winter riding!
- 700c x 45mm tyre clearance / 650b x 50mm tyre clearance.
- 2 x bottle boss mounts with multi position points plus top tube mounts for secure fixing of a top tube bag.
- Headset, Thru-Axles, seat clamp and all cable guides included.
- Internal cable routing for mechanical and electronic gear systems.
- BSA threaded BB for real world low maintenance riding.
- Semi-sloping top tubes on our smallest sizes ensure a great fit without compromising handling.
Specifications
- 142 x 12mm rear and 100 x 12mm front axle spacing.
- 68mm threaded Bottom Bracket shell.
- 48 Tooth max chainring size (single or double).
- 27.2mm seat post required.
- 31.8mm seat clamp included.
- 31.8mm front mech clamp required.
- 22mm Flat Mount bolts required for the rear calliper.
- 1 1/8” – 1 ½” tapered headtube with integrated headset.
- 48cm, 50cm, 52cm, 54cm, 56cm, 58cm and 60cm sizes.
- 1.69kg (54cm frame).
