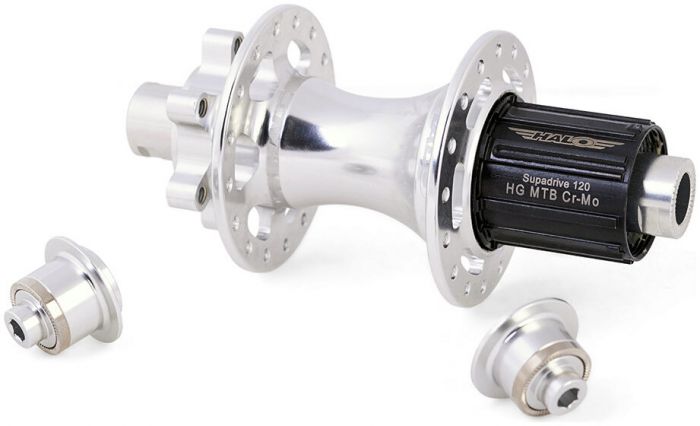

Halo MT Supadrive Rear Hub
- In stock On the shelf in our own warehouse. Order before 2pm and it is despatched the same working day; bikes we build are built, safety-checked and despatched in 2-3 working days.
- In stock with our supplier Not on our shelves, but our supplier has it or it is already on its way to us. We bring it in as soon as you order, and the despatch estimate shown allows for that.
- Out of stock Neither we nor our supplier has it right now. Where a date is shown, more is on order and you can order now to secure one from that delivery.
- Stock to be confirmed Not on our shelves, and our supplier does not send us stock figures for it, so we cannot say how soon we could get one. Use "Check availability" and we will ask them and email you back.
Seen it cheaper? Ask us to price match
About Halo
Shop all HaloDetails
Halo's MT series hubs are their flagship mountain bike hub range. The MT series encompass everything we feel hubs for mountain biking should offer. Durability, modularity and light weights make the MT Series a simple choice. Suited best to XC, trail and enduro bikes alike, the MT Supadrive hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads, such as those found with wide range cassettes. With multiple World Championship titles across a range of disciplines the Supadrive system is tried and tested to the very highest level and is our most advanced and reliable drive system to date. Wide spoke flanges, sealed cartridge bearings and a Cr-Mo tube axle in the MT Supadrive hub ensure longevity. Designed to be run with mountain bike gearing, the MT Supadrive hub features an XD driver or alternatively a MTB width HG freehub. Please refer to the GXC Supadrive for a 11 speed road cassette compatibility.
Features
- HXHASVTMHG - Suitable for HG type freehub includes 135mm Quick Release and 142 x 12mm End cones
- HXHASVTMXD - Suitable for XD type freehub includes 135mm Quick Release and 142 x 12mm End cones
Specifications
- Material: 6061 Alloy Forged Hub Shell
- Drillings: 32 Hole or 36 Hole
- Axle: Cro Mo With 135mm Quick Release / 12 x 142mm Thru Ends Included
- Disc Mount: IS 6-Bolt
- Ratchet: 120 Teeth Triple-Wedge Pawl Mechanism
- Freehub Body: Shimano HG Or Sram XD
- Spoke Hole Circle Diameter (pcd): 58mm
- Centre To Flange: Left: 34mm, Right: 20mm
- Bearings: 2 X 6902 (Hub) 3 X 6802 (SRAM Freehub) Or 1 X 6902 And 6802 (HG Freehub)
- Old: 135/142mm
- Model Ref: S-DRV-FG
