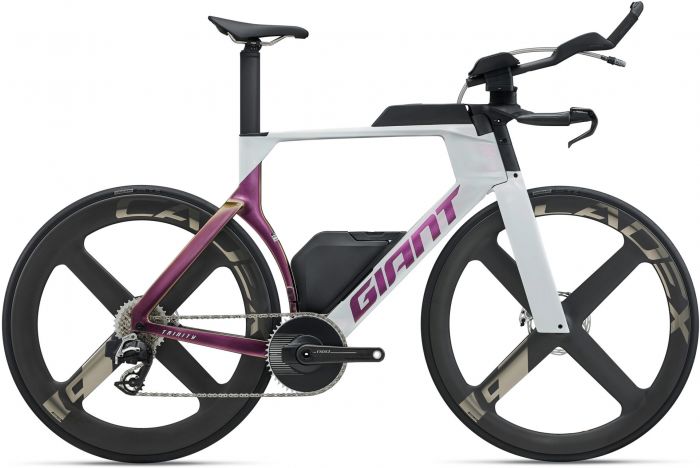

Giant Trinity Advanced SL 0 2027 Bike

From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Easily adaptable to triathlon or TT, and featuring aero-integrated hydration and fuelling systems, it's lighter, more aerodynamic and smoother riding than the previous generation, with greater adjustability to dial in position and fit.

Features

Full-Speed Dynamics: All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. 558g less weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.

Ultimate Aero Efficiency: AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimised, integrated fuelling system.

Personalised Fit: With a far greater range of adjustability compared to previous Trinity models-including four seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width)-it's easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.

Technologies

• Advanced SL Composite Technology: Professional Grade raw carbon fibre is woven in Giant's composite factory to produce Giant's lightest, stiffest and highest quality frames. This is the technology used by Giant's pro racers in almost every cycling discipline.
• Aero System Shaping Technology: Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimise each tube shape to deliver superior aerodynamic performance.
• Power Core: A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
• Tubeless System: Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.

Specification

Frame and Forks

• Frame: Advanced SL-Grade Composite, 12 x 142mm Thru-Axle, Disc
• Forks: Advanced SL-Grade Composite, Full-Composite Steerer, 12 x 100mm Thru-Axle, Disc

Drivetrain

• Crankset: SRAM RED 1 E1 AXS, 48 Tooth With SRAM Power Meter XS:160mm, S:165mm, M:170mm, L:172.5mm
• Bottom Bracket: SRAM DUB, Ceramic, Press Fit
• Rear Derailleur: SRAM RED AXS E1
• Cassette: SRAM RED E1, 12-Speed, 10 x 33
• Chain: SRAM RED E1

Braking/Shifting

• Shifters: SRAM AXS Wire Blips - Extension And Basebar Mounted
• Brakes: SRAM RED Aero Hydraulic, SRAM PaceLine X Rotors [F]160mm, [R]140mm
• Brake Levers: SRAM RED Aero

Wheels

• Rims: CADEX 4-Spoke Disc WheelSystem
• Hubs: [F] CADEX R3 Hub, CenterLock, 12mm Thru-Axle [R] CADEX R3-C40, 40 Tooth Ratchet Driver, CenterLock, 12mm Thru-Axle
• Spokes: CADEX 4-Spoke Disc WheelSystem
• Tyres: CADEX Aero, Tubeless, 700 x 28c, Folding

Finishing Kit

• Handlebars: AeroDrive Base Bar With Sync Rest Armset, 10 And 15-Degree Extension Wedge
• Stem: AeroDrive Integrated Stem
• Seatpost: Trinity Composite
• Saddle: Giant Contact SL Tri
• Pedals: PEDALS NOT SUPPLIED

Extras

• Includes: Bento Box Top Tube Storage, Hydration Kit, Computer Mount, Tubeless Prepared
