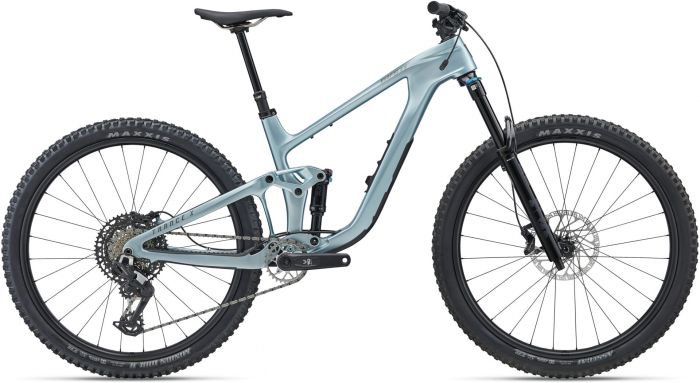

Giant Trance X Advanced 2 2027 Bike

Float up technical climbs and sail down chunky descents. This all-new, full-composite trail bike gives you 140mm of smooth Maestro rear suspension and all sorts of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.

Features

More Travel: New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.

Adjustable trail geometry: A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.

Rear wheel options: All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimises stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tyre clearance. Some riders favour this "mullet" setup for riding steep, technical terrain.

Technologies

• Advanced Composite Technology: Giant's High Performance Grade raw carbon material is used to produce this custom frame material in Giant's own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
• Advanced Forged Composite Technology: A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.
• Over Drive: Giant's original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system's oversized headset bearings (1 1/4" lower and 1 1/8" upper for road, 1 1/2" lower and 1 1/8" upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
• Tubeless System: Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.
• Maestro Suspension Technology: Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.

Specification

Frame and Forks

• Frame: Advanced-Grade Composite Front And Rear Triangles, 140mm Maestro Suspension, 12 x 148mm Thru-Axle, 27.5 Or 29-Inch Rear Wheel Compatible, Flip Chip - Maestro 3, Flip Chip - Headset, Integrated Down Tube Storage And Under-Top Tube Storage Mounts
• Forks: Fox 36 Float Performance, 150mm, GRIP Damper, 15 x 110 Kabolt X, 44mm Offset
• Rear Shock: Fox Float Performance, 185/52.5

Drivetrain

• Crankset: SRAM Eagle 90 T-Type, 30 Tooth XS: 165mm, S:165mm, M:165mm, L:165mm, XL:165mm
• Bottom Bracket: SRAM DUB, Press Fit
• Rear Derailleur: SRAM Eagle 90 Transmission
• Cassette: SRAM XS 1270, 10 x 52
• Chain: SRAM 70 Transmission

Braking/Shifting

• Shifters: SRAM Eagle 90, 1 x 12
• Brakes: TRP EVO Expert HD-M8040, Hydraulic, TRP-SO6E, 6 Bolt Rotors [F]180mm, [R]180mm
• Brake Levers: TRP EVO Expert

Wheels

• Rims: Giant TRX WheelSystem, Carbon, Hookless, 30mm Inner Width, 40mm Outer Width, 22mm Height, Wide Guard Technology
• Hubs: [F] Giant MTB Alloy, 6 Bolt [R] Giant MTB Alloy, 72 POE (Points Of Engagement), 6-Bolt, MicroSpline Driver Body
• Spokes: Sapim, 28, Straight Pull, DBL Technology
• Tyres: [F] Maxxis Assegai, 29 x 2.5 WT, 60 Tpi, MaxxTerra, EXO, TR [R] Maxxis DHR II 29 x 2.4 WT, 60 Tpi, MaxxTerra, TR, Tubeless

Finishing Kit

• Handlebars: Giant Contact TR35, Alloy, 780 x 35mm, 20mm Rise
• Grips: Giant Tactal Pro Single Lock-On, 132 x 35mm
• Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
• Seatpost: Contact Switch AT Dropper, Remote S: 110-140mm Travel / 30.9 x 395mm M: 140-170mm Travel / 30.9 x 470mm L: 170-200mm Travel / 30.9 x 530mm XL: 170-200mm Travel / 30.9 x 530mm
• Saddle: Giant Romero SL
• Pedals: PEDALS NOT SUPPLIED

Extras

• Includes: Tubeless Prepared, 2.5" Max Tyre Size, 34 Tooth Max Chainring Size, 3M Tailgate Protector, Down Tube And Chainstay Protection
