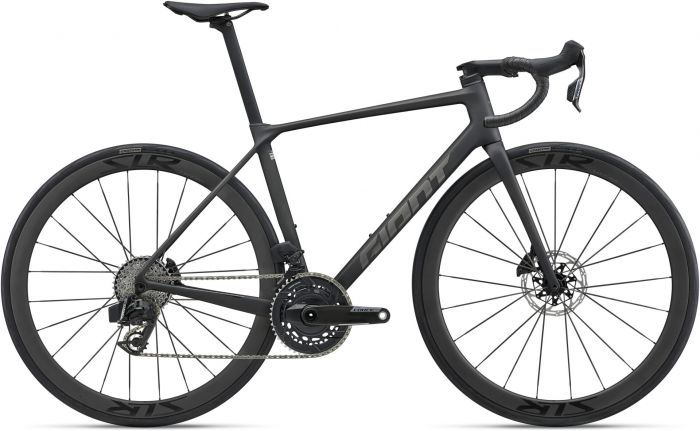

Giant TCR Advanced Pro 0-AXS 2027 Bike

More Information
Brand	Giant
Colour	Raw Carbon
Suitable for	Everyone
Wheel Size	700c

Giant started out building Chromoly frames in 1972 and have since pioneered the construction of Aluminium and Composite frames and components. Many of their high-end bikes have won championships and design awards, and with over 12,000 Giant dealers around the world, their long standing reputation clearly precedes them.

Skip to the beginning of the images gallery

Superlight, ultra-efficient and rides like a dream. This well-rounded race bike blends industry-leading composite frame engineering with fully integrated components to help you climb, corner and descend with astonishing speed and sublime road handling.

Features

System Optimisation: The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

Winning Efficiency: Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness. The result is race-winning performance in the moments that count.

Integrated Aerodynamics: All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modelling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

Technologies

Advanced Composite Technology: Giant's High Performance Grade raw carbon material is used to produce this custom frame material in Giant's own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Tubeless System: Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.
Compact Road Design: Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionised the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
Power Core: A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Over Drive Aero: Found inside the head tube of the Defy, Propel and TCR ranges, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.

Specification

Frame and Forks

Frame: Advanced-Grade Composite, 12 x 142mm Thru-Axle, Disc
Forks: Advanced SL-Grade Composite, Full-Composite OverDrive Steerer, 12 x 100mm Thru-Axle, Disc

Drivetrain

Crankset: SRAM Force E1 With Power Meter, 35/48 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom Bracket: SRAM DUB, Press Fit
Rear Derailleur: SRAM Force AXS E1
Front Derailleur: SRAM Force AXS E1
Cassette: SRAM Force E1, 12-Speed, 10 x 36
Chain: SRAM Force AXS E1

Braking/Shifting

Shifters: SRAM Force AXS E1
Brakes: SRAM Force E1 Hydraulic, SRAM PaceLine Rotors [F]160mm, [R]140mm
Brake Levers: SRAM Force AXS Hydraulic

Wheels

Rims: Giant SLR 0 40 Carbon WheelSystem, [F]40mm, [R]40mm
Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm Thru-Axle, [R] Giant Low Friction Hub, 30 Tooth Pawl Driver, CenterLock, 12mm Thru-Axle
Tyres: CADEX Road Race GC, Tubeless, 700 x 30c, Folding

Finishing Kit

Handlebars: Giant Contact SLR XS:370cm, S:370cm, M:390cm, M/L:390cm, L:390cm, XL:390cm
Grips: Stratus Lite 3.0
Stem: Giant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost: Giant Variant, Composite, -5/+15mm Offset
Saddle: Giant Fleet SL
Pedals: PEDALS NOT SUPPLIED
