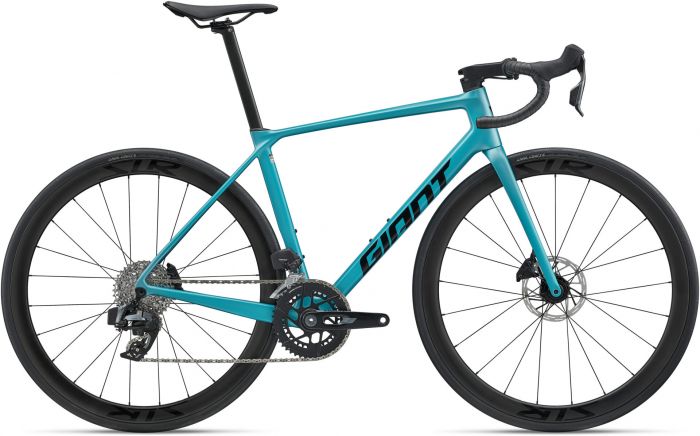

Giant TCR Advanced 0-AXS 2027 Bike

More Information
Brand	Giant
Colour	Teal
Suitable for	Everyone
Wheel Size	700c

Giant started out building Chromoly frames in 1972 and have since pioneered the construction of Aluminium and Composite frames and components. Many of their high-end bikes have won championships and design awards, and with over 12,000 Giant dealers around the world, their long standing reputation clearly precedes them.

Skip to the beginning of the images gallery

Winning race bikes have just the right balance of light weight, superior stiffness and smooth compliance on the road. TCR Advanced delivers on all three.

Features

Class-leading efficiency: A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.

Advanced aerodynamics: This is where the TCR's most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control: A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tyre pressures for increased grip and a reduced risk of punctures.

Technologies

Advanced Composite Technology: Giant's High Performance Grade raw carbon material is used to produce this custom frame material in Giant's own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Power Core: A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Compact Road Design: Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionised the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

Specification

Frame and Forks

Frame: Advanced-Grade Composite, 12 x 142mm Thru-Axle, Disc
Forks: Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12 x 100mm Thru-Axle, Disc

Drivetrain

Crankset: SRAM Rival E1, 33/46 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom Bracket: SRAM DUB, Press Fit
Rear Derailleur: SRAM Rival AXS E1
Front Derailleur: SRAM Rival AXS E1
Cassette: SRAM Rival E1, 12-Speed, 10 x 36
Chain: SRAM Rival E1

Braking/Shifting

Shifters: SRAM Rival AXS E1
Brakes: SRAM Rival E1 Hydraulic, SRAM PaceLine Rotors [F]160mm, [R]140mm
Brake Levers: SRAM Rival AXS

Wheels

Rims: Giant SLR 2 40 WheelSystem, [F]40mm, [R]40mm
Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm Thru-Axle [R] Giant Low Friction Hub, 30 Tooth Pawl Driver, CenterLock, 12mm Thru-Axle
Spokes: Sapim
Tyres: Giant Gavia Course 0, Tubeless, 700 x 30c, Folding

Finishing Kit

Handlebars: Giant Contact XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
Grips: Stratus Lite 3.0
Stem: Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost: Giant Variant, Composite, -5/+15mm Offset
Saddle: Giant Approach
Pedals: PEDALS NOT SUPPLIED
