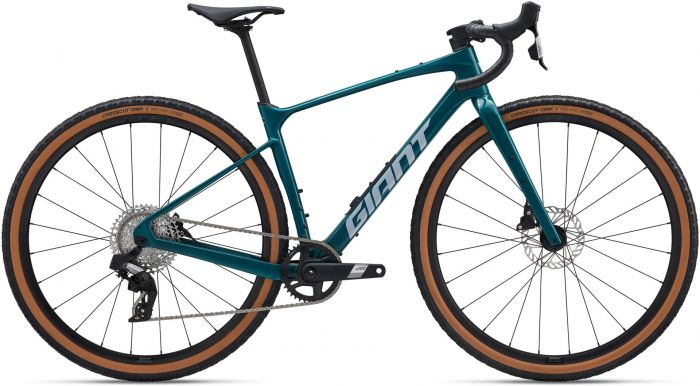

Giant Revolt Advanced 1 2027 Bike

More Information
Brand	Giant
Colour	Abyss Teal
Suitable for	Everyone
Wheel Size	700c

Giant started out building Chromoly frames in 1972 and have since pioneered the construction of Aluminium and Composite frames and components. Many of their high-end bikes have won championships and design awards, and with over 12,000 Giant dealers around the world, their long standing reputation clearly precedes them.

Skip to the beginning of the images gallery

Technologies

Advanced Composite Technology: Giant's High Performance Grade raw carbon material is used to produce this custom frame material in Giant's own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Over Drive: An oversized fork steerer tube increases front-end stiffness for precise steering at speed, giving you greater control through corners and over rough road surfaces.
Tubeless System: Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.
D Fuse Technology: The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.

Specification

Frame and Forks

Frame: Advanced-Grade Composite, 12 x 142mm Thru-Axle, Disc, Flip Chip Dropout, Down Tube Storage
Forks: Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12mm Thru-Axle, Disc

Drivetrain

Crankset: SRAM Apex 1 Wide DUB, 38 Tooth XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket: SRAM DUB, Press Fit
Rear Derailleur: SRAM Apex XPLR
Cassette: SRAM PG-1231, 12-Speed, 11 x 44
Chain: SRAM Apex D1

Braking/Shifting

Shifters: SRAM AXS Apex, 1 x 12
Brakes: SRAM Apex Hydraulic, Giant Mph Rotors [F]160mm, [R]160mm
Brake Levers: SRAM Apex D1, Left Lever Dropper Switch

Wheels

Rims: Giant P-X2 , Alloy
Hubs: Giant Alloy, 12mm Thru-Axle
Spokes: Sapim
Tyres: Giant Crosscut Grip 1, 700 x 45c, Tubeless

Finishing Kit

Handlebars: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips: Stratus Lite 3.0
Stem: Giant Contact AeroLight, -10 Degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost: Giant D-Fuse, Composite, 14mm Offset
Saddle: Giant Grit
Pedals: PEDALS NOT SUPPLIED

Extras

Includes: Tubeless Prepared, In-Frame Storage Bag
