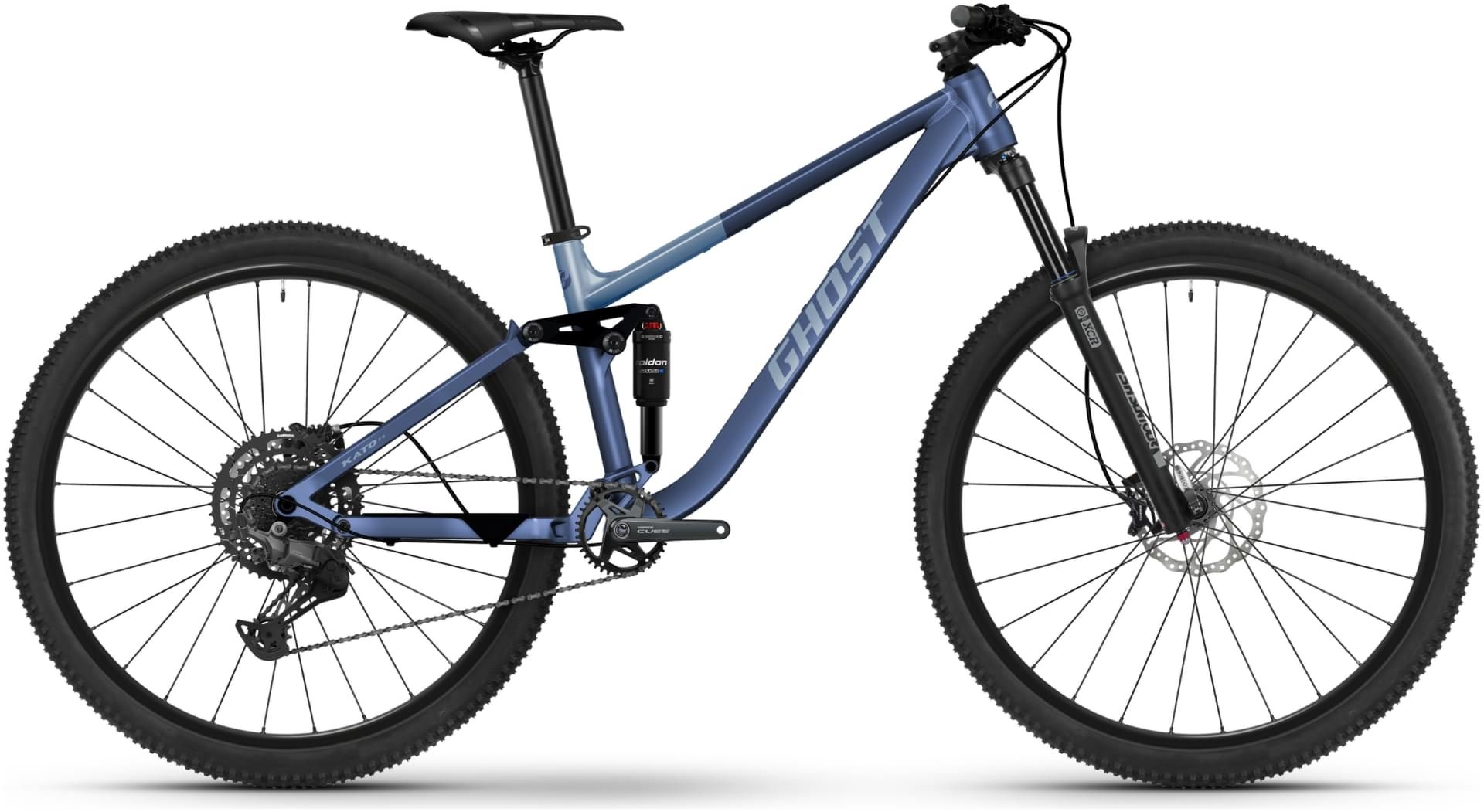

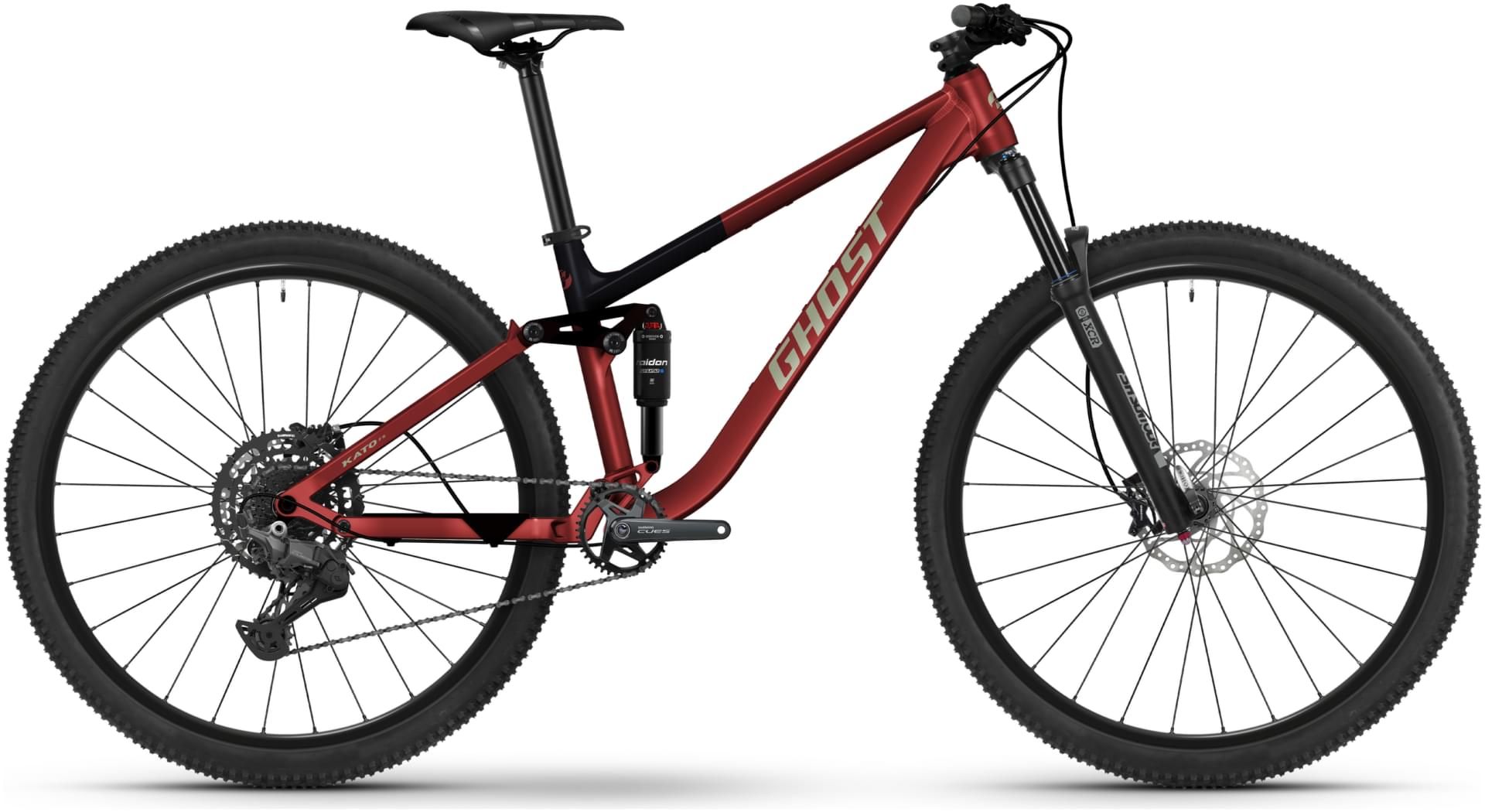

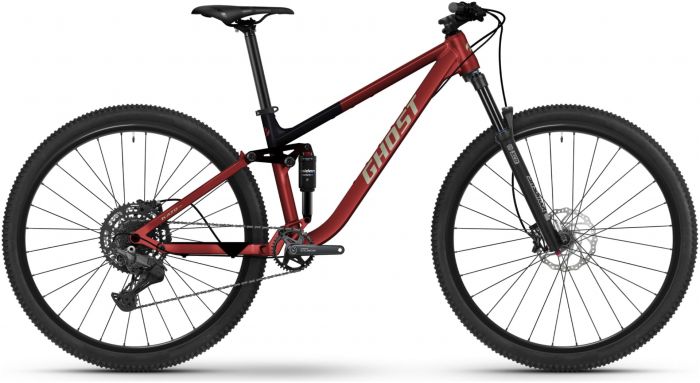

Ghost Kato FS 2026 Bike

The Ghost Kato FS is built for riders who crave full suspension freedom. With a lightweight aluminium frame, efficient 4 bar rear suspension platform, it smooths out rough trails and powers through the climbs with ease. For control, comfort and fun on every ride - choose the Kato FS.

Features

• Alloy Frame
• Suntour XCR34 Boost 2CR Fork
• Suntour Raidon R Rear Shock
• Shimano CUES 10 Speed Gears
• Tektro HD-M535 Hydraulic Disc Brakes

Specification

Frame and Forks

• Forks: XCR34-Boost AIR 2CR DS 15AH2-110 130mm
• Headset: Strummer Headset, 1SI11015Z ZS44/ZS56
• Rear Shock: Raidon R 210 x 50mm, Hardware: 30 x 8

Drivetrain

• Crankset: CUES FC-U4000-1, Dynamic Chain Engagement+
• Bottom Bracket: Deore SM-BB52 68/73mm, HOLLOWTECH II
• Rear Derailleur: CUES RD-U6000 10/11s, Shadow+
• Cassette: CUES CS-LG300-10, HG
• Chain: CN-LG500 9-11s, LINKGLIDE

Braking/Shifting

• Rear Shifter: CUES SL-U6000-10R, Rapidfire+
• Front Brake: HD-M535, 4 Pistons, Resin Pad, 180mm
• Rear Brake: HD-M535, 4 Pistons, Resin Pad, 180mm
• Front Rotor: TR180-35 180mm, CentreLock
• Rear Rotor: TR180-35 180mm, CentreLock

Wheels

• Rims: WR-M17 Disc 25/584 32 Hole 6,5mm Valve
• Front Hub: HF-M15 Boost 15 x 110mm, 32H, CentreLock
• Rear Hub: HR-M15 Boost 12 x 148mm, 32H, Centerlock, HG
• Spokes: DT Swiss
• Tyres: VT-M20 Summit

Finishing Kit

• Handlebars: HB-M30, Dia. 31.8mm, Backsweep: 9°
• Handlebar Width: 760mm
• Stem: ST-M50, Dia. 31.8mm, L: 50mm, A-Head
• Stem Length: 50mm
• Seatpost: Dropper SP-T21, Dia. 31.6mm, Travel: 125mm
• Saddle: SA-S10 143mm Sport
• Pedals: Flat Pedal PD-M29 with Reflector + Integrated Pins

Extras

• Prop Stand: KSA18
