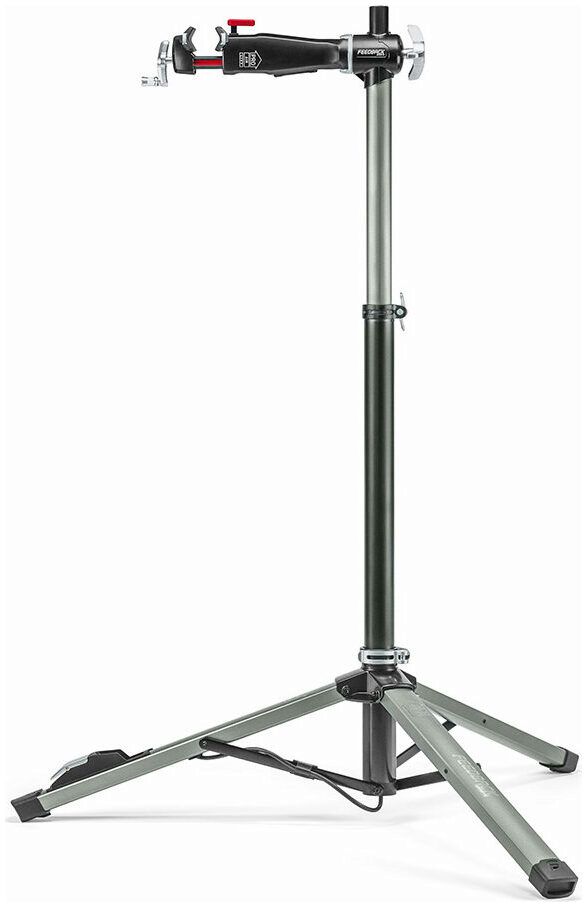

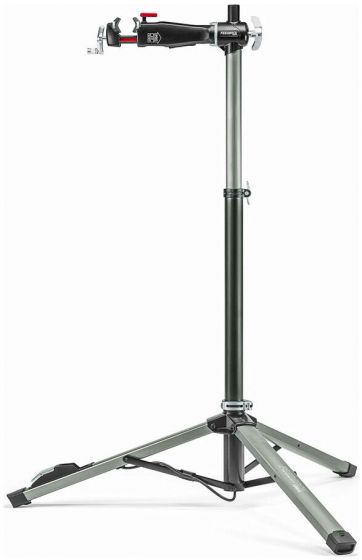

Feedback Sports Pro Air Lift Bike Repair Stand
| Brand | Feedback Sports |
|---|---|
| Colour | Grey |
Introducing the world’s first lightweight and portable air lift bike repair stand. The Pro Air Lift features a pneumatic lift column that can be pressurized with any air source to lift bikes up to 100lbs. - no power source or batteries required. Use a floor pump or air compressor to quickly and smoothly raise your heaviest projects, then use the foot-activated air release valve to safely lower the bike.
Based on Feedback Sports' proven, professional-grade aluminium tripod chassis and Speed Ratchet + Spinner Knob clamp head, the Pro Air Lift is ready for duty at home or out on the road, in any environment, rain or shine.
Features
- Fully portable, lightweight pneumatic lift bike repair stand uses air pressure to lift bikes up to 100lbs. (45kg)

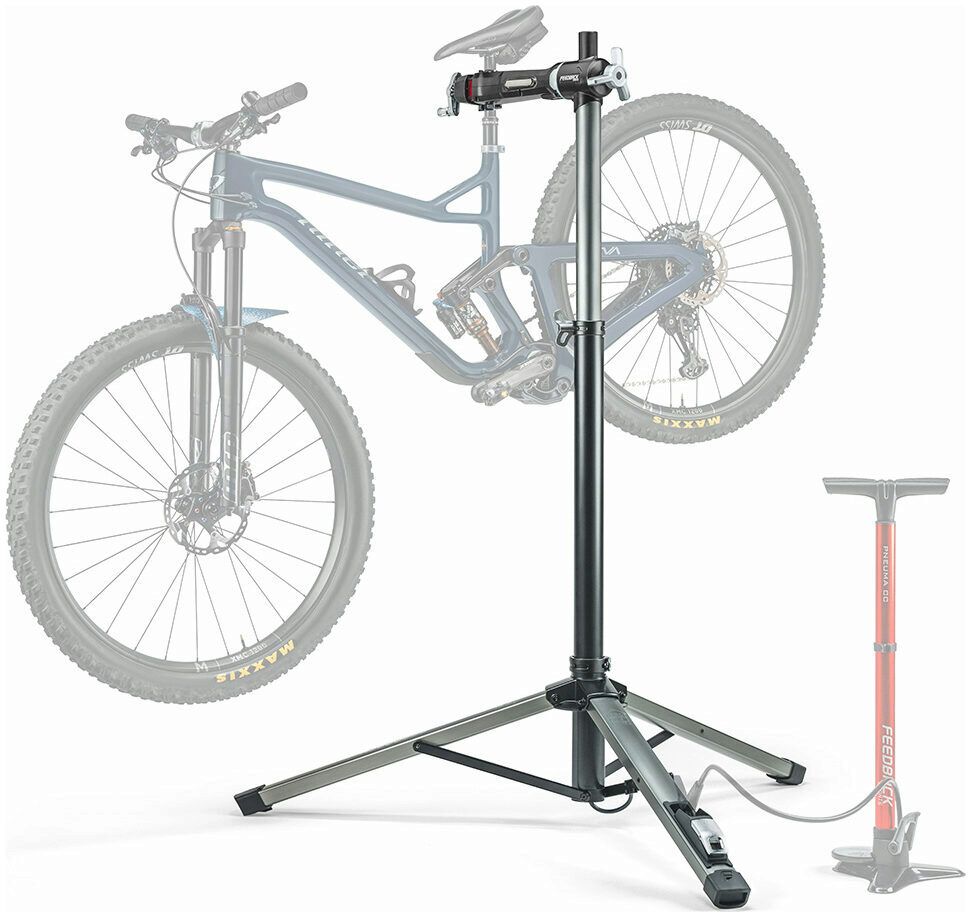

- Pressurize the lift column with a floor pump, electric pump, or air compressor to raise bike up to maximum 66.5" (169cm) height
- Lightweight - only 19.4lbs. / 8.7kg
- Compact - folded dimensions 8.6" x 6.9" x 45.4" / 218mm x 175mm x 1154mm
- Versatile - use as a lift stand with an air pressure source, or use as a traditional repair stand

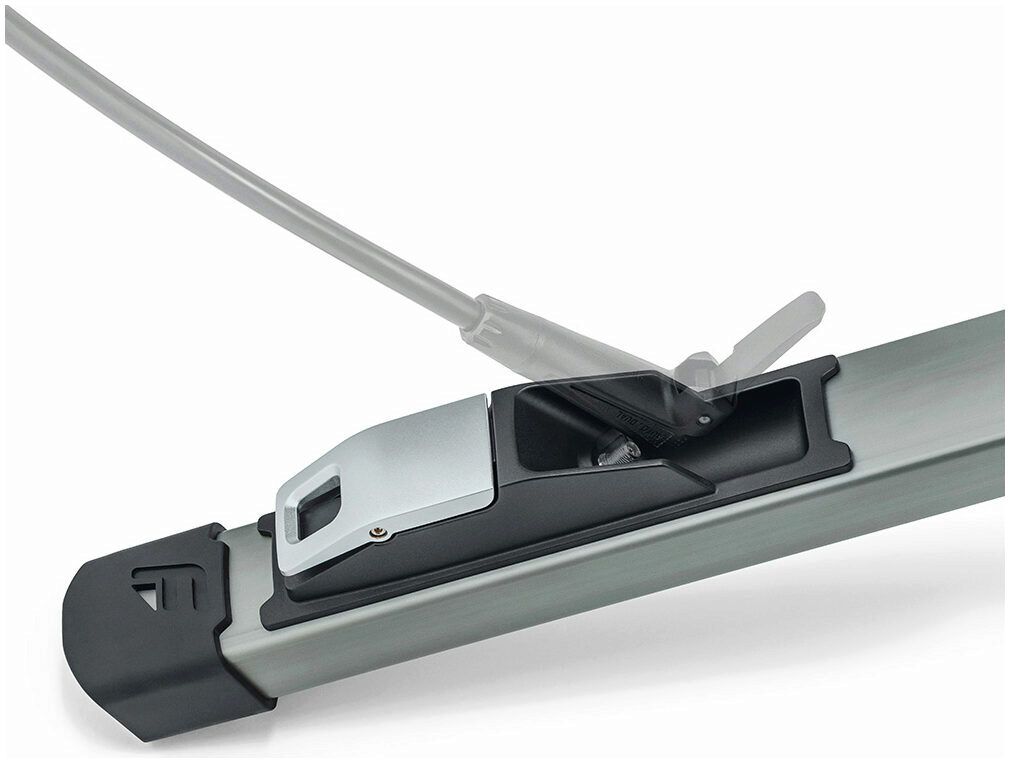

- Lower the bike with a foot operated pressure relief value integrated into tripod leg

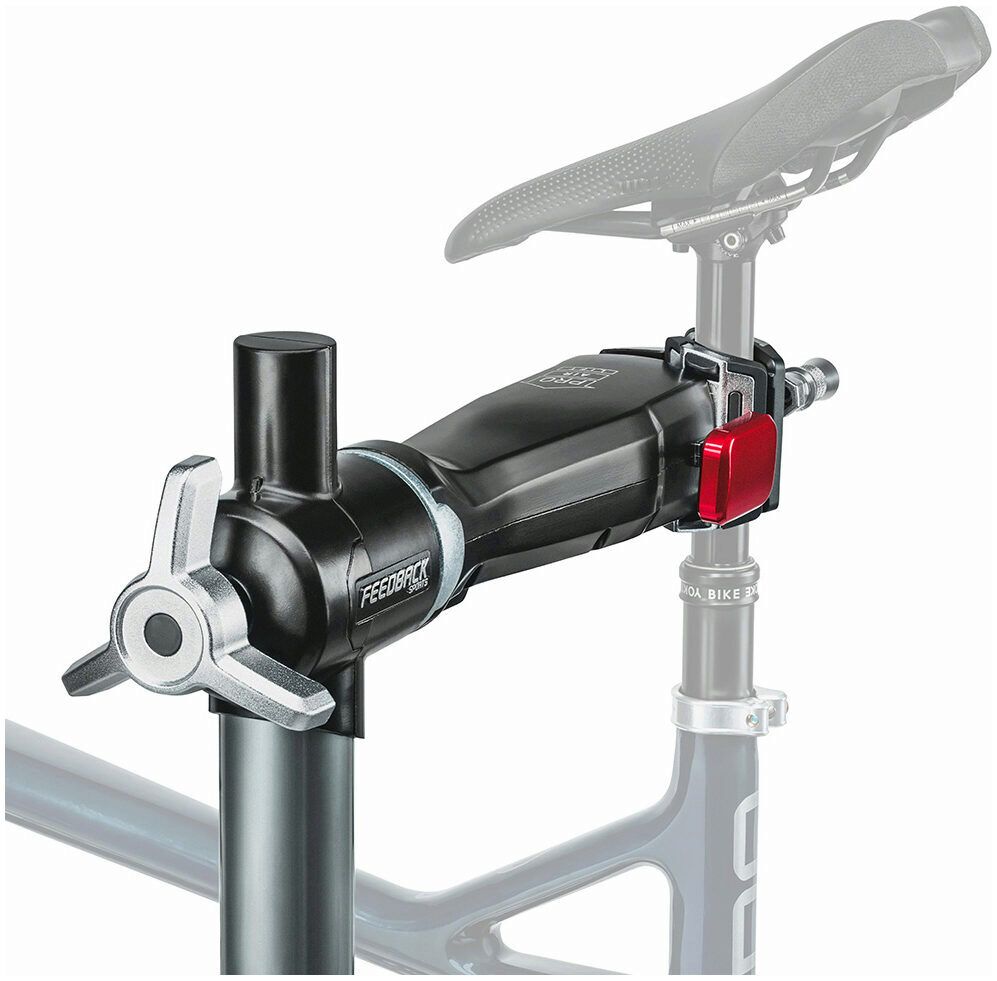

- Trusted and proven Speed Ratchet + Spinner Knob clamp jaw
- Oversized rear tri knob and clutch body for secure 360-degree clamp arm rotation
- Proven, oversized anodised aluminium chassis, metal fittings, and stable rubber tripod feet
- Safety pressure relief ensures that the system cannot be over pressurized
- Compatible with floor pumps, electric pumps, and air compressors with a Schrader valve connection
- Average lift time of a 60lb bike by pump type: Air Compressor at 90 PSI: 3 seconds; High Flow Floor Pump (600 CC volume per stroke): 12 seconds / 8 strokes; High Pressure Floor Pump (195 CC volume per stroke): 18 seconds / 24 strokes
- No battery or electricity required to operate
- Safe for use in wet environments, indoors and outdoors- ideal for washing bikes
- Ships fully assembled
- 3-Year Limited warranty
Specification
- Weight: 19.3lbs
- Maximum Load Capacity: 100lbs
- Clamp Jaw Type: Speed Ratchet + Spinner Knob w/Quick Release
- Clamp Jaw Capacity: Maximum jaw opening 2.6," accommodates round frame tubes maximum 2.6" diameter
- Clamp Height Adjustment Range: Minimum height 42.5", maximum height 66.5" (107cm - 170cm). 24" of clamp height adjustment
- Maximum Clamp Height: 66.5"
- Tripod Leg Stance Width: 56.25" (Diameter)
- Materials: Anodised aluminium clamp head, main tubes, and tripod legs
- Tube and Leg Fittings: Quick release
- Travel Bag: Available separately
- Best for: Heavyweight E-Bikes, Cargo and Utility Bikes, Downhill Mountain Bikes, Lightweight E-Bikes, Enduro and Trail Mountain Bikes, XC and Hardtail Mountain Bikes, Road, Gravel, and Cyclocross Bikes, Urban, Touring and Commuting bikes, Recreational and Kids bikes
