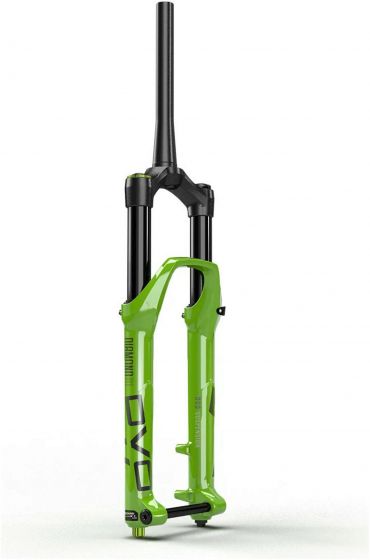

DVO Diamond D1 SL 2025 Fork
- In stock On the shelf in our own warehouse. Order before 2pm and it is despatched the same working day; bikes we build are built, safety-checked and despatched in 2-3 working days.
- In stock with our supplier Not on our shelves, but our supplier has it or it is already on its way to us. We bring it in as soon as you order, and the despatch estimate shown allows for that.
- Out of stock Neither we nor our supplier has it right now. Where a date is shown, more is on order and you can order now to secure one from that delivery.
- Stock to be confirmed Not on our shelves, and our supplier does not send us stock figures for it, so we cannot say how soon we could get one. Use "Check availability" and we will ask them and email you back.
Seen it cheaper? Ask us to price match
Attributes
| Wheel Size | 29-inch |
|---|
About DVO
DVO specialise in mountain bike suspension, including trail, enduro and downhill forks, rear shocks and dropper seatposts. Their independent research and development has led to some very promising products that deliver, and their unconventional colourways can be spotted from afar.
Details
A New Diamond for the Rough
The Diamond series has always been DVO's most versatile, go-to fork for anyone to just mount up and ride. It has a forgiving feel that's comfortable and compliant, but also has the response and control when pushed. Designed for those who have an aggressive trail bike or lightweight E-Bike and looking for a little more oomph from the front-end. It's the missing link if you're lacking comfort, traction, or reaching the limit of your current setup.
A full gamut of upgrades make this generation Diamond D1 shine brighter than ever before. Upgraded to a robust 36mm chassis to deliver exceptional control in rough sections, a redesigned crown with increased knob clearance, DVO's industry leading SL air spring, remastered D1 damper, and an all new 3D machining process for incredible alignment and that buttery smooth feel. Versatility, precision, and comfort to get you the most out of every kind of trail. The next generation Diamond for the Rough is here.
Technology
Remastered D1 Damper
DVO's new and improved D1 damper utilizes a 22% increase in bladder volume in bladder volume, giving you that small bump comfort you're always after while combating any cavitation at high speeds. On the compression side DVO has drastically improved the feel on high speed hits by reducing progression in the damper system. think of it as the wheel getting out of the way when you hit a square edge or rock instead of pushing back with resistance and causing harshness.
The updated rebound design reduces damping force at high-speeds allowing the fork to recover quicker after being deep int he travel. It fives the front end of your bike a free feeling when pulling up on the bars and control when on the edge of your tyres.
SL Super-Light Air System
After countless simulations, calculations and prototypes, DVO nailed a dual air system that could offer amazing small bump sensitivity, mid-stroke support and bottom out resistance.
Purpose-Built Crown
- 24% increase in knob clearance for improved turning radius and down-tube clearance
- Strategically variable wall-thickness for improved stiffness and strength
- Oversized crown-race platform puts more material around the steerer tube. This helps to stabilize the steerer in high-load situations and offers a clean look on modern bikes
Integrated Fender
Three fixing locations and webbing cover offer a clean and sturdy integration.
Specification
- Adjustments: High/Low Speed Compression | Rebound | Volume Spacers
- Travel Range: 140-160mm (160mm stock)
- Starting Weight: 2200g
- Offset: 44mm
- Axle to Crown: 572mm
- Measurements at max travels (160mm)
- Stanchions: 36mm Tapered Alloy
- Wheel Size: 29"
- Axle: 15mm Bolted- Boost Spacing
- Brake Mounting: Direct Mount 180mm
