Deda DCR Integrated Headset
- In stock On the shelf in our own warehouse. Order before 2pm and it is despatched the same working day; bikes we build are built, safety-checked and despatched in 2-3 working days.
- In stock with our supplier Not on our shelves, but our supplier has it or it is already on its way to us. We bring it in as soon as you order, and the despatch estimate shown allows for that.
- Out of stock Neither we nor our supplier has it right now. Where a date is shown, more is on order and you can order now to secure one from that delivery.
- Stock to be confirmed Not on our shelves, and our supplier does not send us stock figures for it, so we cannot say how soon we could get one. Use "Check availability" and we will ask them and email you back.
Seen it cheaper? Ask us to price match
Attributes
| Colour | Black |
|---|
About Deda
Details

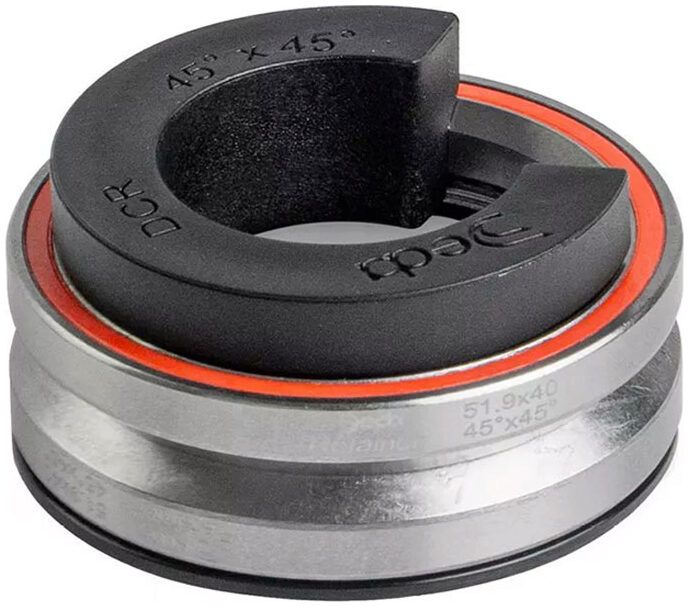

Integrated headset for DCR (Deda internal cable routing) system and compatible with Vinci, Alanera RS and Superbox stem. It allows the full integration of the cables through the headset bearing. The DCR system works with a standard tapered fork steerer (1-1/8" - 1.5"), but requires a 52mm (1.5") upper headset bearing od.
The special compression ring design leaves room for the cables to fit the gap in between the headset bearing and the fork. The DCR topcover for Alanera RS, Superbox and Vinci is not included in the kit, but available to purchase separately.

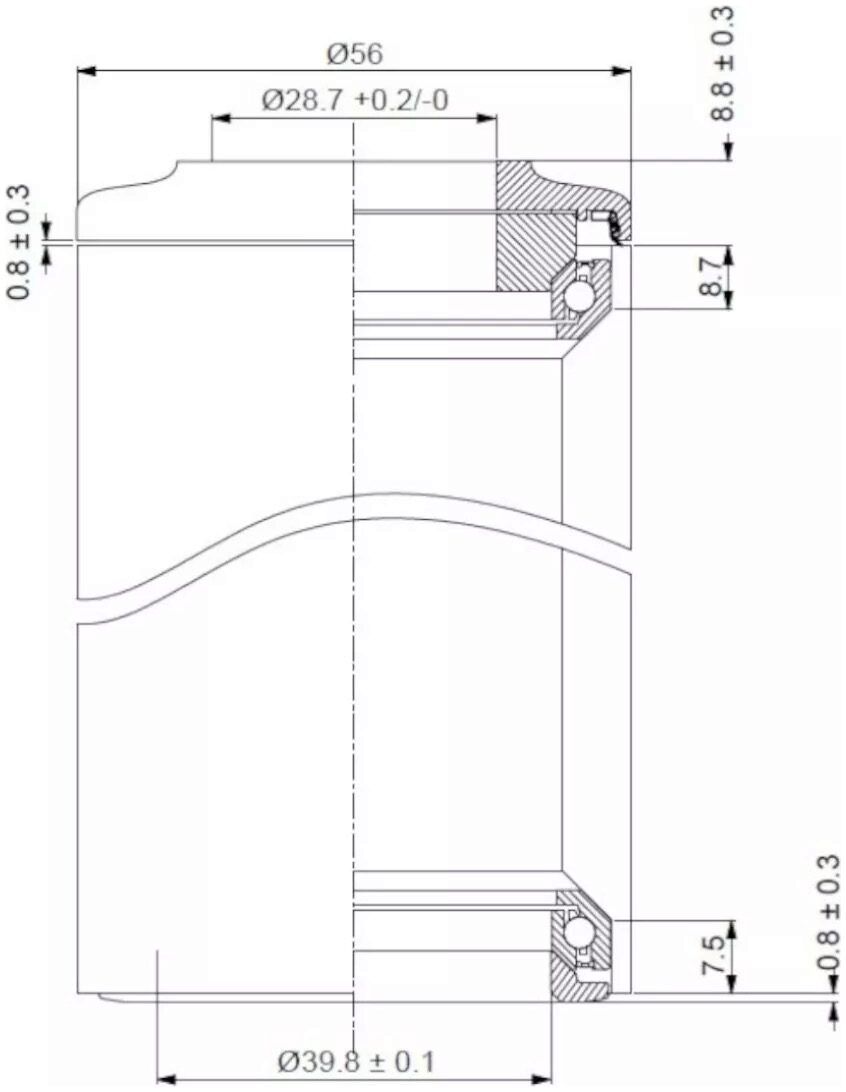

Specification
- Headset Model: Integrated 1.5" - 1.5"
- Bearings Type: angular contact bearing; chrome steel
- Bearings Size:
- Upper: 51.9 x 40 x 8mm
- Lower: 51.9 x 40 x 8mm
- Contact Angle:
- Upper: 45 x 45°
- Lower: 45 x 45° or 36 x 45°
- Headtube Diameter: 56.0mm
- Fork Steerer: Tapered 1 1/8" (28.6mm) - 1.5" (38.10mm)
- Top Cover Diameter: 56mm
- Crown race (Only for 45° x 45° version): 39.8mm aluminium
- Stack Height: 9.6mm (8.8 + 0.8)
- Weight: 80g
Note: Compatible with ø 56mm frame headtube designed for 1.5" bearings (Upper & lower). The DCR topcover for Alanera RS, Vinci and Superbox is not included in the kit, but available to purchase separately.
