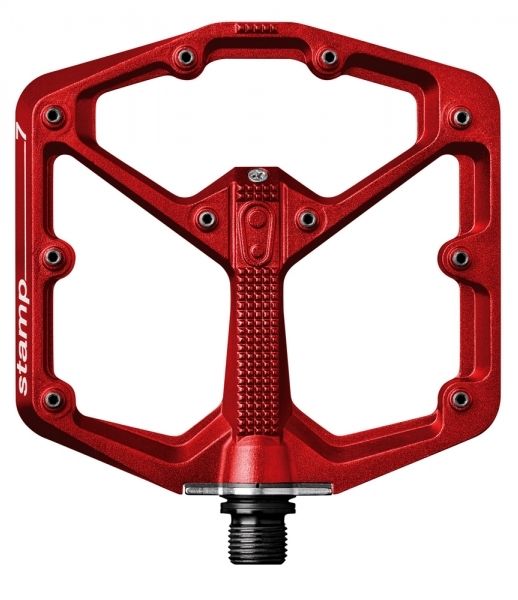

Crank Brothers Stamp 7 Pedals
- In stock On the shelf in our own warehouse. Order before 2pm and it is despatched the same working day; bikes we build are built, safety-checked and despatched in 2-3 working days.
- In stock with our supplier Not on our shelves, but our supplier has it or it is already on its way to us. We bring it in as soon as you order, and the despatch estimate shown allows for that.
- Out of stock Neither we nor our supplier has it right now. Where a date is shown, more is on order and you can order now to secure one from that delivery.
- Stock to be confirmed Not on our shelves, and our supplier does not send us stock figures for it, so we cannot say how soon we could get one. Use "Check availability" and we will ask them and email you back.
Seen it cheaper? Ask us to price match
Attributes
| Pedal Sizes | 9/16" |
|---|
About Crank Brothers
Crank Brothers specialise in aftermarket mountain bike components as well as non-specific tools and accessories. Their design motive is to think outside the box, bringing super-modern looks and high-tech functionality to your bike. Design & Innovation awards precede their reputation.
Details
The Crank Brothers Stamp pedals are designed to improve the connection between you and your bike by facilitating an optimised interface for shoe and pedal. The Stamp 7 has a lightweight aluminium body and features differing external and internal thicknesses for a concave shape. The two distinctly different pedal sizes offer optimal shoe/pedal contact for any shoe size. Greater traction allows for increased control, power and confidence whilst riding. Chromoly steel axle and premium internal components make this a pedal that will last.
The small pedal size is for shoe sizes 37-43 and the large pedal size is for shoe sizes 43-49.
Features
- Anodised, Forged 6061-T6 aluminium body
- Concave pedal platform
- 13mm external and 11mm internal thicknesses
- 20 adjustable pins in each pedal
- Inner Igus LL-glide bearing made exclusively for Crank Brothers
- Double seal system keeps water etc out
- Fully rebuild-able for simple maintenance
- 16mm profile
Specification
- Weight: 345g (Small), 375g (Large)
- Spindle: Forged scm 435 chromoly steel
- Body: Forged 6061-T6
- Inner bearing: Igus LL-glide bearing
- Outer bearing: Igus LL-glide bearing
- Body dimensions: 100mm x 100mm (Small), 114mm x 111m (Large)
- Pins: 10 adjustable pins per side
- Warranty: 5 years
