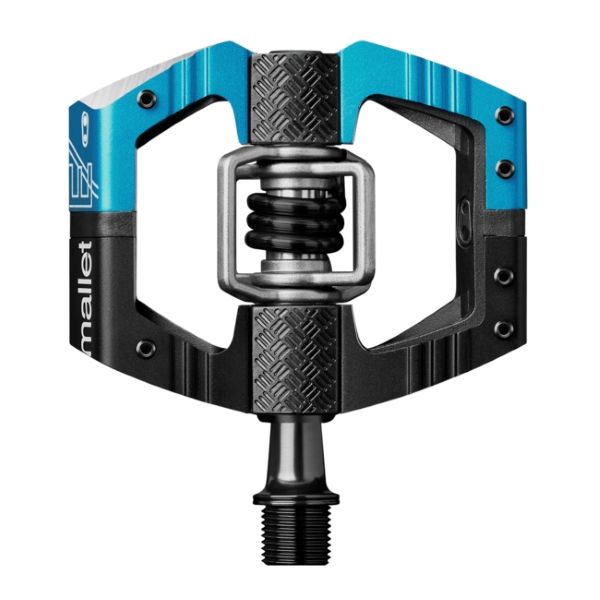

Crank Brothers Mallet E LS Pedals
- In stock On the shelf in our own warehouse. Order before 2pm and it is despatched the same working day; bikes we build are built, safety-checked and despatched in 2-3 working days.
- In stock with our supplier Not on our shelves, but our supplier has it or it is already on its way to us. We bring it in as soon as you order, and the despatch estimate shown allows for that.
- Out of stock Neither we nor our supplier has it right now. Where a date is shown, more is on order and you can order now to secure one from that delivery.
- Stock to be confirmed Not on our shelves, and our supplier does not send us stock figures for it, so we cannot say how soon we could get one. Use "Check availability" and we will ask them and email you back.
Seen it cheaper? Ask us to price match
Attributes
| Pedal Sizes | 9/16" |
|---|
About Crank Brothers
Crank Brothers specialise in aftermarket mountain bike components as well as non-specific tools and accessories. Their design motive is to think outside the box, bringing super-modern looks and high-tech functionality to your bike. Design & Innovation awards precede their reputation.
Details
The Crank Brothers Mallet E LS Pedals have been designed with Enduro in mind and have integrated feedback from top Enduro riders to create a pedal which performs at the highest level. The "LS" stands for "Long Spindle", with a 57mm axle rather than the standard 52mm. This longer spindle will give you a slightly wider Q-factor, which you might be used to if you have been using other Downhill purpose pedals. Other than alternate axle this is the same as the other Mallet E pedals.
Features:
- Concave pedal platform for secure foothold. Like it's DH equivalent you get that flat pedal feel whilst running clipless
- 49g lighter and 12% smaller pedal body than the crankbrothers Mallet DH pedal
- Ribbed body allows for better traction when unclipped
- Chamfered edges for reduction in rock strikes
- Excellent mud-shedding: the design is very open
- 4-sided entry: clip in on all 4 sides of the pedal, by pushing forward or pulling backwards on the pedal
- Increased float: 6° of side-to-side rotational play
- Fit adjustment: can be adjusted for either 15° or 20° release angle
- Zero-float cleats can be purchased separately
- Outer enduro cartridge bearing is designed specifically for pedals
- Double seal system combines a double lip internal seal and a new external seal to keep water and debris from entering the pedal
Spec:
- Weight (per pair) - 424g
- Spindle - 57mm - 435 chromoly steel
- Body - 6061-T6 aluminium
- Wings - 17-4PH stainless Spring - 300 series stainless steel
- Inner bearing - Igus LL-glide bearing
- Outer bearing - Enduro cartridge bearing
- Pins - 12 pins per pedal
- Cleats - Premium brass cleats included
- Release angle - 15° or 20°
