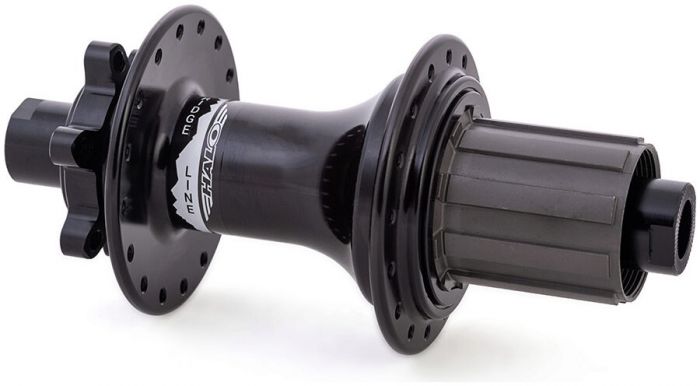

Halo RL II Rear Hub

RL II series rear MTB hubs offer premier performance for Off Road use at an entry level price.

Sealed cartridge bearings and wide flange spacing are standard for the RL series.

Using a hi-strength Cr-Mo steel tube main axle ensures these hubs are reliable.

The RL II Freehub drive system features 4 independently sprung pawls for added security.

Halo also feature Cr-Mo freehub bodies to resist 'cassette cog bite' and ensure durability.

Freehubs are available in classic Shimano HG spline type or Shimano Micro-Spline formats with SRAM XD Freehubs available as an aftermarket option.

RL II rear hubs are available in Standard 142mm spacing or 148mm Boost format for use on 12mm thru axle frames.

Optional aftermarket endcaps enable the HG version hubs to also fit with QR format frames.

Specification

• Shell Material: 6061 Alloy Forged Hub Shell
• Drillings: 32 Hole
• Axle Material: Cro Mo
• Disc Mount: IS 6 Bolt
• Ratchet: 4 Pawl, Independently Sprung Mechanism
• Freehub: Shimano HG Type or MS
• Freehub Body: Cro-Mo Steel
• Spoke Hole Circle Diameter (pcd): 58mm
• Centre To Flange: Boost: Left: 37mm, Right: 20mm
• Bearings: 2 x 6902 (Hub), 2 x 6902 (HG Freehub) Or 2 x 6802 (MS Freehub)
• Old (spacing): Boost: 148mm
