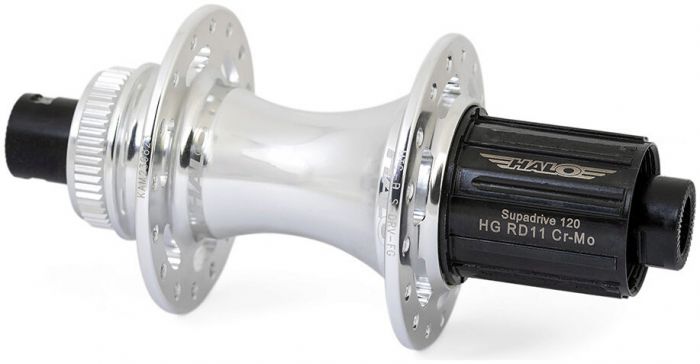

Halo MTC Rear Hub

Halo's MTC series hubs are Halo's center lock mountain bike hub range. The MTC series encompass everything Halo feel hubs for mountain biking should offer.

Durability, modularity and light weights make the MTC Series a simple choice.

Suited best to XC, trail and enduro bikes alike, the MTC SupaDrive hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads, such as those found with wide range cassettes. With multiple World Championship titles across a range of disciplines the SupaDrive system is tried and tested to the very highest level and is Halo's most advanced and reliable drive system to date.

Wide spoke flanges, sealed cartridge bearings and a Cr-Mo tube axle in the MTC SupaDrive Boost hub ensure longevity.

Designed to be run with 12 speed Shimano mountain bike gearing, the MTC SupaDrive Boost hub features a Micro Spline freehub.

Please note that the Micro Spline freehub option cannot be run with QR configurations.

Included Fittings

Features

• Rear 148 x 12mm thru

Specification

• Shell Material: 6061 Alloy
• Drillings: 32 Hole
• Axle Material: Cr-Mo Steel
• Axle Dimensions: 148 x 12mm
• Disc Mount: Center Lock
• Ratchet: 120 Teeth Triple-Wedge Pawl Mechanism
• Freehub Material: 7075 Alloy
• Spoke Hole Circle Diameter (pcd): 58mm
• Centre To Flange: C-L 33mm, C-R 21mm
• Bearings: 2 x 6902 (Hub) 3 x 6802 (Freehub)
• Old (spacing): 148mm
• Model Ref: MTC-B S-DRV-FG
