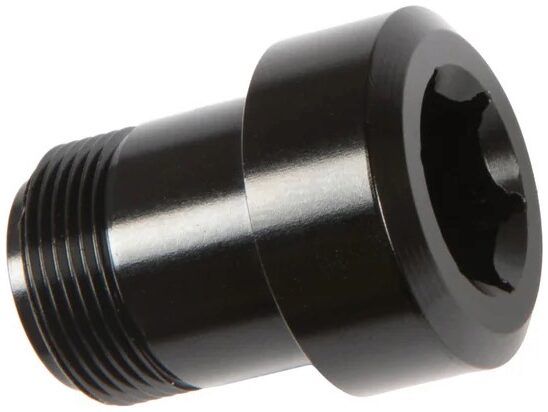

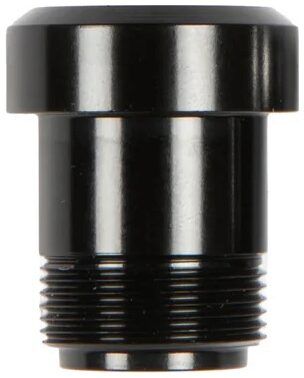

Restrap Switch GX Full Mount Adapter

A direct replacement for SRAM’s Full Mount Bolt Kit, designed to enable compatibility with Restrap’s Switch Axle and Switch Rack System on GX, XX, and X0 T-Type transmissions.

Available in two variations, determining what bolt kit you need:

Full Mount Adapter FM23 (GX)

• GX Eagle Transmission: RD-GX-E-B1
• Force XPLR AXS Transmission: RD-FRC-1E-E1
• Rival XPLR AXS Transmission: RD-RIV-1E-E1
• Eagle 70 Transmission: RD-70-A1
• Eagle 90 Transmission: RD-90-A
• S1000 Eagle Transmission: RD-S1000-E-A1

Full Mount Adapter FM24 (XX/XO)

• XX SL Eagle Transmission: RD-XX-SLE-B1
• XX Eagle Transmission: RD-XX-E-B1
• X0 Eagle Transmission: RD-XO-E-B1
• RED XPLR AXS Transmission: RD-RED-1E-E1

Fitting

• Put your bike into the red setting gear on the cassette and engage the clutch release
• Partially remove your current thru-axle
• Undo and remove the bolt derailleur with an 8mm hex key
• Replace with the Restrap bolt, using the supplier adapter if you do not have a 12mm hex key
• Swap in the Switch Axle and tighten

Specification

• Size: Diameter of 23mm x H:28.80mm
• Weight: 13.8g
• Torque: 35Nm

Compatibility

Designed for use with Restrap Switch Axle, 1mm thread pitch.
