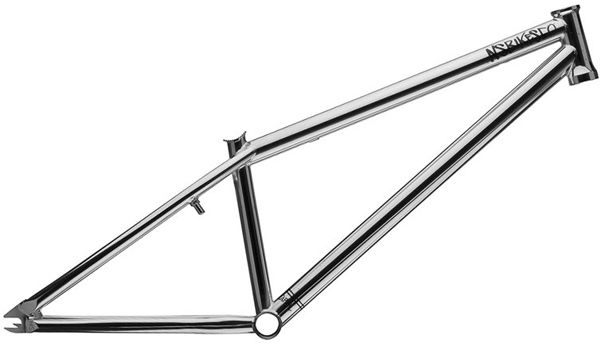

NS Capital 26 2012 Frame

Remember that the Capital is not a big street bmx cruiser. The geometry is radical but still connected with mtb world, you can use rigid forks or short travel suspension. But the parts that you should spec come straight from 20" world - a bmx hub (110x14), Spanish bb, integrated headset, integrated pivotal post, removable U-brakes bosses in the case you need them… simply a pure street frame.

Specification

• Material: custom butted 4130 cromoly
• Recommended fork travel: 60-100mm or rigid forks 420-440mm
• Top tube (physical c-c): 556mm / 21.9"
• Chain stays: 370mm / 14.5" slammed
• Headset: integrated headset, Campy spec (45x45°, OD41.8mm)
• Head tube stack: 115mm / 4.5"
• BB: Spanish
• Biggest chainring: up to ~30t depending on cranks, axle length, bb spacers, hub used / chain line
• Sprockets with guards e.g. Odyssey MDS will fit only without internal guard
• BMX hub spacing (O.L.D 110 x 14mm), accepts both right & left side drive hubs
• Capital is the only NS frame that accept use of pegs
• Removable U-brakes hardware (cable guide, cable stopper and brake pivots)
• Max tyre size: 26"x2.2"
• Built in pivotal seat post
• Size: 286mm / 11.3",
• Weight: ~2.36 kg
