Wolf Tooth 104BCD Chainring

104 BCD is the most common bolt pattern on double and triple cranksets and happens to be the first product ever made by Wolf Tooth Components. This chainring started it all for us. The Drop-Stop tooth design is the best performing and longest lasting wide/narrow chainrings on the market.

Drop-Stop technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.

Features

• Fits any 104 BCD crankset
• Designed to meet the requirements for E-Bike use
• Chainring Bolts: All tooth sizes require 1x bolts that are 6mm long, except 30T rings which are threaded and require bolts that are 7–10mm long

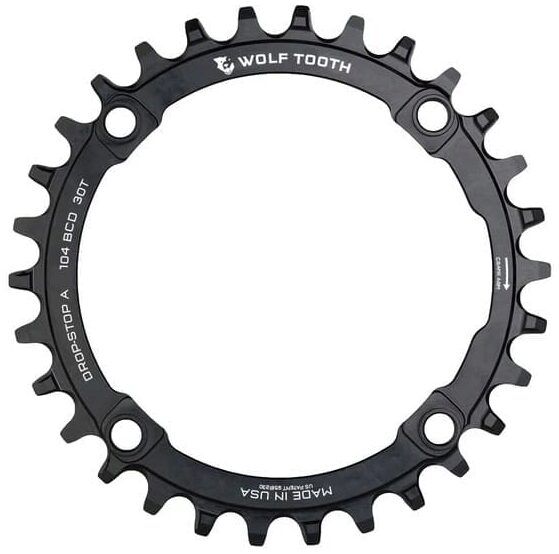

• 104 x 30T - use 10mm bolts

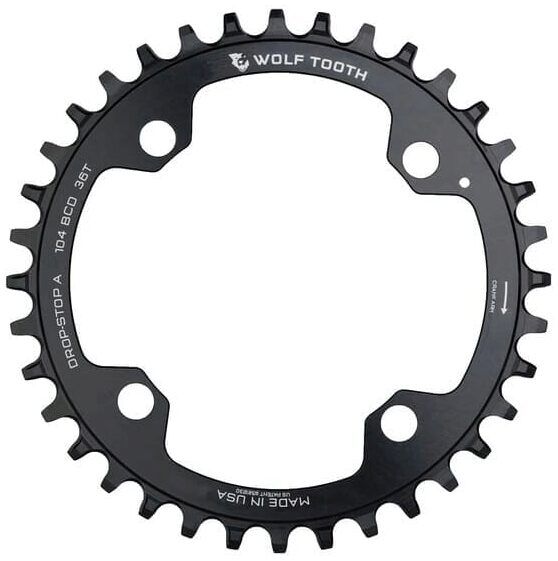

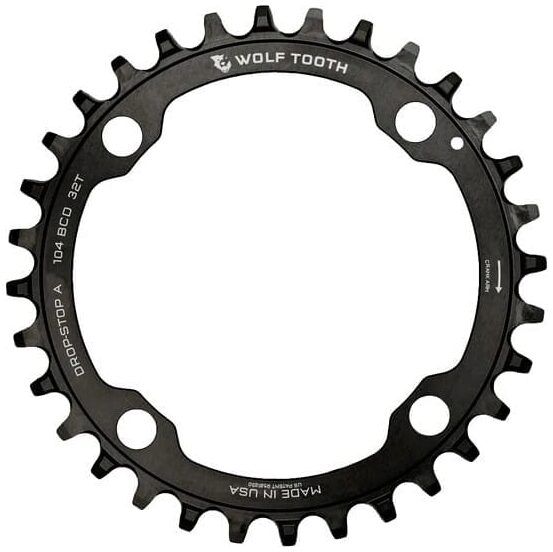

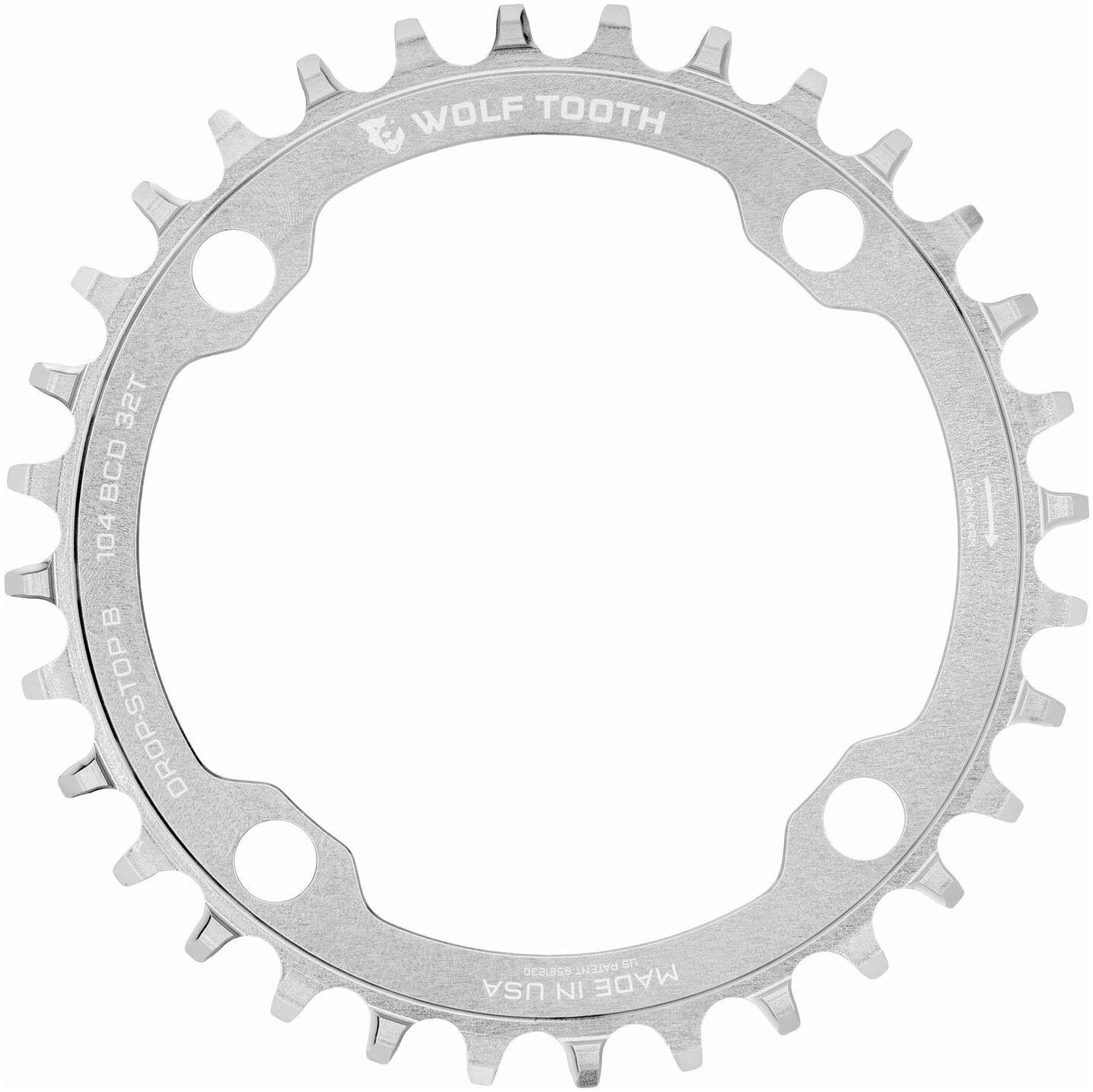

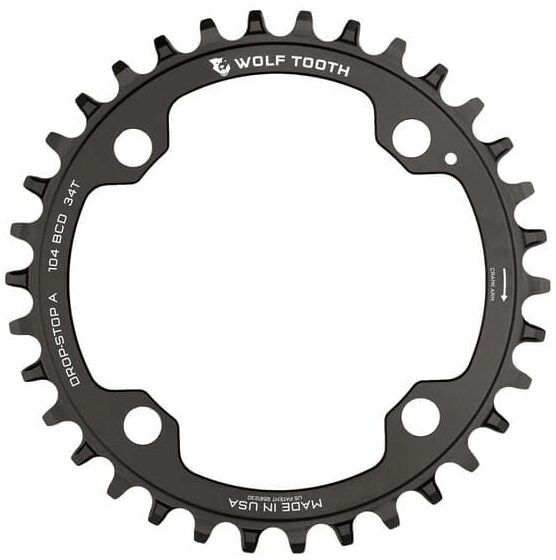

• Sizes: 32T, 34T, 36T or 38T - use 6mm bolts, unless using a bashring

Specification

• Chainring Bolt Requirements for Bashring:
• 104 x 30T - 10mm bolts are required for use with the bashring
• Other 104 BCD sizes - 8mm bolts are required (Stock size on 3x cranksets holding the middle and big rings on). Wolf Tooth does not make these
• All sizes of 104 BCD chainrings are compatible with QUARQ power meters
• He Wolf Tooth 30T is the only 104 BCD chainring made in the market, and it is compatible with Quarq. This chainring is offset 2mm
