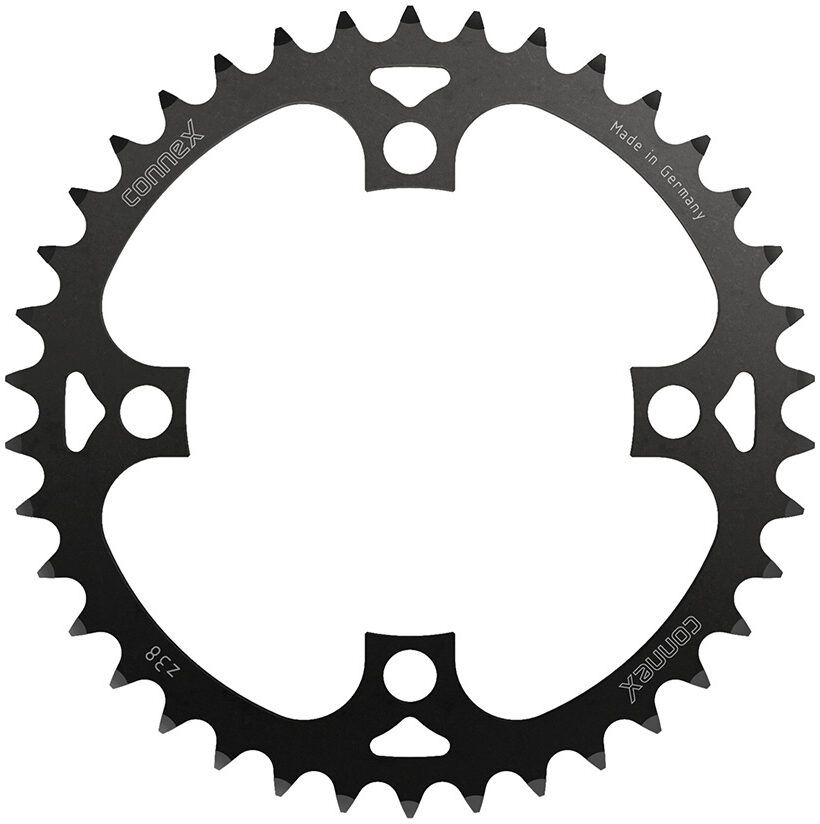

Connex Flat Toothed 104BCD Chainring

Steel Chainring With Standard Type Teeth 104 BCD

These hard-wearing E-Bike suitable chainrings are designed for normal loads encountered in the E-Bike leisure sector.

Wippermann utilises the processes established in their industrial sector for hardening the Connex chainrings, as well as the particularly high-performance cathodic dip coating. Specially developed for the high loads caused by E-Bike drives, they are compatible for use with all common drive systems from BOSCH, Yamaha, Brose, Bafang and many more. Of course, those bikes powered by human muscles can also benefit from using steel Connex super-hard wearing, high-performance chainrings.

Features

• Made from hardened steel with black KTL-coating
• Suitable for use on BOSCH, Yamaha, Brose, Bafang and other systems
• Suitable for 1/2" x 3/32" and 1/2" x 11/128"

Specification

• Bolt Circle Diameter: 104mm
• Spider Fitting: 4-Arm
• Tooth Profile: Standard (Flat)
• Sizes: 32, 34, 36, 38, 40, 42 and 44 teeth
