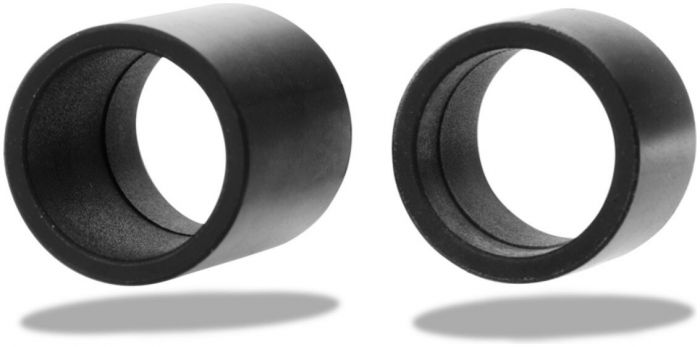

Bosch Wide Bushing Kit
- In stock On the shelf in our own warehouse. Order before 2pm and it is despatched the same working day; bikes we build are built, safety-checked and despatched in 2-3 working days.
- In stock with our supplier Not on our shelves, but our supplier has it or it is already on its way to us. We bring it in as soon as you order, and the despatch estimate shown allows for that.
- Out of stock Neither we nor our supplier has it right now. Where a date is shown, more is on order and you can order now to secure one from that delivery.
- Stock to be confirmed Not on our shelves, and our supplier does not send us stock figures for it, so we cannot say how soon we could get one. Use "Check availability" and we will ask them and email you back.
Seen it cheaper? Ask us to price match
Attributes
| Colour | Black |
|---|---|
| Suitable for | Everyone |
About BOSCH
Founded in 2009, Bosch eBike Systems has developed from a start-up to a global player. Nowadays over 100 leading bike brands worldwide trust "Bosch epowered" components. The high quality and reliability, the powerful drive units and durable batteries ensure riding enjoyment across Europe, North America, Asia, and Australia.
Details
This frame bushing set is suitable for installing the BDU31YY, BDU34YY and BDU38YY drive units with wide mount. These frame bushings may only be installed with the corresponding bolt set EB1190002G for wide frame bushings (BDU31YY, BDU34YY, BDU38YY).
Since August 2025, there has been a new mounting concept for the BDU31YY (Narrow variant, or wide variant including adapter), BDU34YY and BDU38YY drive units.
The frame sleeves used so far are being replaced by frame bushings. The frame bushings and associated bolts are backwards compatible with the drive units that were still installed with frame sleeves. The adapter remains unchanged.
What's Included?
- 1 x frame bushing narrow
- 1 x frame bushing wide
Note: The wide version of the Performance Line SX up to 2026 EB1110000X (BDU3143) / EB1110000Y (BDU3145) should still be installed using the screws from the previous mounting solution (EB11900011) together with the new frame bushings (EB1190002H).
