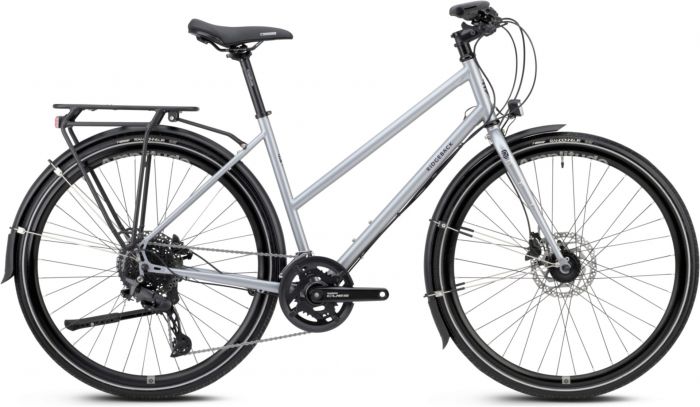

Ridgeback Voyage Open Frame 2026 Bike

The Ridgeback Voyage Open Frame has everything that makes the Voyage such a capable everyday bike - hydraulic disc brakes, dynamo lighting, Shimano CUES 10-Speed gearing and a child seat-compatible rack - built around a low step-through frame that makes getting on and off far easier, whatever you are wearing and wherever you are going.

An open frame makes sense for all kinds of riders: commuting in work clothes, getting back on the bike after an injury, or simply finding a traditional frame awkward to swing a leg over with a loaded backpack on. It is a small thing that quickly becomes a good reason to ride more often.

Underneath the frame shape the specification matches the Voyage. The Reynolds 520 chromoly steel frame gives the same smooth, comfortable ride over a full day of mixed town and leisure riding, the Shimano CUES 2x10-Speed drivetrain gives the same wide, well-spaced range of gears, and Shimano MT-200 hydraulic disc brakes give the same confident, low-effort stopping. Busch & Müller dynamo lighting, powered by a Shimano DH-3D32 hub, keeps it ready for dark winter commutes.

The AtranVelo Delta AVS+ rear rack carries up to 27kg and takes the Urban Iki range of child seats, making the Voyage Open Frame a natural choice for families who want one bike for the school run in the morning and a longer ride at the weekend. Puncture-resistant Vittoria Randonneur 700 x 40c tyres and full-length mudguards mean the ride goes well whatever the weather or the roads, and the frame and fork carry a lifetime warranty.

Features

• Reynolds 520 chromoly steel open frame - low step-through design, backed by a lifetime warranty
• Shimano CUES 2x10-Speed drivetrain - wide-range, reliable gearing
• Busch & Müller dynamo lighting - always-on visibility, front and rear
• Shimano MT-200 hydraulic disc brakes - consistent stopping in all conditions
• AtranVelo AVS+ rear rack - 27kg capacity, compatible with Urban Iki child seats
• Vittoria Randonneur 700 x 40c tyres - wide, comfortable and puncture resistant
• Full-length mudguards - ride clean all year

Specification

Frame and Forks

• Frame: Ridgeback Reynolds 520 chromoly steel, 135mm OLD, quick release
• Forks: Ridgeback chromoly, 1-1 / 8" steerer, 100mm OLD, quick release
• Headset: EC34 / EC34
• Max Tyre Clearance: 45mm without mudguards

Drivetrain

• Crankset: Shimano CUES FC-U4010, 46-30T, 170mm (X-Small, Small, Medium), 175mm (Large)
• Bottom Bracket: Shimano BSA 68mm
• Rear Derailleur: Shimano CUES RD-U6020, 10-Speed
• Front Derailleur: Shimano CUES FD-6010, 2-Speed
• Cassette: Shimano CUES LG300-10, 11-39T
• Chain: KMC XGlide, EPT coating
• Number of Gears: 20

Braking / Shifting

• Shifters: Shimano CUES SL-U6000, 2x10-Speed
• Brakes: Shimano MT-200 hydraulic disc, 180mm front and rear rotors

Wheels

• Wheel Size: 700c
• Rims: Amplitude GR700, 36h
• Hubs: Shimano DH-3D32 dynamo front, Shimano QB400 rear, 36H, 6-bolt
• Spokes: Double butted 14G stainless
• Tyres: Vittoria Randonneur 700 x 40c

Finishing Kit

• Handlebars: Amplitude aluminium, 660mm (X-Small), 680mm (Small, Medium), 700mm (Large)
• Grips: Lock-on dual density
• Stem: Amplitude aluminium, 70mm
• Seatpost: Amplitude aluminium, 27.2 x 350mm
• Seat Clamp: Aluminium, 29.8mm
• Saddle: Madison Metro, 190 x 272mm
• Pedals: NW-303 flat

Extras

• Pannier Rack: AtranVelo Delta BS AVS+, 27kg limit
• Mudguards: Full length
• Front Light: Busch & Müller Briq-S T Senso, 60 lux, with standlight
• Rear Light: Busch & Müller Toplight 2C
• Dynamo: Shimano DH-3D32 front hub
• Kickstand: AtranVelo Parko HV
