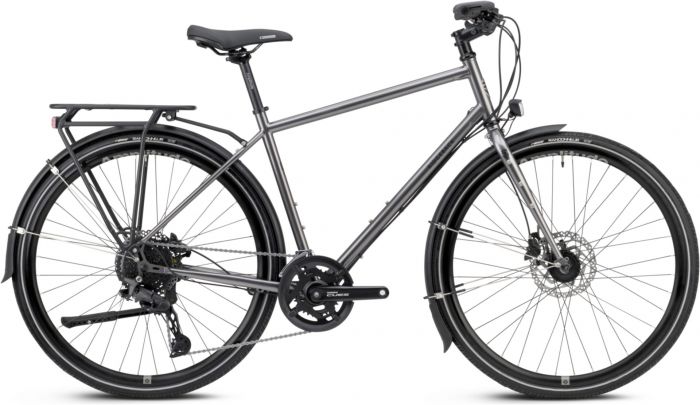

Ridgeback Voyage 2026 Bike

The Ridgeback Voyage is built for a life that rarely fits into one category. During the week it is the bike that gets you to work on time, through rain and traffic with a bag full of kit, and at the weekend it becomes a capable, loaded-up companion for a long route through the countryside, a family outing or a ride with no particular plan.

Its Reynolds 520 chromoly steel frame flexes subtly under load and smooths out road vibration over a full day in the saddle. The upright geometry is relaxed enough for everyday riding, with enough precision in the handling to keep longer distances enjoyable.

A full Shimano CUES 2x10-Speed drivetrain gives a wide range with close steps between gears, so the right cadence is easy to find on a long, loaded climb, and the 46-30T chainset with an 11-39T cassette covers everything from steep ascents to fast flats. Shimano MT-200 hydraulic disc brakes stop reliably and with little effort in the wet and the dry alike.

Lighting is Always Ready: A Shimano DH-3D32 dynamo hub powers a Busch & Müller Briq-S T Senso headlight (60 lux, with a standlight) and a Busch & Müller Toplight 2C rear light, so there is no charging to remember. The AtranVelo Delta AVS+ rear rack carries up to 27kg and takes Urban Iki AVS+ child seats, and puncture-resistant Vittoria Randonneur 700 x 40c tyres, full-length mudguards and a sturdy kickstand mean nothing needs adding before the first ride. The frame and fork carry a lifetime warranty.

Features

• Reynolds 520 chromoly steel frame - comfortable, durable and backed by a lifetime warranty
• Shimano CUES 2x10-Speed drivetrain - wide-range, reliable gearing
• Busch & Müller dynamo lighting - always charged, front and rear
• Shimano MT-200 hydraulic disc brakes - confident all-weather stopping
• AtranVelo AVS+ rear rack - 27kg capacity, compatible with Urban Iki AVS+ child seats
• Vittoria Randonneur 700 x 40c tyres - wide, comfortable and puncture resistant
• Full-length mudguards - no wet back and no muddy legs
• AtranVelo Parko HV kickstand - stands securely when loaded

Specification

Frame and Forks

• Frame: Ridgeback Reynolds 520 chromoly steel, 135mm OLD, quick release
• Forks: Ridgeback chromoly, 1-1 / 8" steerer, 100mm OLD, quick release
• Headset: EC34 / EC34
• Max Tyre Clearance: 45mm without mudguards

Drivetrain

• Crankset: Shimano CUES FC-U4010, 46-30T, 170mm (X-Small, Small, Medium), 175mm (Large, X-Large)
• Bottom Bracket: Shimano BSA 68mm
• Rear Derailleur: Shimano CUES RD-U6020, 10-Speed
• Front Derailleur: Shimano CUES FD-6010, 2-Speed
• Cassette: Shimano CUES LG300-10, 11-39T
• Chain: KMC XGlide, EPT coating
• Number of Gears: 20

Braking / Shifting

• Shifters: Shimano CUES SL-U6000, 2x10-Speed
• Brakes: Shimano MT-200 hydraulic disc, 180mm front and rear rotors

Wheels

• Wheel Size: 700c
• Rims: Amplitude GR700, 36h
• Hubs: Shimano DH-3D32 dynamo front, Shimano QB400 rear, 36H, 6-bolt
• Spokes: Double butted 14G stainless
• Tyres: Vittoria Randonneur 700 x 40c

Finishing Kit

• Handlebars: Amplitude aluminium, 660mm (X-Small), 680mm (Small, Medium), 700mm (Large, X-Large)
• Grips: Lock-on dual density
• Stem: Amplitude aluminium, 70mm
• Seatpost: Amplitude aluminium, 27.2 x 350mm
• Seat Clamp: Aluminium, 29.8mm
• Saddle: Madison Metro, 190 x 272mm
• Pedals: NW-303 flat

Extras

• Pannier Rack: AtranVelo Delta BS AVS+, 27kg limit
• Mudguards: Full length
• Front Light: Busch & Müller Briq-S T Senso, 60 lux, with standlight
• Rear Light: Busch & Müller Toplight 2C
• Dynamo: Shimano DH-3D32 front hub
• Kickstand: AtranVelo Parko HV
