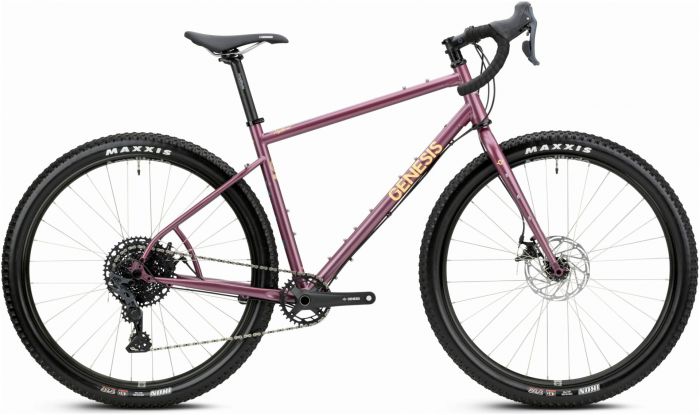

Genesis Vagabond 10 2026 Bike
| Brand | Genesis |
|---|---|
| Colour | Bohemian Raspberry |
| Suitable for | Everyone |
| Wheel Size | 29-inch |
Go ANYwhere
The revised Vagabond platform combined with a great new specification utilising the latest in gravel and adventure tech make the Vagabond 10 a superb entry point into rugged adventure riding.
Mountainbike tyres, a short stem and big brake rotors add to a confidence inspiring package so you can head off the beaten track with ease.
Features
Gravel Group
The Vagabond 10 delivers a massive gear range thanks to the microSHIFT Sword drivetrain. Featuring MTB-like ratios with an 11-48T cassette and a 34T chainring, the Vagabond 10 will conquer any climb.
Renowned Stopping Power
The TRP Spyre's dual piston actuated design combines the easy maintenence of a mechanical brake with the improved lever feel and stopping power from a hydraulic system.
Volume Up
Voluptuous 2.35" Maxxis Ikon tubeless ready tyres mounted to 35mm Amplitude G120 wheels make for a comfortable and capable ride on any terrain.
Thor's Hammer
Genesis' double-butted, cold-drawn, seamless, Mjolnir chromoly tubeset forms the bedrock of the Vagabond's incredibly durable and sublimely comfortable frame.
Specification
Frame and Forks
- Frame: Genesis Mjolnir CrMo, 148mm OLD, 12mm TA
- Forks: Genesis CrMo, 1-1/8" Steerer, 100mm OLD, 12mm TA
- Headset: EC34/EC44 w/Spacer
Drivetrain
- Crankset: Genesis FD04S, 34T, 170mm (XS-SM-MD), 175mm (LG-XL)
- Bottom Bracket: T47
- Rear Derailleur: MicroShift Sword RD-G7005 10-Speed
- Cassette: MicroShift Sword CS-G104, 11-48T
- Chain: KMC X10
Braking / Shifting
- Shifters: MicroShift Sword SB-G7000 1x10-Speed
- Brakes: TRP Spyre, 180mm / 160mm, Mechanical
Wheels
- Rims: Amplitude G-120 584x30 (XS-SM), 622x30 (MD-LG-XL), 32H
- Hubs: KT CRF612 - DHR1S5, 32H, 6-Bolt
- Spokes: Double Butted 14G Stainless
- Tyres: Maxxis Ikon TR, 27.5 x 2.35" (XS-SM), 29 x 2.35" (MD-LG-XL)
Finishing Kit
- Handlebars: Amplitude G-150, 440mm (XS-SM), 460mm (MD-LG), 480mm (X-Large)
- Bar Tape: Black Gel Tape
- Stem: Amplitude G-100, 60mm +/-6Deg
- Seatpost: Amplitude G-100, 31.6mm x 350mm (XS-SM), 31.6mm x 400mm (MD-LG-XL)
- Seat Clamp: Alloy, 34.1mm
- Saddle: Madison Flux Switch 142mm x 280mm
- Pedals: Not Included
